GASKET SET для Suzuki GSX-R1000 K6 - 2006 года выпуска

  • №
    Артикул
    Название

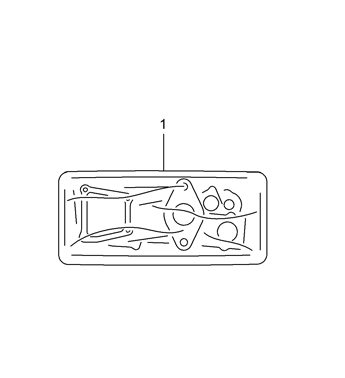

  • 1
    11403-41811 GASKET SET
    GASKET SET
  • 2
    11141-40F00 GASKET, CYLINDER HEAD (NOT SHOWN)
    GASKET, CYLINDER HEAD (NOT SHOWN)
  • 3
    11173-35F00 GASKET, CYLINDER HEAD COVER NO.1 (NOT SHOWN)
    GASKET, CYLINDER HEAD COVER NO.1 (NOT SHOWN)
  • 4
    11178-33E00 GASKET, CYLINDER HEAD COVER NO.2 (NOT SHOWN)
    GASKET, CYLINDER HEAD COVER NO.2 (NOT SHOWN)
  • 5
    11182-35F00 COVER, 2ND AIR PASSAGE (NOT SHOWN)
    COVER, 2ND AIR PASSAGE (NOT SHOWN)
  • 6
    09161-11008 WASHER, HEAD COVER (NOT SHOWN)
    WASHER, HEAD COVER (NOT SHOWN)
  • 7
    11482-40F00 GASKET, CLUTCH COVER (NOT SHOWN)
    GASKET, CLUTCH COVER (NOT SHOWN)
  • 8
    11491-33E02 GASKET, STARTER CLUTCH COVER (NOT SHOWN)
    GASKET, STARTER CLUTCH COVER (NOT SHOWN)
  • 9
    09280-33004 O RING, CRANKSHAFT HOLE PLUG (NOT SHOWN)
    O RING, CRANKSHAFT HOLE PLUG (NOT SHOWN)
  • 10
    11492-33E00 GASKET, STARTER IDLE GEAR CAP (NOT SHOWN)
    GASKET, STARTER IDLE GEAR CAP (NOT SHOWN)
  • 11
    11483-18G00 GASKET, MAGNETO COVER (NOT SHOWN)
    GASKET, MAGNETO COVER (NOT SHOWN)
  • 12
    11484-35F00 GASKET, BREATHER COVER (NOT SHOWN)
    GASKET, BREATHER COVER (NOT SHOWN)
  • 13
    12837-18G00 GASKET, TENSIONER ADJUSTER (NOT SHOWN)
    GASKET, TENSIONER ADJUSTER (NOT SHOWN)
  • 14
    14181-46E00 GASKET, EXHAUST PIPE (NOT SHOWN)
    GASKET, EXHAUST PIPE (NOT SHOWN)
  • 15
    09280-12012 O RING, MUFFLER FRONT (NOT SHOWN)
    O RING, MUFFLER FRONT (NOT SHOWN)
  • 16
    16491-35F00 O RING, OIL PUMP (NOT SHOWN)
    O RING, OIL PUMP (NOT SHOWN)
  • 17
    09280-19008 O RING, OIL STRAINER (NOT SHOWN)
    O RING, OIL STRAINER (NOT SHOWN)
  • 18
    15201-35F00 O RING, FUEL PUMP (NOT SHOWN)
    O RING, FUEL PUMP (NOT SHOWN)
