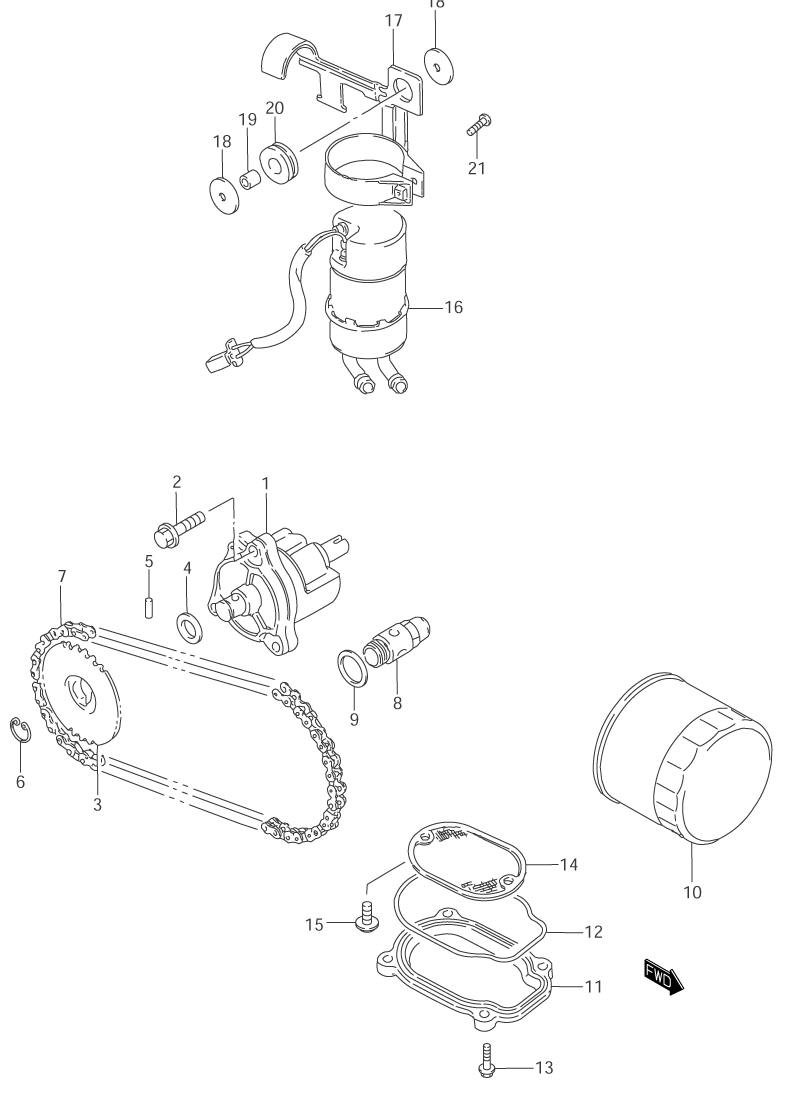

OIL PUMP - FUEL PUMP для Suzuki VS800GL K4 - 2004 года выпуска`
-
№АртикулНазвание
-
116400-38A01 PUMP ASSY., OILPUMP ASSY., OIL
-
201550-06253 BOLTBOLT
-
316331-38A10 SPROCKET, OIL PUMP DRIVENSPROCKET, OIL PUMP DRIVEN
-
409181-12158 WASHERWASHER
-
509261-05006 PINPIN
-
608331-31126 CIRCLIPCIRCLIP
-
716310-38A00 CHAIN, OIL PUMP DRIVECHAIN, OIL PUMP DRIVE
-
816440-24A01 VALVE ASSY., OIL RELIEFVALVE ASSY., OIL RELIEF
-
909168-16002 GASKETGASKET
-
1016510-03G00-X07 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1116523-38A00 CAP, OIL STRAINERCAP, OIL STRAINER
-
1216528-38A00 O-RINGO-RING
-
1301550-06203 BOLTBOLT
-
1416520-38A00 STRAINER, OILSTRAINER, OIL
-
1502112-75123 SCREWSCREW
-
1615100-38A10 PUMP ASSY., FUELPUMP ASSY., FUEL
-
1715110-38A10 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
18-209169-06016 WASHERWASHER
-
1909180-06082 SPACERSPACER
-
2009320-10014 CUSHIONCUSHION
-
2102142-04203 SCREWSCREW
