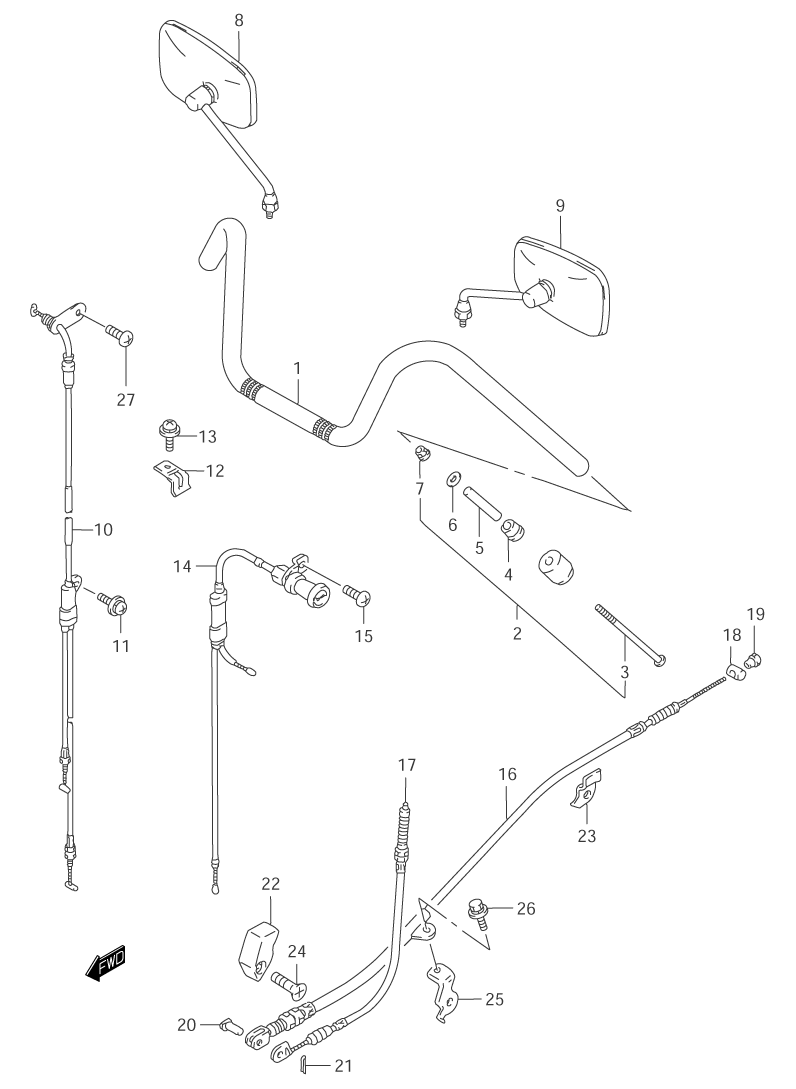

HANDLEBAR W/ CABLES - MIRRORS для Suzuki VS800GL K4 - 2004 года выпуска`
-
№АртикулНазвание
-
156111-38E00 HANDLEBARHANDLEBAR
-
156111-38E00 HANDLEBARHANDLEBAR
-
256200-48831 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
309127-06019 ...SCREW...SCREW
-
456272-26D01 ...EXPANDER...EXPANDER
-
556276-17D00 ...SPACER...SPACER
-
609160-06121 ...WASHER...WASHER
-
709159-06024 ...NUT...NUT
-
856500-38A41 MIRROR ASSY., REAR VIEW (RIGHT)MIRROR ASSY., REAR VIEW (RIGHT)
-
956600-38A41 MIRROR ASSY., REAR VIEW (LEFT)MIRROR ASSY., REAR VIEW (LEFT)
-
1058300-39E00 CABLE ASSY., THROTTLECABLE ASSY., THROTTLE
-
1102112-75123 SCREW, THROTTLE CABLESCREW, THROTTLE CABLE
-
1258621-38A00 CLAMP, THROTTLE CABLECLAMP, THROTTLE CABLE
-
1302112-75123 SCREWSCREW
-
1458400-38A14 CABLE ASSY., STARTERCABLE ASSY., STARTER
-
1502142-06103 SCREWSCREW
-
1658510-38A01 CABLE, REAR BRAKECABLE, REAR BRAKE
-
1758830-38A00 CABLE, STOP LAMP SWITCHCABLE, STOP LAMP SWITCH
-
1809209-13018 PIN, REARPIN, REAR
-
1909150-06014 NUTNUT
-
2009200-05001 PIN, FRONTPIN, FRONT
-
2104111-20158 COTTER PINCOTTER PIN
-
2258631-38A00 GUIDE, REAR BRAKE CABLEGUIDE, REAR BRAKE CABLE
-
2358721-38A00 CLAMP, REAR BRAKE CABLECLAMP, REAR BRAKE CABLE
-
2402122-06203 SCREW, GUIDESCREW, GUIDE
-
2543275-38A00 BRACKET, REAR BRAKE CABLEBRACKET, REAR BRAKE CABLE
-
2601580-06163 BOLTBOLT
-
2702142-05087 SCREWSCREW
