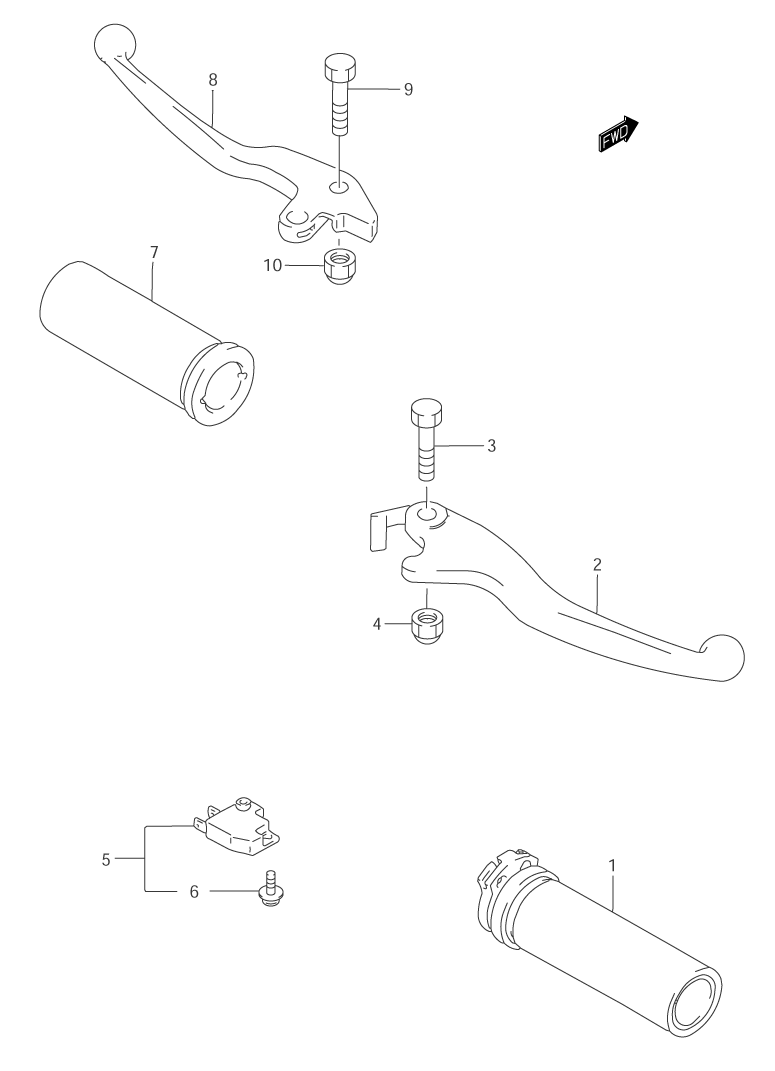

HANDLEBAR - LEVERS W/ GRIPS для Suzuki VS800GL K4 - 2004 года выпуска
-
№АртикулНазвание
-
157110-26D00 GRIP, THROTTLEGRIP, THROTTLE
-
257420-24B01 LEVER, BRAKELEVER, BRAKE
-
357431-38A10 BOLTBOLT
-
408319-21068 NUTNUT
-
557460-17C11 SWITCH ASSY., STOPSWITCH ASSY., STOP
-
657465-17C00 ...SCREW...SCREW
-
757210-26D00 GRIP, (LEFT)GRIP, (LEFT)
-
857621-38A02 LEVER, CLUTCHLEVER, CLUTCH
-
957431-38A10 BOLTBOLT
-
1008319-21068 NUTNUT
