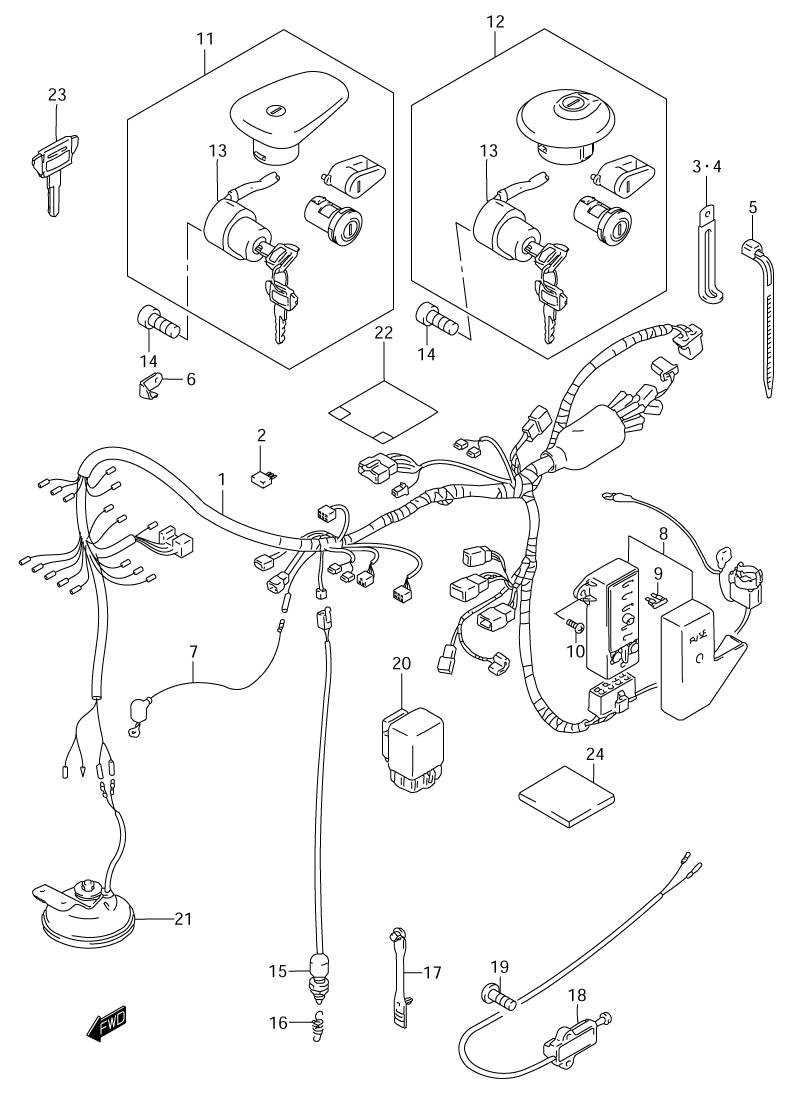

ELECTRICAL - WIRING HARNESS для Suzuki VS800GL K4 - 2004 года выпуска`
-
№АртикулНазвание
-
136610-39AJ0 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A00 ...DIODE...DIODE
-
309404-06431 CLAMP (L:80,T:0.7)CLAMP (L:80,T:0.7)
-
409404-06429 CLAMP (L:45)CLAMP (L:45)
-
5-109407-14403 CLAMP (L:125)CLAMP (L:125)
-
5-209407-18402 CLAMP (L:165)CLAMP (L:165)
-
636687-38A00 PLATE, COUPLER HOLDERPLATE, COUPLER HOLDER
-
736851-17E00 WIRE, WATER TEMP GAUGEWIRE, WATER TEMP GAUGE
-
836740-39A00 FUSE BOX ASSY.FUSE BOX ASSY.
-
9-109481-10101 ...FUSE (10A)...FUSE (10A)
-
9-209481-25103 ...FUSE (25A)...FUSE (25A)
-
1002142-06163 SCREWSCREW
-
1137100-38835 LOCK SETLOCK SET
-
1237000-38840 LOCK SET (CALIF. ONLY)LOCK SET (CALIF. ONLY)
-
1337110-38A04 ...SWITCH ASSY., IGNITION...SWITCH ASSY., IGNITION
-
1407130-05163 BOLT, IGNITIONBOLT, IGNITION
-
1537740-31D00 SWITCH ASSY., STOP LAMPSWITCH ASSY., STOP LAMP
-
1609443-06046 SPRINGSPRING
-
1709407-05403 CLAMP, SIDE STANDCLAMP, SIDE STAND
-
1837840-39A22 SWITCH ASSY., SIDE STANDSWITCH ASSY., SIDE STAND
-
1902112-76203 SCREWSCREW
-
2038740-24X50 RELAY ASSY., SIDE STANDRELAY ASSY., SIDE STAND
-
2138500-39A00 HORN ASSY.HORN ASSY.
-
2236618-15D20 COVER, HARNESSCOVER, HARNESS
-
23-137146-03A00 KEY, BLANK (TYPE C) (OPT)KEY, BLANK (TYPE C) (OPT)
-
23-237146-03A10 KEY, BLANK (TYPE D) (OPT)KEY, BLANK (TYPE D) (OPT)
-
23-337146-03A20 KEY, BLANK (TYPE E) (OPT)KEY, BLANK (TYPE E) (OPT)
-
23-437146-03A30 KEY, BLANK (TYPE F) (OPT)KEY, BLANK (TYPE F) (OPT)
-
2436920-02200 PROTECTORPROTECTOR
