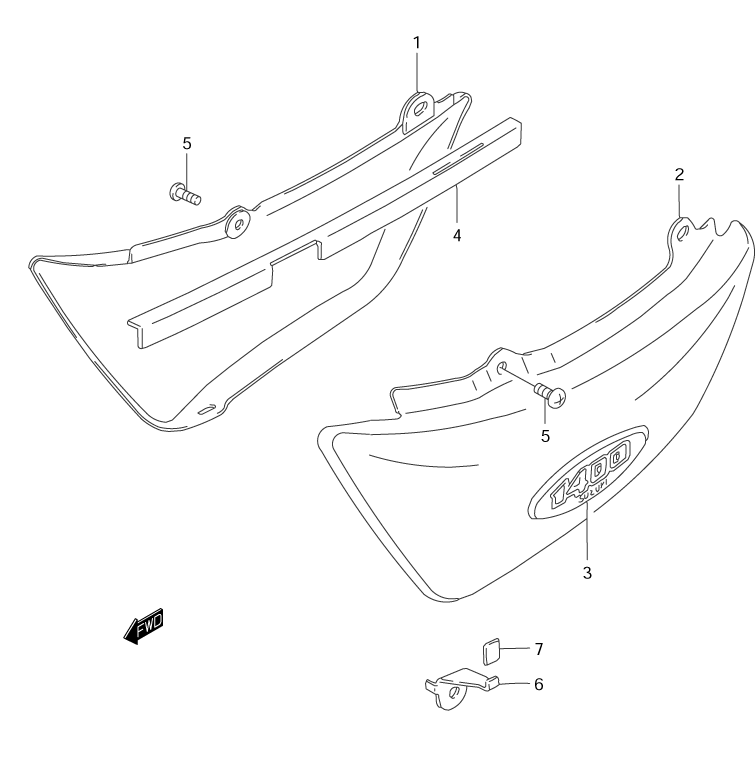

SIDE COVER для Suzuki VS-1400GLP K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-38B00-33J COVER, FRAME (RIGHT) (33J - BLACK)
    COVER, FRAME (RIGHT) (33J - BLACK)
  • 1-2
    47110-38B00-YD8 COVER, FRAME (RIGHT) (YD8 - SILVER)
    COVER, FRAME (RIGHT) (YD8 - SILVER)
  • 2-1
    47210-38B00-33J COVER, FRAME (LEFT) (33J - BLACK)
    COVER, FRAME (LEFT) (33J - BLACK)
  • 2-2
    47210-38B00-YD8 COVER, FRAME (LEFT) (YD8 - SILVER)
    COVER, FRAME (LEFT) (YD8 - SILVER)
  • 3-3
    68131-38B30-LD7 EMBLEM, FRAME COVER (FOR KT7)
    EMBLEM, FRAME COVER (FOR KT7)
  • 3-4
    68131-38B30-LD6 EMBLEM, FRAME COVER (FOR KT8)
    EMBLEM, FRAME COVER (FOR KT8)
  • 4
    47165-38B00 PROTECTOR
    PROTECTOR
  • 5
    02142-06123 SCREW
    SCREW
  • 6
    47171-38B00 HOOK, FRAME COVER (LEFT)
    HOOK, FRAME COVER (LEFT)
  • 7
    47175-38B00 CUSHION, HOOK
    CUSHION, HOOK
