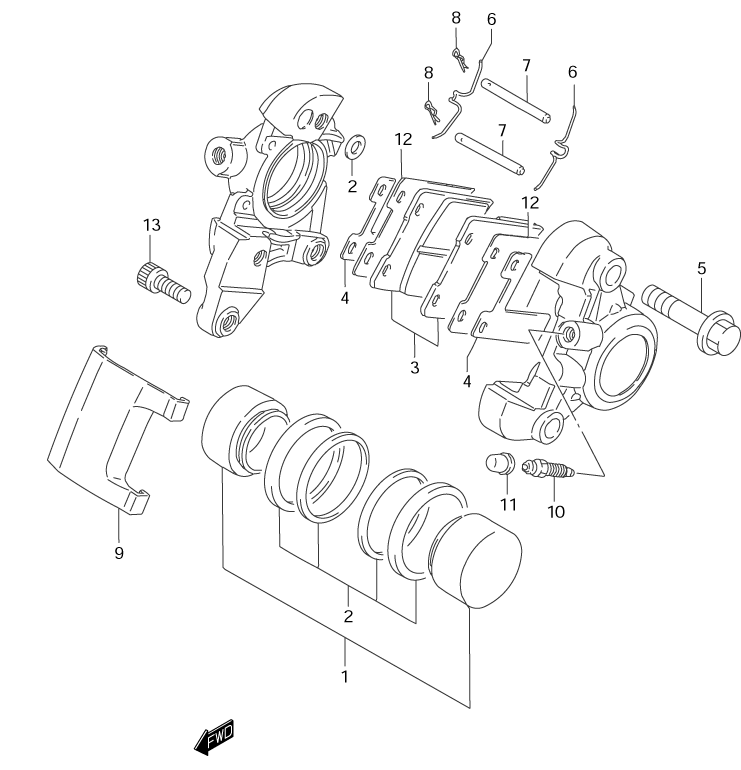

BRAKE - REAR CALIPER для Suzuki VS-1400GLP K3 - 2003 года выпуска`
-
№АртикулНазвание
-
69100-38B11 CALIPER, REAR ASSY.CALIPER, REAR ASSY.
-
169100-38850 ...PISTON SET...PISTON SET
-
269100-38830 ......SEAL SET, PISTON......SEAL SET, PISTON
-
369100-38820 ...PAD SET...PAD SET
-
459371-33420 ...SHIM...SHIM
-
559145-16700 ...BOLT...BOLT
-
659143-16700 ...SPRING...SPRING
-
769141-45000 ...PIN...PIN
-
869142-45000 ...CLIP...CLIP
-
959151-24A00 ...COVER...COVER
-
1059121-18410 ...BLEEDER...BLEEDER
-
1155156-66310 ...CAP...CAP
-
1259371-33410 ...SHIM...SHIM
-
1307130-10203 BOLTBOLT
