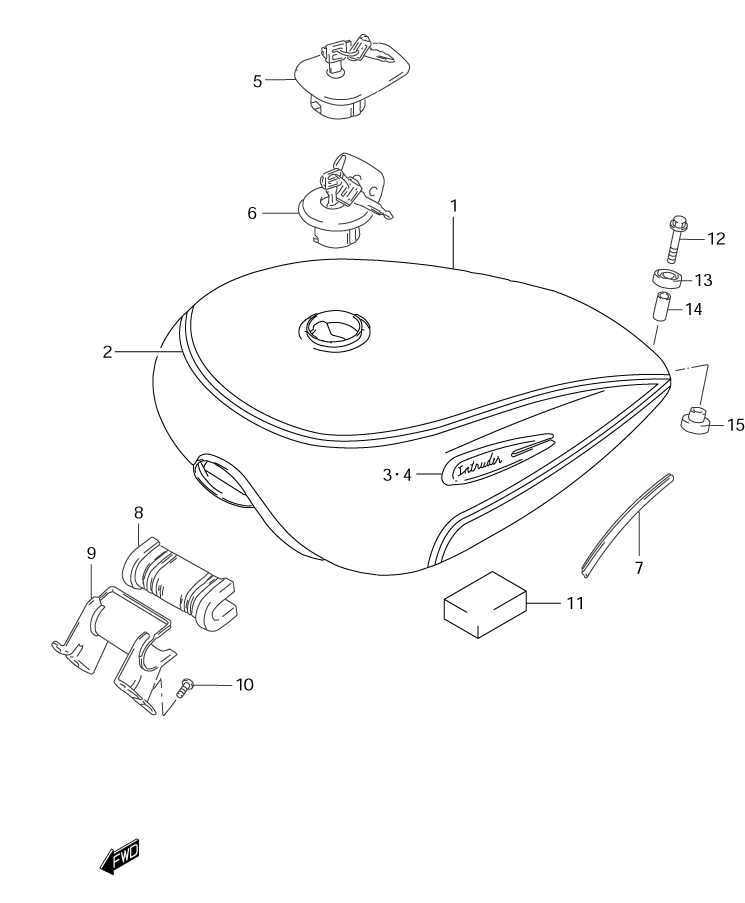

FUEL TANK для Suzuki VS-1400GLP K3 - 2003 года выпуска

№

Артикул

Название
1-1

49100-38BB0-KT7 TANK ASSY., FUEL

TANK ASSY., FUEL
1-2

49100-38BB0-KT8 TANK ASSY., FUEL

TANK ASSY., FUEL
1-3

49100-38BC0-KT7 TANK ASSY., FUEL (CALIF. ONLY)

TANK ASSY., FUEL (CALIF. ONLY)
1-4

49100-38BC0-KT8 TANK ASSY., FUEL (CALIF. ONLY)

TANK ASSY., FUEL (CALIF. ONLY)
2-1

68110-38BA0-LJ9 ...TAPE SET, FUEL TANK (FOR KT7)

...TAPE SET, FUEL TANK (FOR KT7)
2-2

68110-38BA0-LK1 ...TAPE SET, FUEL TANK (FOR KT8)

...TAPE SET, FUEL TANK (FOR KT8)
3

68111-38B00 EMBLEM, (RIGHT)

EMBLEM, (RIGHT)
4

68121-38B00 EMBLEM, (LEFT)

EMBLEM, (LEFT)
5-1

44200-38820 CAP SET, FUEL TANK

CAP SET, FUEL TANK
5-2

44200-38860 CAP SET, FUEL TANK (CHROME) (OPT) (EXCEPT CALIF.)

CAP SET, FUEL TANK (CHROME) (OPT) (EXCEPT CALIF.)
5-3

44200-38870 CAP SET, FUEL TANK (GOLD) (OPT) (EXCEPT CALIF.)

CAP SET, FUEL TANK (GOLD) (OPT) (EXCEPT CALIF.)
6

44200-24820 CAP SET, FUEL TANK (CALIF. ONLY)

CAP SET, FUEL TANK (CALIF. ONLY)
7

68241-04X50-00B MOLDING

MOLDING
8

44511-38B01 CUSHION, FRONT

CUSHION, FRONT
9

44250-38B00-019 BRACKET, FRONT (BLACK)

BRACKET, FRONT (BLACK)
10

02112-76163 SCREW

SCREW
11

44512-38B00 CUSHION, SIDE

CUSHION, SIDE
12

01550-06353 BOLT

BOLT
13

09320-14013 CUSHION

CUSHION
14

09180-06274 SPACER

SPACER
15

09320-10020 CUSHION

CUSHION
