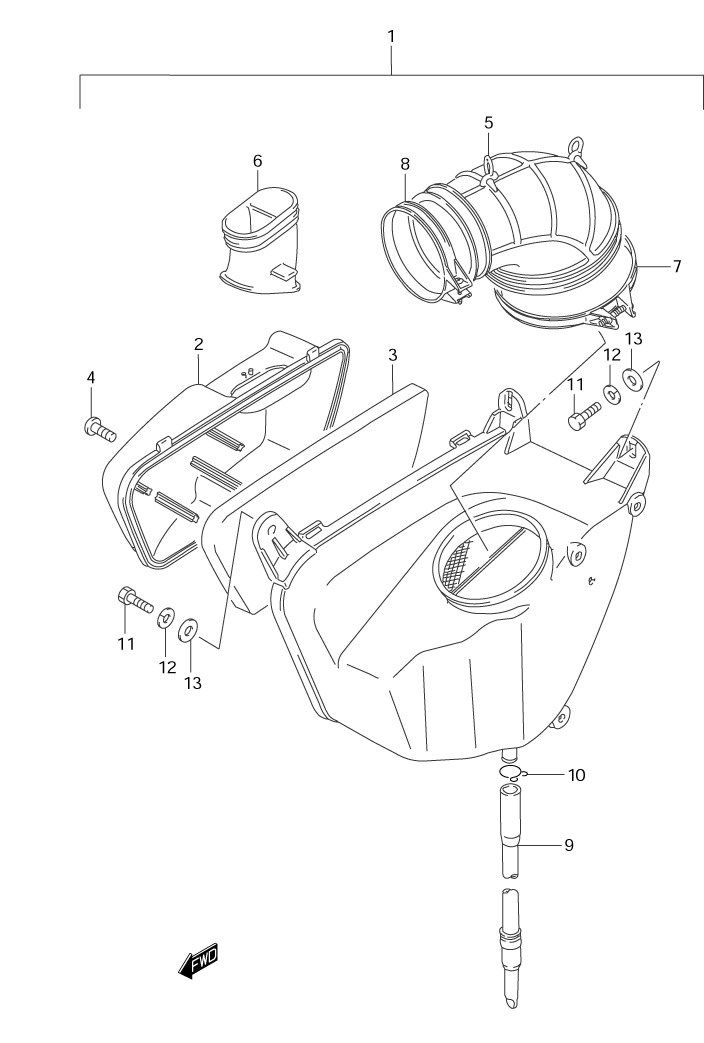

AIR CLEANER (REAR) для Suzuki VS-1400GLP K3 - 2003 года выпуска
-
№АртикулНазвание
-
113700-38B70 CLEANER, AIR REAR ASSY.CLEANER, AIR REAR ASSY.
-
213740-38B51 ...CAP...CAP
-
313781-38B60 ...FILTER...FILTER
-
402142-05163 ...SCREW...SCREW
-
513881-38B50 ...TUBE, OUTLET...TUBE, OUTLET
-
613891-38B50 ...TUBE, INLET...TUBE, INLET
-
709402-82202 ...CLAMP...CLAMP
-
809402-58208 ...CLAMP...CLAMP
-
913870-11458 ...TUBE, DRAIN...TUBE, DRAIN
-
1009401-13409 ...CLIP...CLIP
-
1101500-06207 BOLTBOLT
-
1208321-01067 LOCK WASHERLOCK WASHER
-
1309160-06019 WASHERWASHER
