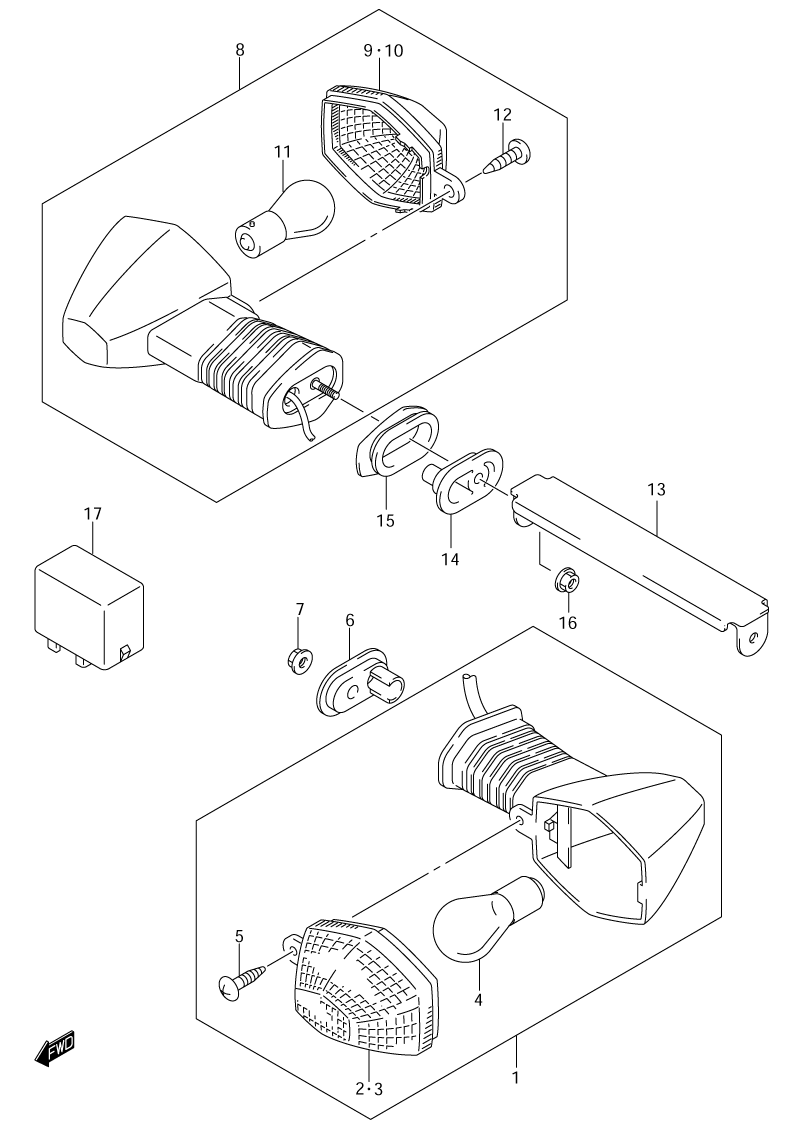

TURN SIGNAL ASSY. для Suzuki SV1000 K3 - 2003 года выпуска

№

Артикул

Название
1-1

35601-29F60 LAMP ASSY., FRONT TURN, (RIGHT)

LAMP ASSY., FRONT TURN, (RIGHT)
1-2

35602-29F60 LAMP ASSY., FRONT TURN, (LEFT)

LAMP ASSY., FRONT TURN, (LEFT)
2

35612-31F30 ...LENS, (RIGHT)

...LENS, (RIGHT)
3

35632-31F30 ...LENS, (LEFT)

...LENS, (LEFT)
4

09471-12045 ...BULB (12V,21W)

...BULB (12V,21W)
5

03242-04163 ...SCREW

...SCREW
6

35629-31F40 PLATE, FRONT TURNSIGNAL

PLATE, FRONT TURNSIGNAL
7

08316-10053 NUT

NUT
8-1

35603-16GC0 LAMP ASSY., REAR TURN, (RIGHT)

LAMP ASSY., REAR TURN, (RIGHT)
8-2

35604-16GC0 LAMP ASSY., REAR TURN, (LEFT)

LAMP ASSY., REAR TURN, (LEFT)
9

35632-31F30 ...LENS, (RIGHT)

...LENS, (RIGHT)
10

35612-31F30 ...LENS, (LEFT)

...LENS, (LEFT)
11

09471-12045 ...BULB (12V,21W)

...BULB (12V,21W)
12

03242-04163 ...SCREW

...SCREW
13

35620-16G00 BRACKET, REAR TURN SIGNAL

BRACKET, REAR TURN SIGNAL
14

35629-16G00 PLATE, REAR TURNSIGNAL

PLATE, REAR TURNSIGNAL
15

35647-16G00 CUSHION, REAR

CUSHION, REAR
16

08316-10053 NUT

NUT
17

38610-03F00 RELAY ASSY., TURNSIGNAL LAMP

RELAY ASSY., TURNSIGNAL LAMP
