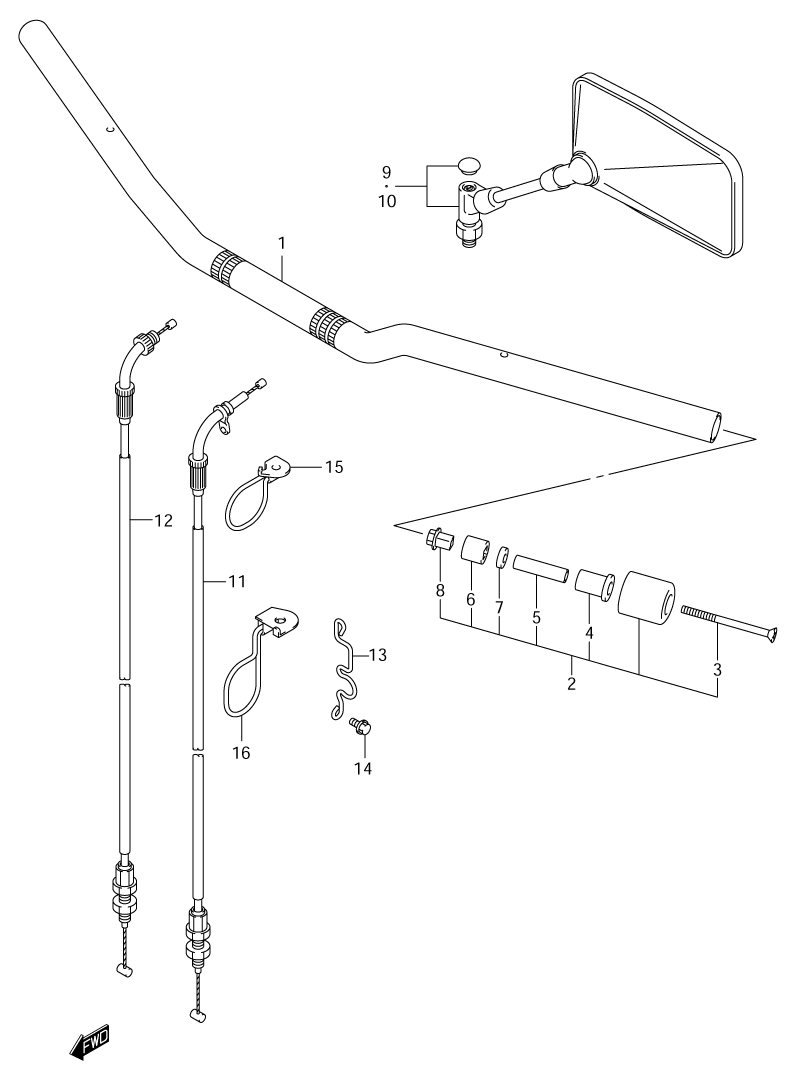

HANDLEBAR W/ CABLES для Suzuki SV1000 K3 - 2003 года выпуска

№

Артикул

Название
1

56111-16G10 HANDLEBAR

HANDLEBAR
2

56200-16840 BALANCER SET, HANDLEBAR

BALANCER SET, HANDLEBAR
3

09127-06018 ...SCREW

...SCREW
4

56272-06G00 ...EXPANDER, OUTER

...EXPANDER, OUTER
5

56276-17D00 ...SPACER

...SPACER
6

56272-10G00 ...EXPANDER, INNER

...EXPANDER, INNER
7

09160-06131 ...WASHER

...WASHER
8

56273-10G00 ...NUT

...NUT
9

56500-17G10 MIRROR ASSY., REAR VIEW (RIGHT)

MIRROR ASSY., REAR VIEW (RIGHT)
10

56600-17G10 MIRROR ASSY., REAR VIEW (LEFT)

MIRROR ASSY., REAR VIEW (LEFT)
11

58300-16GA0 CABLE ASSY., THROTTLE NO.1

CABLE ASSY., THROTTLE NO.1
12

58300-16GB0 CABLE ASSY., THROTTLE NO.2

CABLE ASSY., THROTTLE NO.2
13

58621-16GA0 GUIDE, CABLE

GUIDE, CABLE
14

01550-06123 BOLT

BOLT
15-1

58620-16G00 GUIDE, THROTTLE NO.1

GUIDE, THROTTLE NO.1
16

58620-16G20 GUIDE, THROTTLE NO.2

GUIDE, THROTTLE NO.2
