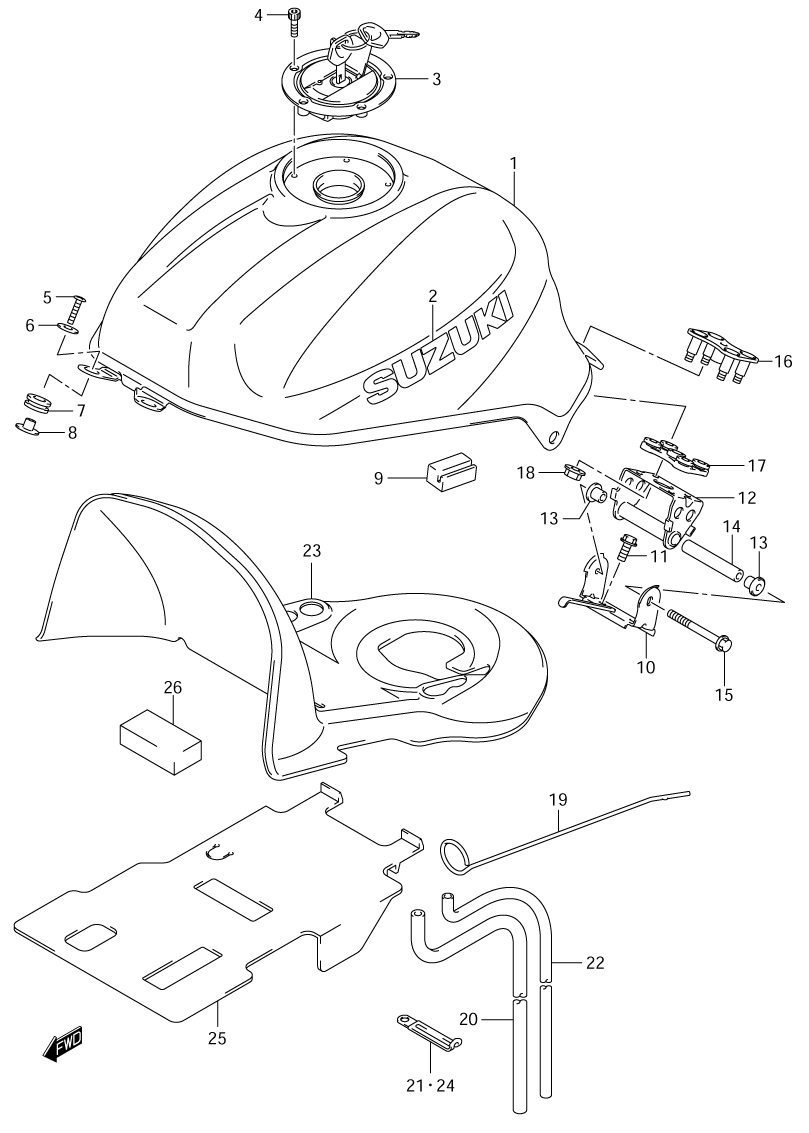

FUEL TANK для Suzuki SV1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
1-144100-16G01-YD8 TANK ASSY., FUEL (YD8 - SILVER) (EXCEPT CALIF.)TANK ASSY., FUEL (YD8 - SILVER) (EXCEPT CALIF.)
-
1-244100-16G01-33J TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF.)TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF.)
-
1-344100-16G01-YC2 TANK ASSY., FUEL (YC2 - BLUE) (EXCEPT CALIF.)TANK ASSY., FUEL (YC2 - BLUE) (EXCEPT CALIF.)
-
1-444100-16G21-YD8 TANK ASSY., FUEL (YD8 - SILVER) (CALIF. ONLY)TANK ASSY., FUEL (YD8 - SILVER) (CALIF. ONLY)
-
1-544100-16G21-33J TANK ASSY., FUEL (33J - BLACK) (CALIF. ONLY)TANK ASSY., FUEL (33J - BLACK) (CALIF. ONLY)
-
1-644100-16G21-YC2 TANK ASSY., FUEL (YC2 - BLUE) (CALIF. ONLY)TANK ASSY., FUEL (YC2 - BLUE) (CALIF. ONLY)
-
2-168111-47C10-YU8 ...EMBLEM (YU8 - GRAY) (FOR YD8 - SILVER)...EMBLEM (YU8 - GRAY) (FOR YD8 - SILVER)
-
2-268111-47C10-YD8 ...EMBLEM (YD8 - SILVER) (FOR 33J - BLACK, YC2 - BLUE)...EMBLEM (YD8 - SILVER) (FOR 33J - BLACK, YC2 - BLUE)
-
3-144200-16850 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
3-244200-16860 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
409106-05017 BOLTBOLT
-
509139-06029 SCREW, FRONTSCREW, FRONT
-
609160-06054 WASHERWASHER
-
744511-16G00 CUSHIONCUSHION
-
844512-16G00 SPACERSPACER
-
944541-16G00 CUSHION, SIDECUSHION, SIDE
-
10-144550-16G10 BRACKET, REAR (EXCEPT CALIF.)BRACKET, REAR (EXCEPT CALIF.)
-
10-244550-16G20 BRACKET, REAR (CALIF. ONLY)BRACKET, REAR (CALIF. ONLY)
-
1101550-08203 BOLTBOLT
-
1244530-16G10 BRACKET, CENTERBRACKET, CENTER
-
1344543-16G00 CUSHION, BRACKETCUSHION, BRACKET
-
1444561-35F00 SPACER, JOINTSPACER, JOINT
-
1509103-06060 BOLT, JOINTBOLT, JOINT
-
1644570-16G00 BRACKET, REAR UPPERBRACKET, REAR UPPER
-
1744542-16G00 CUSHIONCUSHION
-
1808319-31063 NUTNUT
-
1944574-16G00 STAY, FUEL TANKSTAY, FUEL TANK
-
2044423-16G10 HOSE, WATER DRAINHOSE, WATER DRAIN
-
2109404-06433 CLAMPCLAMP
-
2244424-16G00 HOSE, BREATHERHOSE, BREATHER
-
2344191-16G00 SHIELD, FUEL TANK HEATSHIELD, FUEL TANK HEAT
-
2409404-06433 CLAMPCLAMP
-
2544271-16G10 SHEET, HEAT RUBBERSHEET, HEAT RUBBER
-
2644545-16G00 CUSHION, FUEL TANKCUSHION, FUEL TANK
