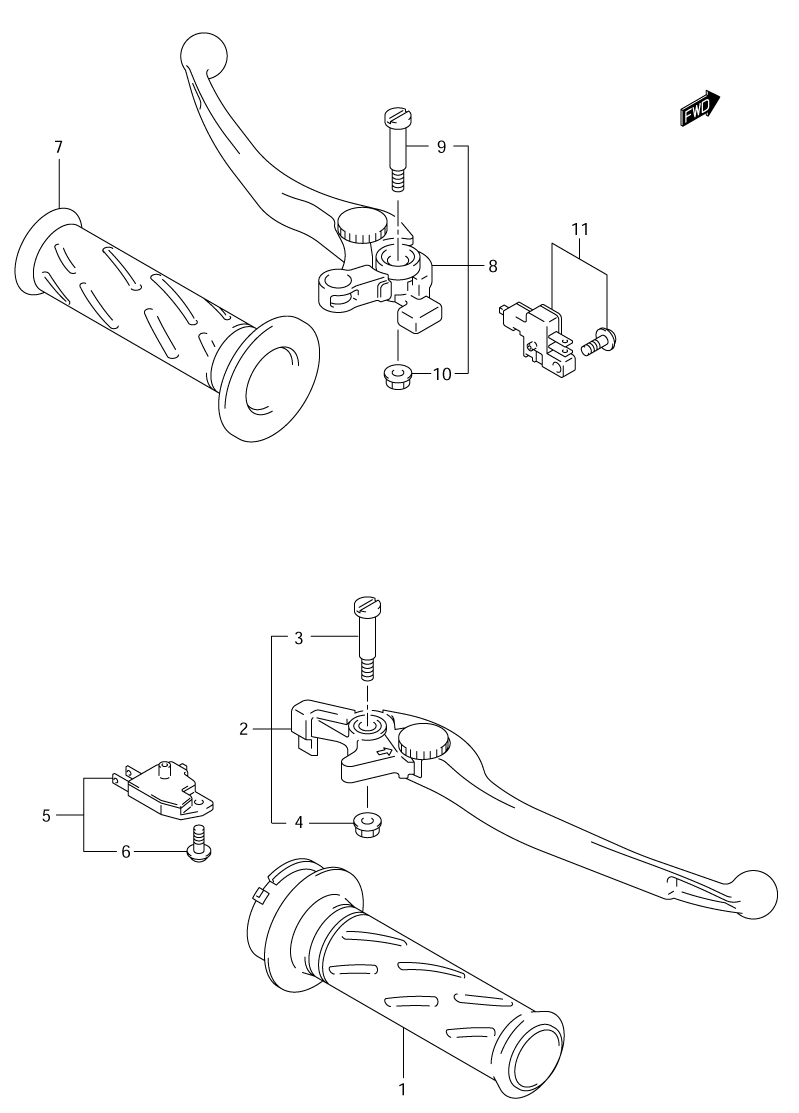

HANDLEBAR - LEVERS для Suzuki SV1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
157110-46E01 GRIP, THROTTLEGRIP, THROTTLE
-
257300-33E01 LEVER ASSY., BRAKELEVER ASSY., BRAKE
-
357431-17C00 ...BOLT, PIVOT...BOLT, PIVOT
-
408316-10063 ...NUT...NUT
-
557460-17C00 SWITCH ASSY., STOPSWITCH ASSY., STOP
-
657465-17C00 ...SCREW...SCREW
-
757211-22D01 GRIP, (LEFT)GRIP, (LEFT)
-
857500-24F00 LEVER ASSY., CLUTCHLEVER ASSY., CLUTCH
-
957431-17C00 ...BOLT, PIVOT...BOLT, PIVOT
-
1008316-10063 ...NUT...NUT
-
1157560-02FA0 SWITCH ASSY., CLUTCHSWITCH ASSY., CLUTCH
