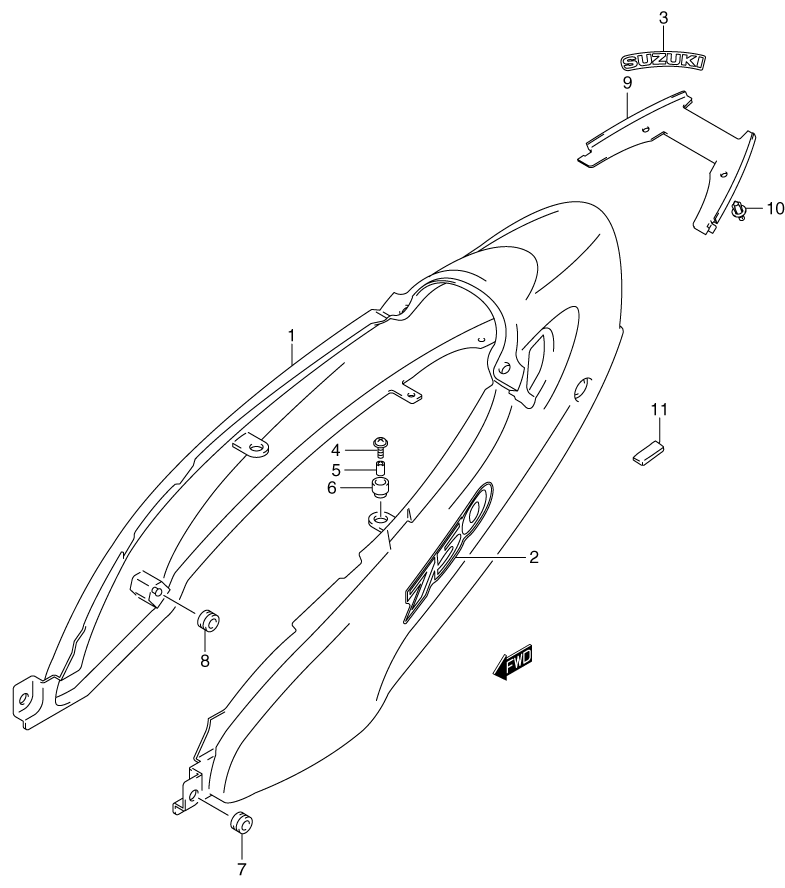

SIDE COVER для Suzuki GSX750F K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-08F80-33J COVER, FRAME (33J - BLACK)
    COVER, FRAME (33J - BLACK)
  • 1-2
    47110-08F80-YU8 COVER, FRAME (YU8 - GRAY)
    COVER, FRAME (YU8 - GRAY)
  • 2-1
    68131-08F60-LT5 ...EMBLEM (LT5 - GRAY/SILVER/BLACK) (FOR 33J - BLACK)
    ...EMBLEM (LT5 - GRAY/SILVER/BLACK) (FOR 33J - BLACK)
  • 2-2
    68131-08F60-LT6 ...EMBLEM (LT6 - BLACK/SILVER/GRAY) (FOR YU8 - GRAY)
    ...EMBLEM (LT6 - BLACK/SILVER/GRAY) (FOR YU8 - GRAY)
  • 3-1
    68131-39F00-YD8 ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR 33J - BLACK)
    ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR 33J - BLACK)
  • 3-2
    68131-39F00-33J ...EMBLEM, "SUZUKI" (33J - BLACK) (FOR YU8 - GRAY)
    ...EMBLEM, "SUZUKI" (33J - BLACK) (FOR YU8 - GRAY)
  • 4
    09136-06105 SCREW (UPPER)
    SCREW (UPPER)
  • 5
    09180-06286 SPACER
    SPACER
  • 6
    09320-10045 CUSHION
    CUSHION
  • 7
    09320-08028 CUSHION, (FRONT)
    CUSHION, (FRONT)
  • 8
    09320-08018 CUSHION, CENTER
    CUSHION, CENTER
  • 9
    47321-08FA0 COVER, (LOWER)
    COVER, (LOWER)
  • 10
    09409-08308-5ES CLIP (BLACK)
    CLIP (BLACK)
  • 11
    44894-24A00 CUSHION, (REAR)
    CUSHION, (REAR)
