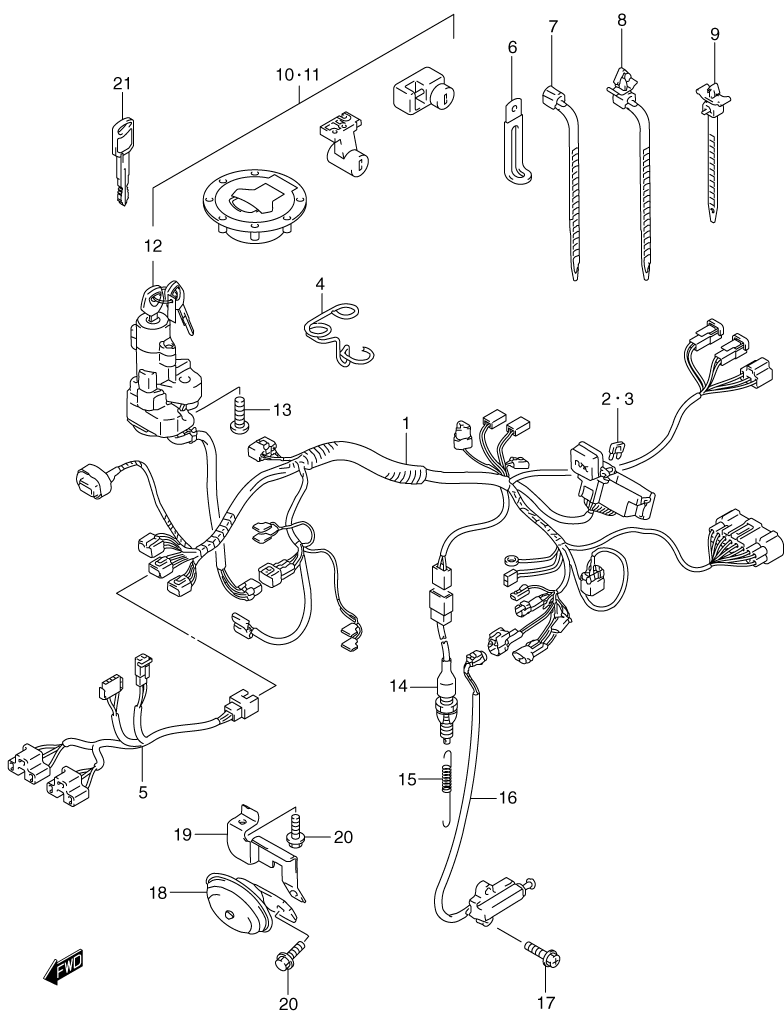

ELECTRICAL - WIRING HARNESS для Suzuki GSX750F K3 - 2003 года выпуска

№

Артикул

Название
1

36610-08FA0 HARNESS, WIRING NO.1

HARNESS, WIRING NO.1
2

09481-10501 ...FUSE (10A)

...FUSE (10A)
3

09481-15501 ...FUSE (15A)

...FUSE (15A)
4

36619-08F00 GUIDE, WIRING HARNESS

GUIDE, WIRING HARNESS
5

36620-08FA0 HARNESS, WIRING NO.2

HARNESS, WIRING NO.2
6

36853-08F00 WIRE, TPS LEAD

WIRE, TPS LEAD
7

09404-06435 CLAMP (L:135)

CLAMP (L:135)
8-1

09407-14403 CLAMP (L:125)

CLAMP (L:125)
8-2

09407-18402 CLAMP (L:165)

CLAMP (L:165)
9-1

09407-11402 CLAMP (L:90)

CLAMP (L:90)
9-2

09407-14408 CLAMP (L:120)

CLAMP (L:120)
10

37105-33850 LOCK SET (EXCEPT CALIF.)

LOCK SET (EXCEPT CALIF.)
11

37103-33820 LOCK SET (CALIF. ONLY)

LOCK SET (CALIF. ONLY)
12

37100-33E20 ...LOCK ASSY. STEERING

...LOCK ASSY. STEERING
13

09139-08016 SCREW

SCREW
14

37740-19F00 SWITCH ASSY. STOP LAMP

SWITCH ASSY. STOP LAMP
15

09443-06005 SPRING

SPRING
16

37840-44X50 SWITCH ASSY. SIDE STAND

SWITCH ASSY. SIDE STAND
17

02162-06163 BOLT

BOLT
18

38500-08F10 HORN ASSY.

HORN ASSY.
19

38590-08F00 BRACKET, HORN

BRACKET, HORN
20

01550-08123 BOLT, HORN

BOLT, HORN
21

37146-33E00 KEY, BLANK (OPT)

KEY, BLANK (OPT)
