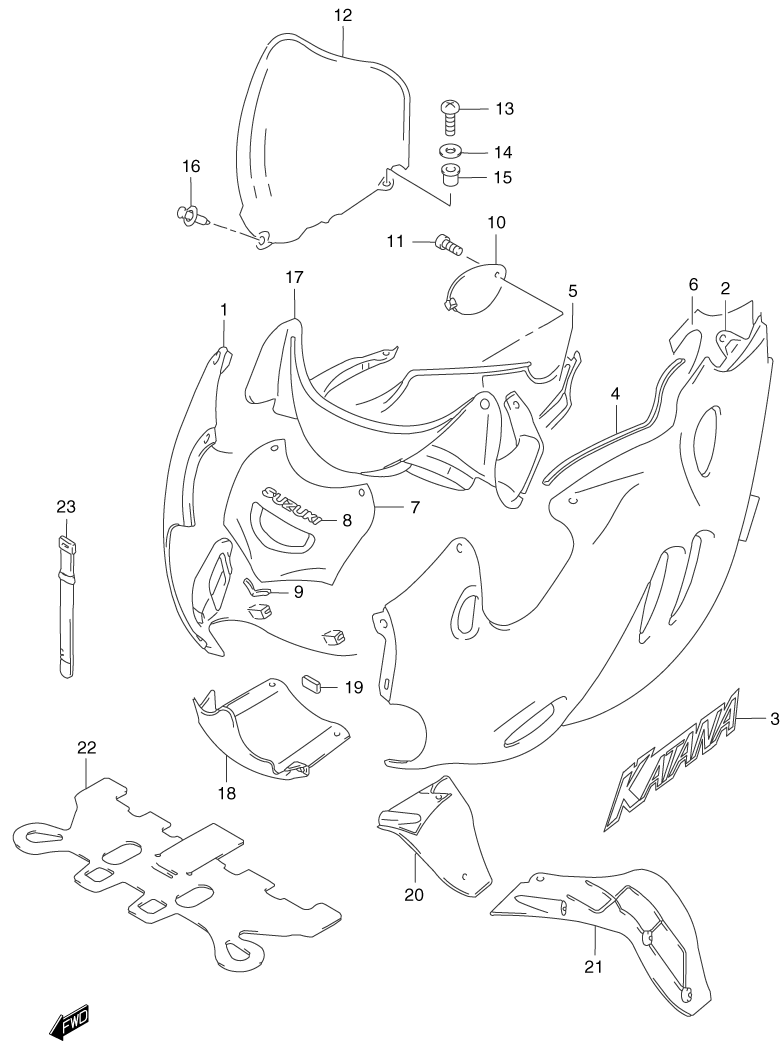

COWLING BODY для Suzuki GSX750F K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94403-08FQ0-33J COWL ASSY. SIDE (RIGHT) (33J - BLACK)
    COWL ASSY. SIDE (RIGHT) (33J - BLACK)
  • 1-2
    94403-08FQ0-YU8 COWL ASSY. SIDE (RIGHT) (YU8 - GRAY)
    COWL ASSY. SIDE (RIGHT) (YU8 - GRAY)
  • 2-1
    94404-08FQ0-33J COWL ASSY. SIDE (LEFT) (33J - BLACK) (EXCEPT CALIF.)
    COWL ASSY. SIDE (LEFT) (33J - BLACK) (EXCEPT CALIF.)
  • 2-2
    94404-08FQ0-YU8 COWL ASSY. SIDE (LEFT) (YU8 - GRAY) (EXCEPT CALIF.)
    COWL ASSY. SIDE (LEFT) (YU8 - GRAY) (EXCEPT CALIF.)
  • 2-3
    94404-08FR0-33J COWL ASSY. SIDE (LEFT) (33J - BLACK) (CALIF.ONLY)
    COWL ASSY. SIDE (LEFT) (33J - BLACK) (CALIF.ONLY)
  • 2-4
    94404-08FR0-YU8 COWL ASSY. SIDE (LEFT) (YU8 - GRAY) (CALIF.ONLY)
    COWL ASSY. SIDE (LEFT) (YU8 - GRAY) (CALIF.ONLY)
  • 3-1
    68681-08F60-LT7 ...EMBLEM, KATANA (LT7 - SILVER/GRAY/GOLDBLACK) (FOR 33J - BLACK)
    ...EMBLEM, KATANA (LT7 - SILVER/GRAY/GOLDBLACK) (FOR 33J - BLACK)
  • 3-2
    68681-08F60-LT8 ...EMBLEM, KATANA (LT8 - SILVER/BLACK/GOLD/GRAY) (FOR YU8 - GRAY)
    ...EMBLEM, KATANA (LT8 - SILVER/BLACK/GOLD/GRAY) (FOR YU8 - GRAY)
  • 4
    94631-44110 ...MOLDING
    ...MOLDING
  • 5
    94439-08F00 ...SHIELD, SIDE (RIGHT)
    ...SHIELD, SIDE (RIGHT)
  • 6
    94449-08F00 ...SHIELD, SIDE (LEFT)
    ...SHIELD, SIDE (LEFT)
  • 7-1
    94410-08F00-33J PANEL (CENTER) (UPPER) (33J - BLACK)
    PANEL (CENTER) (UPPER) (33J - BLACK)
  • 7-2
    94410-08F00-YU8 PANEL (CENTER) (UPPER) (YU8 - GRAY)
    PANEL (CENTER) (UPPER) (YU8 - GRAY)
  • 8-1
    68185-05C10-YD8 ...EMBLEM, SUZUKI (YD8 - SILVER) (FOR 33J - BLACK)
    ...EMBLEM, SUZUKI (YD8 - SILVER) (FOR 33J - BLACK)
  • 8-2
    68185-05C10-33J ...EMBLEM, SUKIKI (33J - BLACK) (FOR YU8 - GRAY)
    ...EMBLEM, SUKIKI (33J - BLACK) (FOR YU8 - GRAY)
  • 9
    94413-08F00 ...CUSHION, (UPPER)
    ...CUSHION, (UPPER)
  • 10-1
    94435-08F00-33J LID, OIL (33J - BLACK)
    LID, OIL (33J - BLACK)
  • 10-2
    94435-08F00-YU8 LID, OIL (YU8 - GRAY)
    LID, OIL (YU8 - GRAY)
  • 11
    09139-06030 SCREW
    SCREW
  • 12
    94611-08F00 WIND SCREEN
    WIND SCREEN
  • 13
    09139-05025 SCREW
    SCREW
  • 14
    08322-01053 WASHER
    WASHER
  • 15
    09159-05019 NUT
    NUT
  • 16
    09409-08308-5ES CLIP (BLACK)
    CLIP (BLACK)
  • 17
    94421-08F00 PANEL, METER
    PANEL, METER
  • 18-1
    94412-08F00-33J PANEL (CENTER) (LOWER) (33J - BLACK)
    PANEL (CENTER) (LOWER) (33J - BLACK)
  • 18-2
    94412-08F00-YU8 PANEL (CENTER) (LOWER) (YU8 - GRAY)
    PANEL (CENTER) (LOWER) (YU8 - GRAY)
  • 19
    94414-08F00 CUSHION (LOWER)
    CUSHION (LOWER)
  • 20
    94461-08F10 PANEL, INNER (RIGHT)
    PANEL, INNER (RIGHT)
  • 21
    94462-08F10 PANEL, INNER (LEFT)
    PANEL, INNER (LEFT)
  • 22
    94451-20C01 PLATE, AIR GUIDE
    PLATE, AIR GUIDE
  • 23-1
    09407-18402 CLAMP (L:165)
    CLAMP (L:165)
  • 23-2
    09407-25401 CLAMP (L:235)
    CLAMP (L:235)
