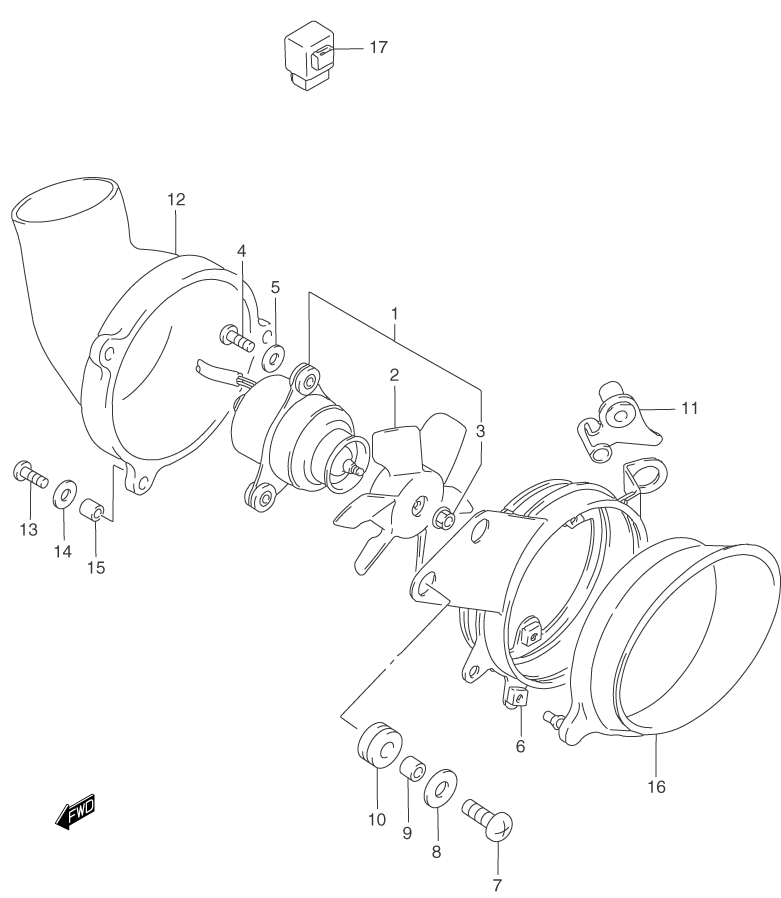

COOLING FAN (CALIF. ONLY) для Suzuki GSX750F K3 - 2003 года выпуска
-
№АртикулНазвание
-
117100-48B00 FAN ASSY. COOLINGFAN ASSY. COOLING
-
217120-48B00 ...FAN...FAN
-
308316-10033 ...NUT...NUT
-
402112-04163 SCREWSCREW
-
509160-04022 WASHERWASHER
-
617250-20C00 SHROUD, FANSHROUD, FAN
-
702142-06203 SCREWSCREW
-
809160-06056 WASHERWASHER
-
909180-06257 SPACERSPACER
-
1009320-09036 CUSHIONCUSHION
-
1117260-20C00 BRACKET, FAN SHROUDBRACKET, FAN SHROUD
-
1217271-20C00 DUCT, FAN COOLING,NO.1DUCT, FAN COOLING,NO.1
-
1302112-04123 SCREWSCREW
-
1409160-04022 WASHERWASHER
-
1509180-04301 SPACERSPACER
-
1617272-08F00 DUCT, FAN COOLING,NO.2DUCT, FAN COOLING,NO.2
-
1738870-48B00 CONTROLLER ASSY. FAN MOTORCONTROLLER ASSY. FAN MOTOR
