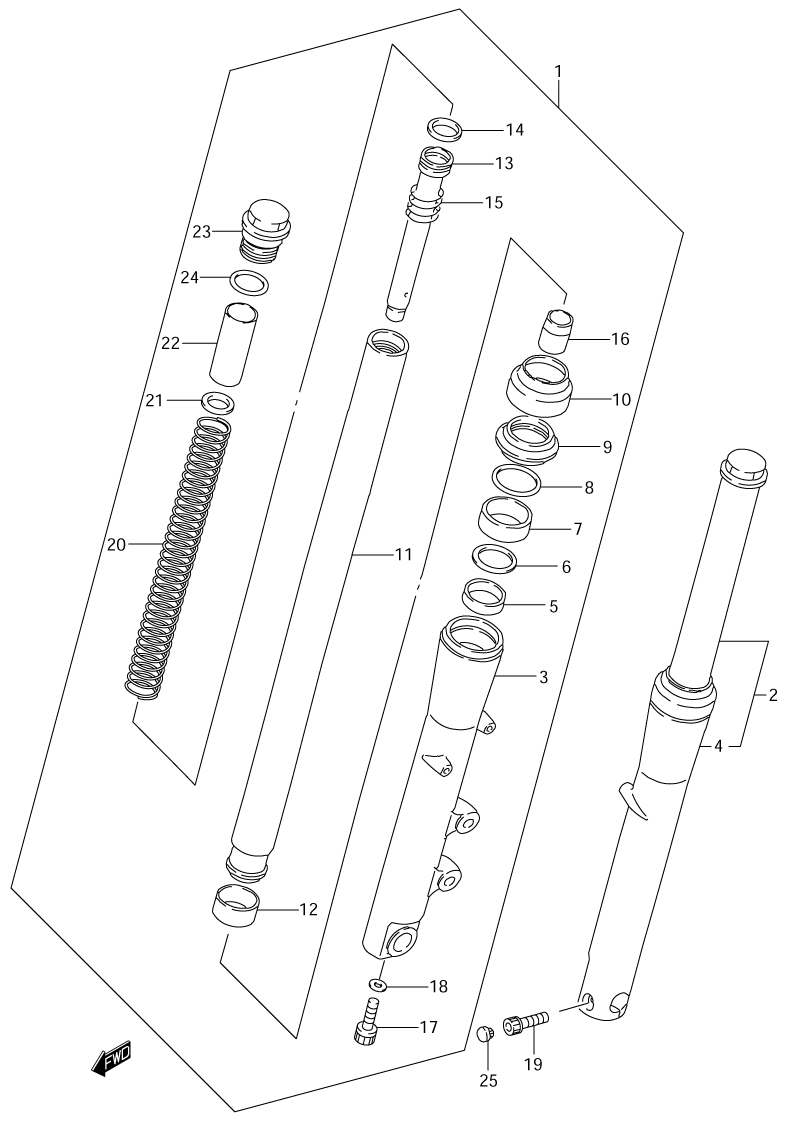

SUSPENSION - FRONT FORK для Suzuki VS800GL K1 - 2001 года выпуска
-
№АртикулНазвание
-
151103-39A70 DAMPER ASSY., FRONT FORK (RIGHT)DAMPER ASSY., FRONT FORK (RIGHT)
-
251104-39A70 DAMPER ASSY., FRONT FORK (LEFT)DAMPER ASSY., FRONT FORK (LEFT)
-
351131-39A70 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
451141-39A70 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
551152-39A40 ...BUSH, GUIDE...BUSH, GUIDE
-
651168-39A00 ...SPACER, SEAL...SPACER, SEAL
-
751153-19D00 ...OIL SEAL...OIL SEAL
-
851156-32B00 ...RING, STOPPER...RING, STOPPER
-
951173-19D00 ...DUST SEAL...DUST SEAL
-
1051572-38B00 ...COVER, CASE...COVER, CASE
-
1151110-39A41 ...TUBE, INNER...TUBE, INNER
-
1251121-39A40 ...BUSH, SLIDE...BUSH, SLIDE
-
1351146-39A00 ...PIPE, SEAT...PIPE, SEAT
-
1451196-32B00 ...RING, PISTON...RING, PISTON
-
1551177-32B00 ...SPRING, REBOUND...SPRING, REBOUND
-
1651195-38B00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1751147-48130 ...BOLT...BOLT
-
1851148-36011 ...GASKET...GASKET
-
1907130-08357 ...BOLT, (LEFT)...BOLT, (LEFT)
-
2051171-39A00 ...SPRING...SPRING
-
2151172-32B00 ...JOINT, SPRING...JOINT, SPRING
-
2251176-39A00 ...SPACER, SPRING...SPACER, SPRING
-
2351351-39A00 ...BOLT, INNER TUBE...BOLT, INNER TUBE
-
2451117-39A00 ...O-RING...O-RING
-
2509250-06009 CAPCAP
