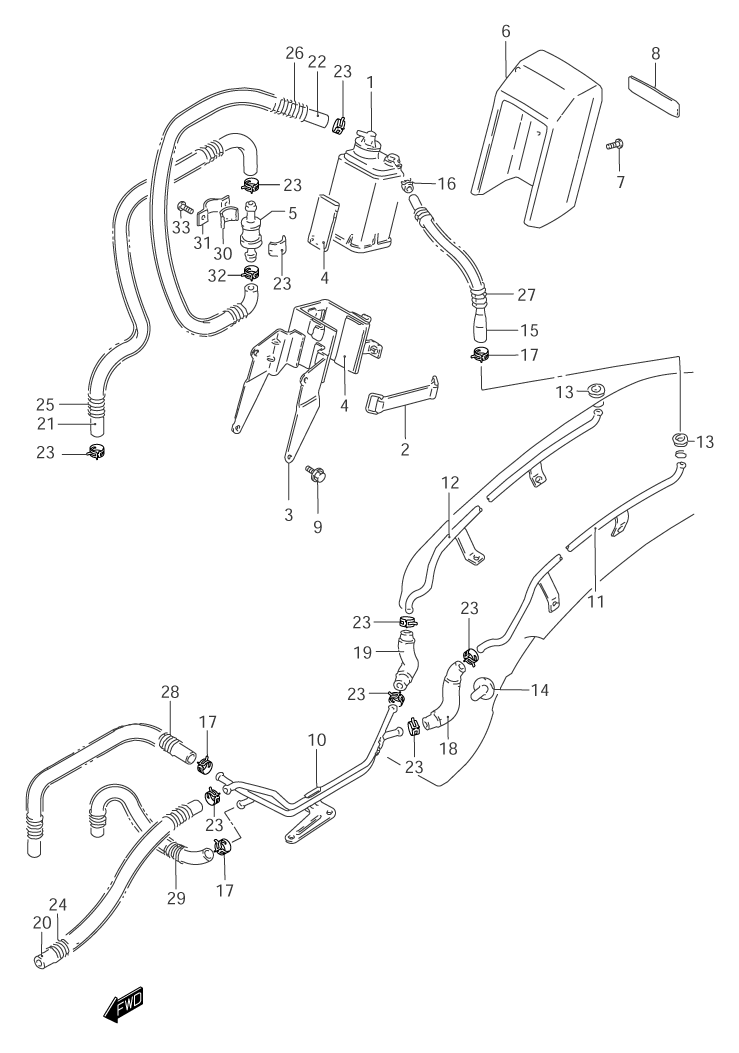

CANISTER (CALIF ONLY) для Suzuki VS800GL K1 - 2001 года выпуска

№

Артикул

Название
1

17210-38A00 CANISTER ASSY.

CANISTER ASSY.
2

09462-00034 BAND

BAND
3

44880-38A12 PLATE, CANISTER FITTING

PLATE, CANISTER FITTING
4

44885-38A00 ...CUSHION, FITTING

...CUSHION, FITTING
5

44894-24A00 ...CUSHION

...CUSHION
6

44991-38A10 COVER, CANISTER

COVER, CANISTER
7

02122-05123 SCREW, COVER

SCREW, COVER
8

68261-38A30 EMBLEM

EMBLEM
9

01547-06167 BOLT

BOLT
10

44940-38A00 PIPE, CANISTER JOINT FRONT

PIPE, CANISTER JOINT FRONT
11

44950-38A10 PIPE, CANISTER JOINT REAR PAR

PIPE, CANISTER JOINT REAR PAR
12

44960-38A10 PIPE, CANISTER JOINT REAR CHG

PIPE, CANISTER JOINT REAR CHG
13

09308-05020 GROMMET

GROMMET
14

09308-05004 GROMMET

GROMMET
15

44911-43500 HOSE, CANISTER/JOINT PIPE PAR

HOSE, CANISTER/JOINT PIPE PAR
16

09401-06405 CLIP, NO.2

CLIP, NO.2
17

09401-08411 CLIP, NO.1

CLIP, NO.1
18

44340-38A00 HOSE, NO.6 PARG

HOSE, NO.6 PARG
19

44330-38A00 HOSE, NO.2 CHG

HOSE, NO.2 CHG
20

09355-54116-600 HOSE, NO.1 CHG (L:600->240)

HOSE, NO.1 CHG (L:600->240)
21

09343-05414 HOSE, NO.3 CHG (L:800->215)

HOSE, NO.3 CHG (L:800->215)
22

09343-05414 HOSE, NO.4 CHG (L:800->155)

HOSE, NO.4 CHG (L:800->155)
23

09401-11413 CLIP

CLIP
24

09440-13043 SPRING, NO.1

SPRING, NO.1
25

09440-13044 SPRING, NO.2

SPRING, NO.2
26

09440-13043 SPRING, NO.3

SPRING, NO.3
27

09440-10031 SPRING, NO.4

SPRING, NO.4
28

09440-10022 SPRING, NO.5

SPRING, NO.5
29

09440-10019 SPRING, NO.6

SPRING, NO.6
30

44240-38A00 VALVE, FUEL TANK BREATHER

VALVE, FUEL TANK BREATHER
31

44892-24A00 PLATE, NO.2

PLATE, NO.2
32

44894-24A00 ...CUSHION

...CUSHION
33

02142-04103 SCREW

SCREW
