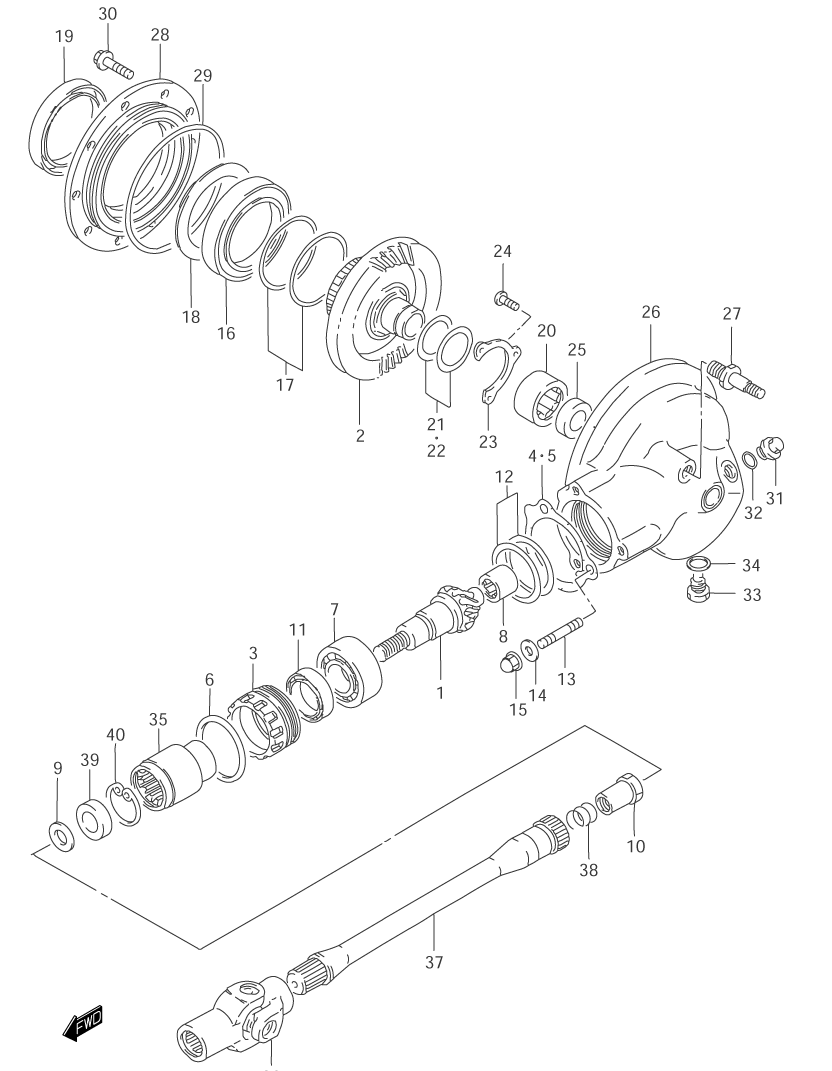

DRIVE SHAFT W/ FINAL DRIVE GEAR для Suzuki VS800GL K1 - 2001 года выпуска`

№

Артикул

Название
27300-38836 GEAR & CASE SET, FINAL BEVEL

GEAR & CASE SET, FINAL BEVEL

0 ₽
1

27311-38A00 ...GEAR, DRIVE BEVEL (NT:11)

...GEAR, DRIVE BEVEL (NT:11)

42 600 ₽
2

27320-45C01 ...GEAR, DRIVEN BEVEL (NT:34)

...GEAR, DRIVEN BEVEL (NT:34)

66 270 ₽
3

27312-38A00 ...STOPPER, BEARING

...STOPPER, BEARING

10 600 ₽
4

27313-38A00 ...PLATE

...PLATE

1 050 ₽
5

27313-38A10 ...PLATE

...PLATE

1 050 ₽
6

09280-62002 ...O-RING (D:1.9,ID:61.6)

...O-RING (D:1.9,ID:61.6)

550 ₽
7

09267-30005 ...BEARING (30X62X23.8)

...BEARING (30X62X23.8)

17 100 ₽
8

09263-17028 ...BEARING (17X32X16)

...BEARING (17X32X16)

6 720 ₽
9

09160-16029 ...WASHER (16X29X4)

...WASHER (16X29X4)

910 ₽
10

09159-16010 ...NUT

...NUT

1 690 ₽
11

09283-38009 ...OIL SEAL (38X54X6)

...OIL SEAL (38X54X6)

2 580 ₽
12

27445-38810 ...SHIM SET, FINAL

...SHIM SET, FINAL

4 030 ₽
13

09108-10095 ...STUD BOLT

...STUD BOLT

790 ₽
14

09164-10008 ...LOCK WASHER

...LOCK WASHER

290 ₽
15

09159-10026 ...NUT

...NUT

1 080 ₽
16

09262-70001 ...BEARING, (RIGHT) (70X110X13)

...BEARING, (RIGHT) (70X110X13)

20 160 ₽
17

27327-34810 ...SHIM SET, DRIVE GEAR BEARING

...SHIM SET, DRIVE GEAR BEARING

5 500 ₽
18

27328-34200 ...PLATE

...PLATE

1 050 ₽
19

09289-70001 ...OIL SEAL, (RIGHT) (70X96X16)

...OIL SEAL, (RIGHT) (70X96X16)

9 050 ₽
20

09263-32007 ...BEARING, (LEFT) (32X46X17.7)

...BEARING, (LEFT) (32X46X17.7)

11 170 ₽
21

27326-34820 ...SHIM SET, FINAL DRIVE GEAR

...SHIM SET, FINAL DRIVE GEAR

3 430 ₽
22

27326-34810 ...SHIM SET, FINAL DRIVE GEAR

...SHIM SET, FINAL DRIVE GEAR

2 120 ₽
23

27329-34200 ...RETAINER, BEARING

...RETAINER, BEARING

1 200 ₽
24

02112-06123 ...SCREW

...SCREW

250 ₽
25

09283-30028 ...OIL SEAL (30X42X7)

...OIL SEAL (30X42X7)

1 610 ₽
26

27450-38A12 ...CASE, FINAL GEAR

...CASE, FINAL GEAR

130 ₽
27

27481-38A01 ...STUD BOLT

...STUD BOLT

1 790 ₽
28

27460-07A01 ...CASE, FINAL GEAR BEARING

...CASE, FINAL GEAR BEARING

28 370 ₽
29

09280-00015 ...O-RING (D:3.5,ID:131.6)

...O-RING (D:3.5,ID:131.6)

1 610 ₽
30

01550-08253 ...BOLT

...BOLT

400 ₽
31

09247-18001 ...PLUG, OIL FILLER

...PLUG, OIL FILLER

1 220 ₽
32

09280-18004 ...O-RING (D:2.4,ID:17.8)

...O-RING (D:2.4,ID:17.8)

900 ₽
33

09247-14002 ...PLUG, OIL DRAIN

...PLUG, OIL DRAIN

910 ₽
34

09168-14002 ...GASKET (13.8X18.8X0.4)

...GASKET (13.8X18.8X0.4)

290 ₽
35

27172-38A00 ...COUPLING, PROPELLER SHAFT

...COUPLING, PROPELLER SHAFT

9 620 ₽
36

27100-38A50 YOKE, UNIVERSAL JOINT

YOKE, UNIVERSAL JOINT

49 780 ₽
37

27151-38A01 SHAFT, PROPELLER

SHAFT, PROPELLER

30 150 ₽
38

09440-18019 SPRING

SPRING

470 ₽
39

09283-30051 OIL SEAL (28.4X48X15)

OIL SEAL (28.4X48X15)

1 840 ₽
40

09381-40003 CIRCLIP

CIRCLIP

810 ₽
