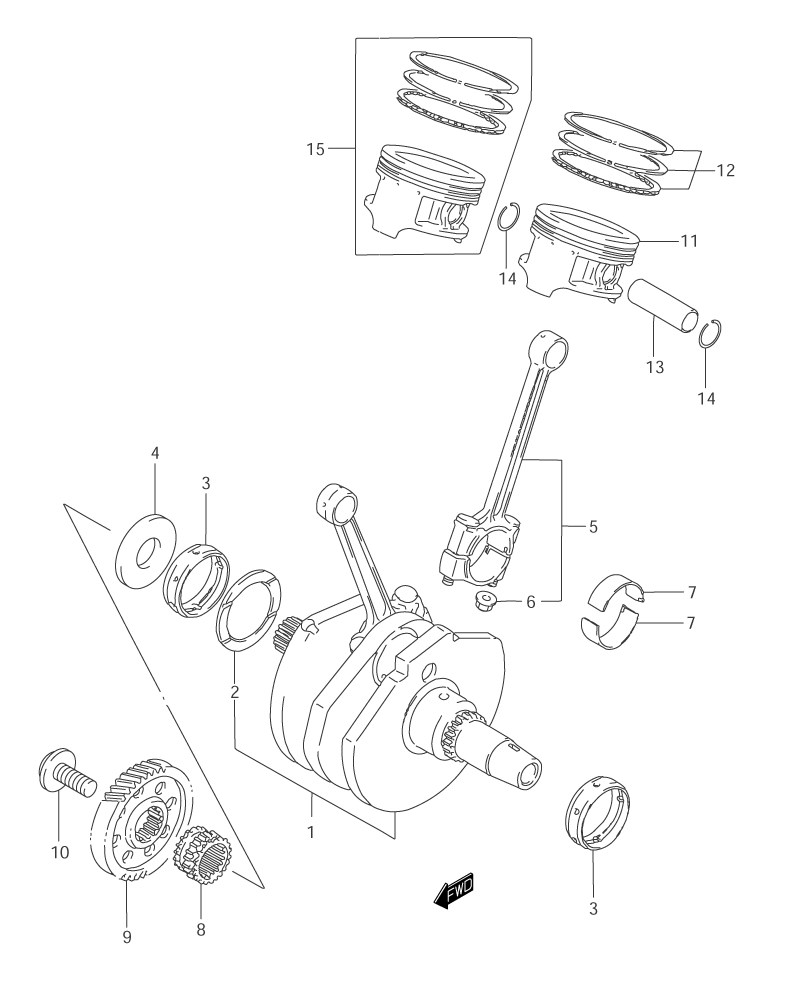

CRANKSHAFT W/ PISTON для Suzuki VS800GL K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    12000-38810 CRANKSHAFT SET
    CRANKSHAFT SET
  • 2-1
    09160-48001 ...WASHER, CRANK THRUST (NO.1)
    ...WASHER, CRANK THRUST (NO.1)
  • 2-2
    09160-48002 ...WASHER, CRANK THRUST (NO.2)
    ...WASHER, CRANK THRUST (NO.2)
  • 2-3
    09160-48003 ...WASHER, CRANK THRUST (NO.3)
    ...WASHER, CRANK THRUST (NO.3)
  • 2-4
    09160-48004 ...WASHER, CRANK THRUST (NO.4)
    ...WASHER, CRANK THRUST (NO.4)
  • 2-5
    09160-48005 ...WASHER, CRANK THRUST (NO.5)
    ...WASHER, CRANK THRUST (NO.5)
  • 2-6
    09160-48006 ...WASHER, CRANK THRUST (NO.6)
    ...WASHER, CRANK THRUST (NO.6)
  • 2-7
    09160-48007 ...WASHER, CRANK THRUST (NO.7)
    ...WASHER, CRANK THRUST (NO.7)
  • 2-8
    09160-48008 ...WASHER, CRANK THRUST (NO.8)
    ...WASHER, CRANK THRUST (NO.8)
  • 2-9
    09160-48009 ...WASHER, CRANK THRUST (NO.9)
    ...WASHER, CRANK THRUST (NO.9)
  • 2-10
    09160-48010 ...WASHER, CRANK THRUST (NO.10)
    ...WASHER, CRANK THRUST (NO.10)
  • 3
    12229-38A00 BEARING, CRANKSHAFT
    BEARING, CRANKSHAFT
  • 4
    12652-38A00 WASHER, CRANK THRUST
    WASHER, CRANK THRUST
  • 5
    12160-45C10 ROD ASSY., CONNECTING
    ROD ASSY., CONNECTING
  • 6
    09159-09001 ...NUT
    ...NUT
  • 7-1
    12164-38E00-0A0 BEARING, CRANK PIN (GREEN)
    BEARING, CRANK PIN (GREEN)
  • 7-2
    12164-38E00-0B0 BEARING, CRANK PIN (BLACK)
    BEARING, CRANK PIN (BLACK)
  • 7-3
    12164-38E00-0C0 BEARING, CRANK PIN (BROWN)
    BEARING, CRANK PIN (BROWN)
  • 7-4
    12164-38E00-0D0 BEARING, CRANK PIN (YELLOW)
    BEARING, CRANK PIN (YELLOW)
  • 7-5
    12164-38E00-0E0 BEARING, CRANK PIN (BLUE)
    BEARING, CRANK PIN (BLUE)
  • 8
    12731-38A00 SPROCKET, CAM CHAIN DRIVE (RIGHT)
    SPROCKET, CAM CHAIN DRIVE (RIGHT)
  • 9
    21111-38A00 GEAR, PRIMARY DRIVE
    GEAR, PRIMARY DRIVE
  • 10
    09103-12013 BOLT (12X28)
    BOLT (12X28)
  • 11
    12111-45C00-0F0 PISTON
    PISTON
  • 12
    12140-45C10 RING SET, PISTON
    RING SET, PISTON
  • 13
    12151-24A00 PIN, PISTON
    PIN, PISTON
  • 14
    09381-20004 CIRCLIP
    CIRCLIP
  • 15
    12100-45C00-050 PISTON SET (OS:0.5) (OPT)
    PISTON SET (OS:0.5) (OPT)
