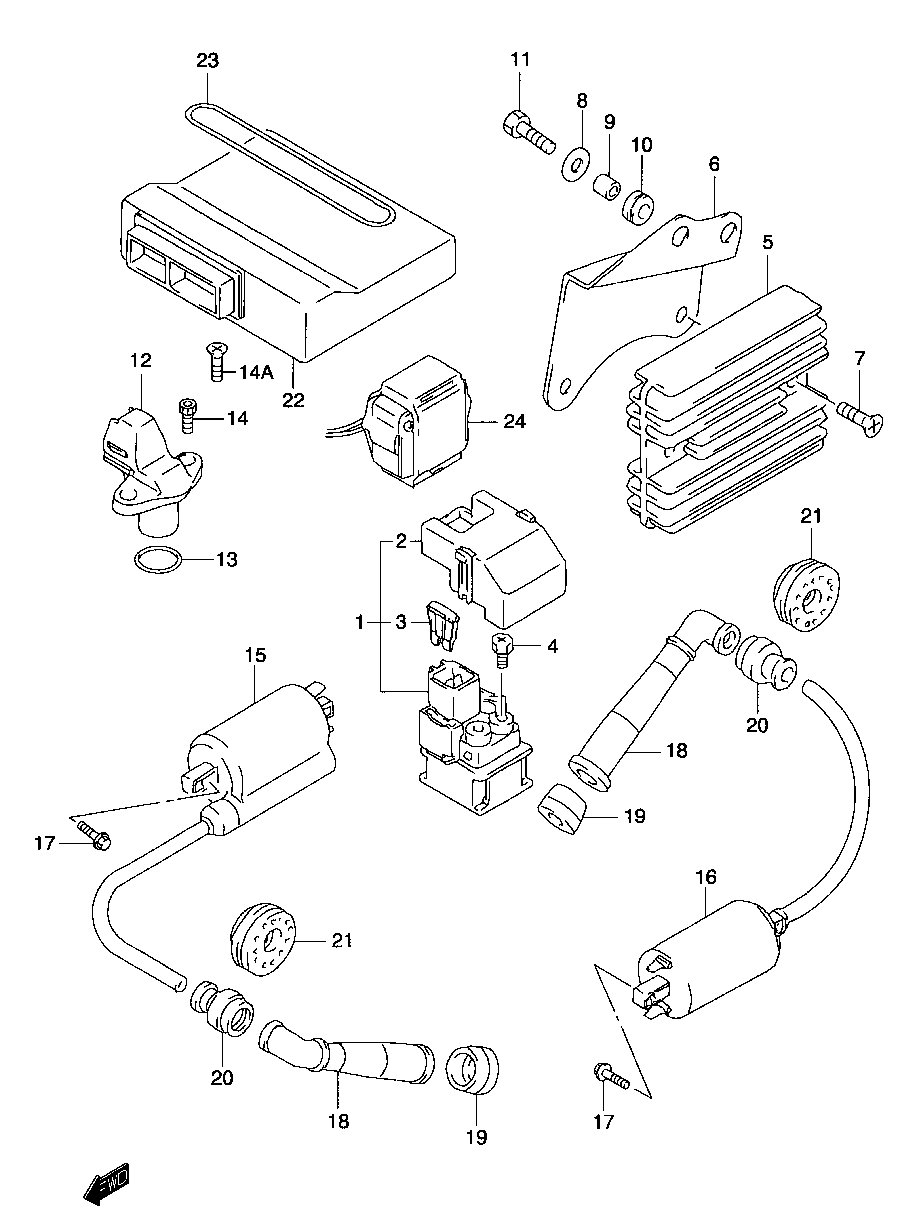

ELECTRICAL - COILS W/ RECTIFIER для Suzuki TL-1000S K1 - 2001 года выпуска`
-
№АртикулНазвание
-
131800-21E20 RELAY ASSY., STARTINGRELAY ASSY., STARTING
-
231861-21E20 ...COVER, RELAY ASSY....COVER, RELAY ASSY.
-
309481-30101 ...FUSE, 30A...FUSE, 30A
-
409128-06013 BOLTBOLT
-
532800-02F00 RECTIFIER ASSY.RECTIFIER ASSY.
-
632831-02F00 BRACKET, RECT FTGBRACKET, RECT FTG
-
709136-06093 SCREW, RECTIFIERSCREW, RECTIFIER
-
8-209160-06084 WASHER, RECT FTG BRACKETWASHER, RECT FTG BRACKET
-
909180-06258 SPACER, RECT FTG BRACKETSPACER, RECT FTG BRACKET
-
1009320-09036 CUSHION, RECT FTGCUSHION, RECT FTG
-
1101560-06253 BOLTBOLT
-
1232160-02F00 SENSOR ASSY., CAM POSITIONSENSOR ASSY., CAM POSITION
-
1332161-02F00 PACKINGPACKING
-
14A02112-06163 SCREWSCREW
-
1533410-48E00 COIL ASSY., IGNITIONCOIL ASSY., IGNITION
-
1633420-38A11 COIL ASSY., IGNITIONCOIL ASSY., IGNITION
-
1702162-05203 SCREWSCREW
-
1833510-11D00 CAP ASSY., SPARK PLUGCAP ASSY., SPARK PLUG
-
1933541-23E01 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
2033542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
2133543-02F00 COVER, SPARK PLUG CAPCOVER, SPARK PLUG CAP
-
22-232920-02FJ0 CONTROL UNIT, EPICONTROL UNIT, EPI
-
2333651-12910 BAND, EPI CONTBAND, EPI CONT
-
2433960-02F00 SENSOR ASSY., FUEL CUTSENSOR ASSY., FUEL CUT
