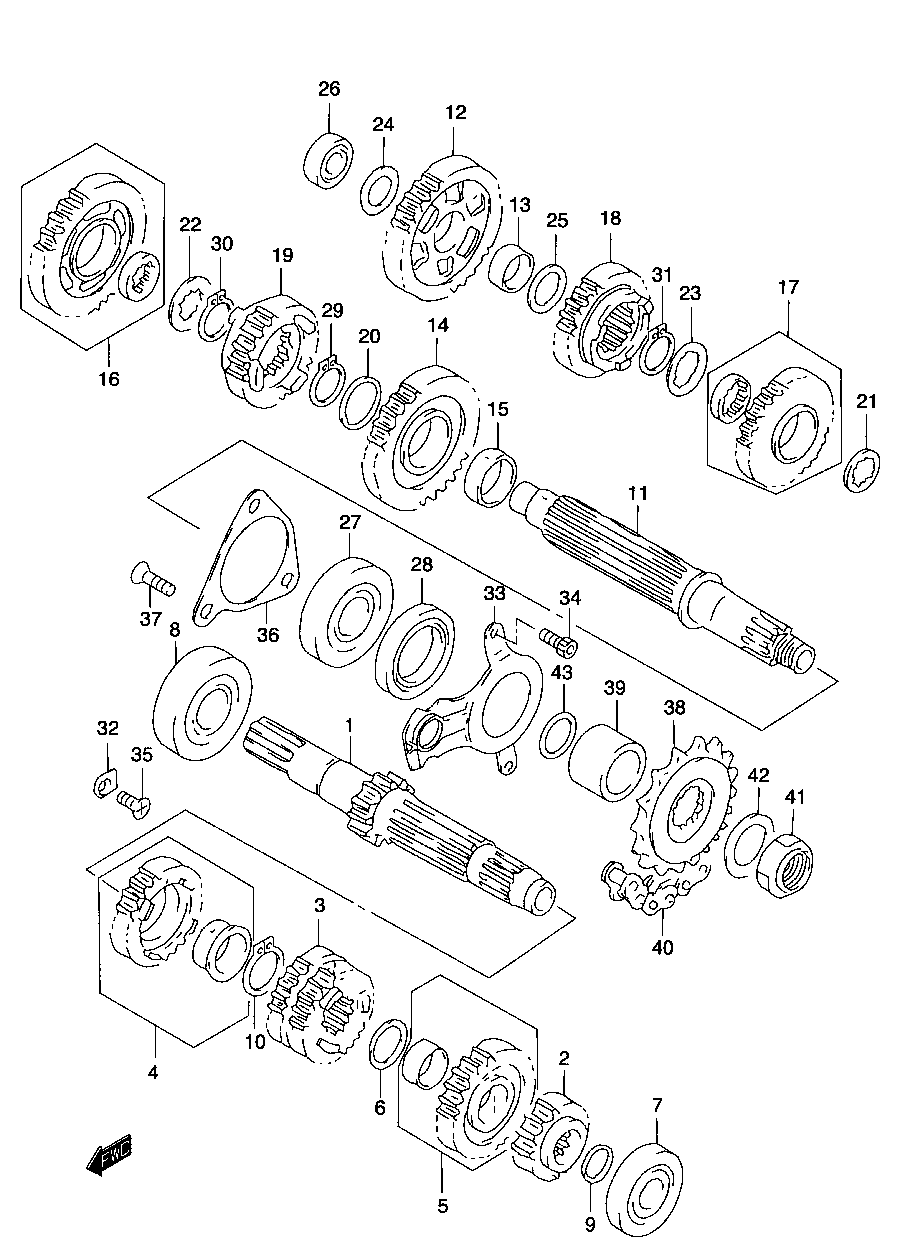

TRANSMISSION для Suzuki TL-1000S K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-02F06 SHAFT, COUNTER (NT:12)
    SHAFT, COUNTER (NT:12)
  • 2
    24221-02F01 GEAR, 2ND DRIVE (NT:15)
    GEAR, 2ND DRIVE (NT:15)
  • 3
    24231-02F13 GEAR, 3RD & 4TH DRIVE (NT:18/27)
    GEAR, 3RD & 4TH DRIVE (NT:18/27)
  • 4
    24251-02810 GEAR SET, 5TH DRIVE (NT:23)
    GEAR SET, 5TH DRIVE (NT:23)
  • 5
    24261-02810 GEAR SET, 6TH DRIVE (NT:24)
    GEAR SET, 6TH DRIVE (NT:24)
  • 6
    09181-22167 WASHER, 6TH DRIVE
    WASHER, 6TH DRIVE
  • 7
    09262-20139 BEARING, CENTER SHAFT LH
    BEARING, CENTER SHAFT LH
  • 8
    09262-25073 BEARING, CENTER SHAFT RH
    BEARING, CENTER SHAFT RH
  • 9
    09280-17004 O-RING, CENTER SHAFT
    O-RING, CENTER SHAFT
  • 10
    09380-27001 CIRCLIP, 5TH DRIVE
    CIRCLIP, 5TH DRIVE
  • 11-2
    24130-02F10 SHAFT, DRIVE
    SHAFT, DRIVE
  • 12
    24311-02F10 GEAR, 1ST DRIVEN (NT:32)
    GEAR, 1ST DRIVEN (NT:32)
  • 13
    24312-02F00 BUSH, 1ST DRIVEN
    BUSH, 1ST DRIVEN
  • 14
    24321-02F11 GEAR, 2ND DRIVEN (NT:29)
    GEAR, 2ND DRIVEN (NT:29)
  • 15
    24322-02F01 BUSH, 2ND DRIVEN
    BUSH, 2ND DRIVEN
  • 16
    24331-02810 GEAR SET, 3RD DRIVEN (NT:27)
    GEAR SET, 3RD DRIVEN (NT:27)
  • 17
    24341-02810 GEAR SET, 4TH DRIVEN (NT:27)
    GEAR SET, 4TH DRIVEN (NT:27)
  • 18
    24351-02F13 GEAR, 5TH DRIVEN (NT:25)
    GEAR, 5TH DRIVEN (NT:25)
  • 19
    24361-02F11 GEAR, 6TH DRIVEN (NT:24)
    GEAR, 6TH DRIVEN (NT:24)
  • 20
    09160-27008 WASHER, 2ND D RIVEN
    WASHER, 2ND D RIVEN
  • 21
    09167-27002 WASHER, 3RD & 4TH DRIVEN
    WASHER, 3RD & 4TH DRIVEN
  • 22
    24333-02F00 WASHER, 3RD DRIVEN
    WASHER, 3RD DRIVEN
  • 23
    24333-02F00 WASHER, 4TH DRIVEN
    WASHER, 4TH DRIVEN
  • 24
    09181-20251 WASHER, 1ST DRIVEN (RIGHT)
    WASHER, 1ST DRIVEN (RIGHT)
  • 25
    09181-22223 WASHER, 1ST DRIVEN (LEFT)
    WASHER, 1ST DRIVEN (LEFT)
  • 26
    09262-20082 BEARING, DRIVE SHAFT (RIGHT)
    BEARING, DRIVE SHAFT (RIGHT)
  • 27
    09262-28040 BEARING, DRIVE SHAFT (LEFT)
    BEARING, DRIVE SHAFT (LEFT)
  • 28
    09283-38020 SEAL, DRIVE SHAFT
    SEAL, DRIVE SHAFT
  • 29
    09380-27001 CIRCLIP, 2ND DRIVEN
    CIRCLIP, 2ND DRIVEN
  • 30
    09380-27001 CIRCLIP, 3RD DRIVEN
    CIRCLIP, 3RD DRIVEN
  • 31
    09380-27001 CIRCLIP, 4TH DRIVEN
    CIRCLIP, 4TH DRIVEN
  • 32
    24741-21A00 RETAINER, CENTER SHAFT
    RETAINER, CENTER SHAFT
  • 33
    24751-02F01 RETAINER, DRIVE SHAFT
    RETAINER, DRIVE SHAFT
  • 34
    07130-06123 BOLT, DRIVE SHAFT
    BOLT, DRIVE SHAFT
  • 35
    02112-06123 SCREW, CENTER SHAFT
    SCREW, CENTER SHAFT
  • 36
    24741-02F00 RETAINER, DRIVE SHAFT BRG
    RETAINER, DRIVE SHAFT BRG
  • 37
    09126-06011 SCREW, DRIVE SHAFT (6X12)
    SCREW, DRIVE SHAFT (6X12)
  • 38-2
    27510-21A31 SPROCKET, ENGINE (NT:17)
    SPROCKET, ENGINE (NT:17)
  • 39
    27531-24B12 SPACER, SPROCKET
    SPACER, SPROCKET
  • 40-2
    27600-24F30-104 CHAIN ASSY. (RK50GSVZ3,104L)
    CHAIN ASSY. (RK50GSVZ3,104L)
  • 41
    09159-20004 NUT
    NUT
  • 42
    09181-25268 WASHER (25X40X1.5)
    WASHER (25X40X1.5)
  • 43
    09280-24010 O-RING (D:2.4,ID:23.7)
    O-RING (D:2.4,ID:23.7)
