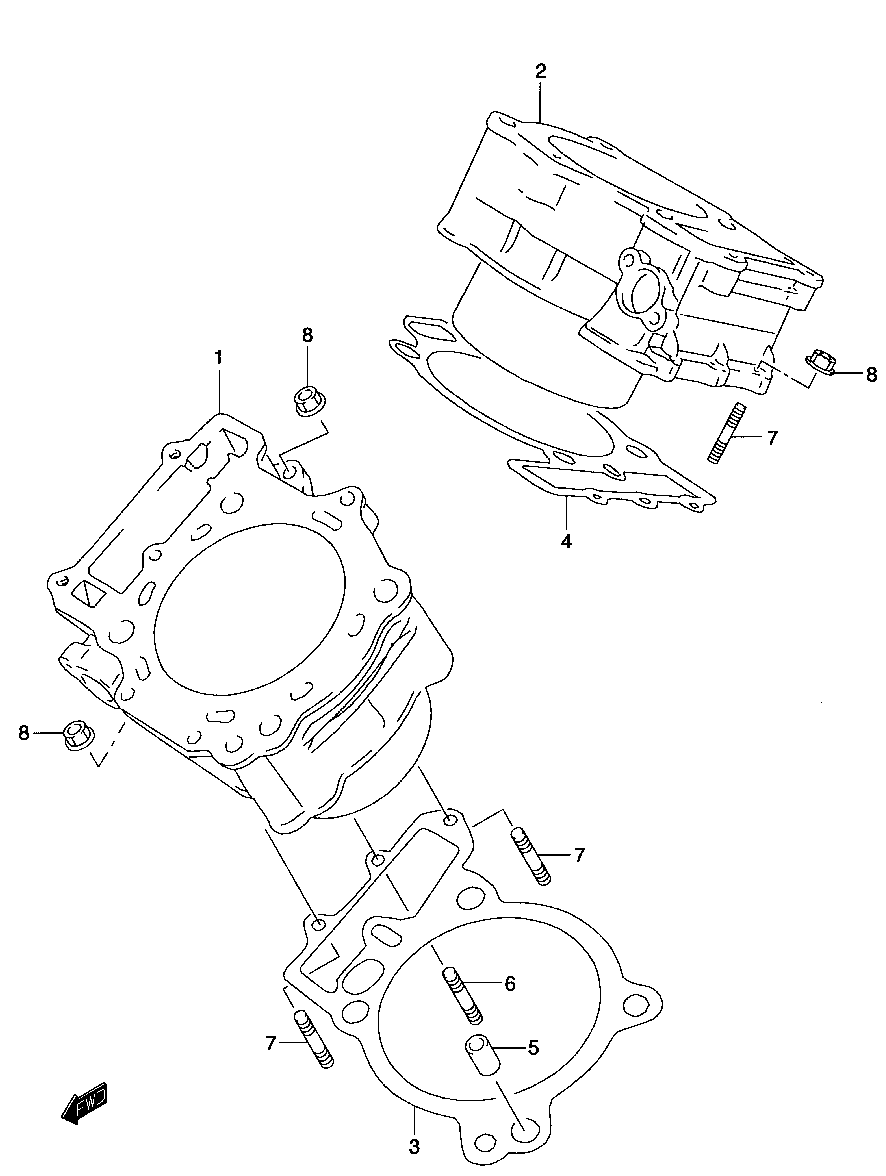

CYLINDER для Suzuki TL-1000S K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-3
    11211-02F02-0F0 CYLINDER (FRONT)
    CYLINDER (FRONT)
  • 2-3
    11221-02F02-0F0 CYLINDER (REAR)
    CYLINDER (REAR)
  • 3-1
    11241-02F00 GASKET, CYLINDER (FRONT) (UP TO ENGINE NO.111954)
    GASKET, CYLINDER (FRONT) (UP TO ENGINE NO.111954)
  • 3-2
    11241-02F01 GASKET, CYLINDER (FRONT) (ABOVE ENGINE NO. 111955)
    GASKET, CYLINDER (FRONT) (ABOVE ENGINE NO. 111955)
  • 4-1
    11242-02F00 GASKET, CYLINDER (REAR) (UP TO ENGINE NO.111954)
    GASKET, CYLINDER (REAR) (UP TO ENGINE NO.111954)
  • 4-2
    11242-02F01 GASKET, CYLINDER (REAR) (ABOVE ENGINE NO.111955)
    GASKET, CYLINDER (REAR) (ABOVE ENGINE NO.111955)
  • 5
    04211-13189 PIN
    PIN
  • 6
    09108-06118 STUD BOLT
    STUD BOLT
  • 7
    01421-06203 STUD BOLT
    STUD BOLT
  • 8
    08316-10063 NUT
    NUT
