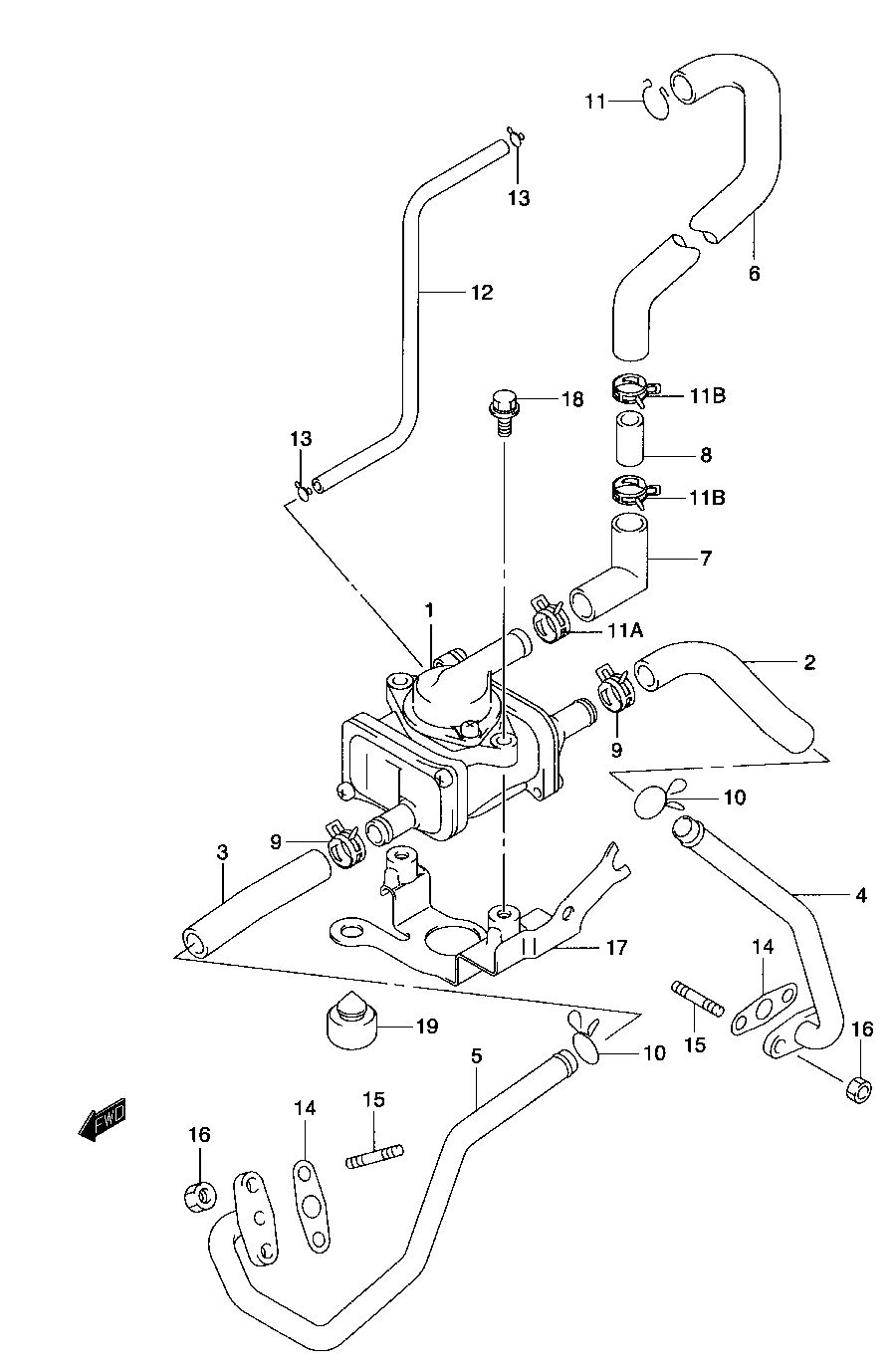

POLLUTION CONTROL для Suzuki TL-1000S K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    18450-48E00 VALVE ASSY., 2ND AIR
    VALVE ASSY., 2ND AIR
  • 2
    18461-02F00 HOSE, 2ND AIR VALVE (FRONT)
    HOSE, 2ND AIR VALVE (FRONT)
  • 3
    18471-02F00 HOSE, 2ND AIR VALVE (REAR)
    HOSE, 2ND AIR VALVE (REAR)
  • 4
    18410-02F00 PIPE, 2ND AIR (FRONT)
    PIPE, 2ND AIR (FRONT)
  • 5
    18420-02F00 PIPE, 2ND AIR (REAR)
    PIPE, 2ND AIR (REAR)
  • 6-3
    18711-02F21 HOSE, 2ND AIR CLEANER
    HOSE, 2ND AIR CLEANER
  • 7
    18712-02F00 HOSE, 2ND AIR CLEANER JOINT
    HOSE, 2ND AIR CLEANER JOINT
  • 8
    13888-19B00 JOINT, 2ND AIR CLEANER HOSE
    JOINT, 2ND AIR CLEANER HOSE
  • 9
    09401-15404 CLIP, 2ND AIR VALVE HOSE NO.1
    CLIP, 2ND AIR VALVE HOSE NO.1
  • 10
    09401-13409 CLIP, 2ND AIR VALVE HOSE NO.2
    CLIP, 2ND AIR VALVE HOSE NO.2
  • 11
    09401-15401 CLIP, 2ND AIR CLEANER HOSE
    CLIP, 2ND AIR CLEANER HOSE
  • 11A
    09401-15408 CLIP, 2ND AIR CLEANER HOSE
    CLIP, 2ND AIR CLEANER HOSE
  • 11B
    09401-14404 CLIP, 2ND AIR CLEANER HOSE
    CLIP, 2ND AIR CLEANER HOSE
  • 12
    09352-40703-600 HOSE, 2ND AIR VALVE VACUUM (L:600?250)
    HOSE, 2ND AIR VALVE VACUUM (L:600?250)
  • 13
    09401-06101 CLIP, 2ND AIR VACUUM HOSE
    CLIP, 2ND AIR VACUUM HOSE
  • 14
    18441-45C00 GASKET, 2ND AIR PIPE
    GASKET, 2ND AIR PIPE
  • 15
    01421-06163 BOLT, 2ND AIR PIPE STUD
    BOLT, 2ND AIR PIPE STUD
  • 16
    08316-10063 NUT
    NUT
  • 17
    18610-02F10 BRACKET, 2ND AIR VALVE
    BRACKET, 2ND AIR VALVE
  • 18
    01550-06163 BOLT
    BOLT
  • 19
    09321-10002 CUSHION
    CUSHION
