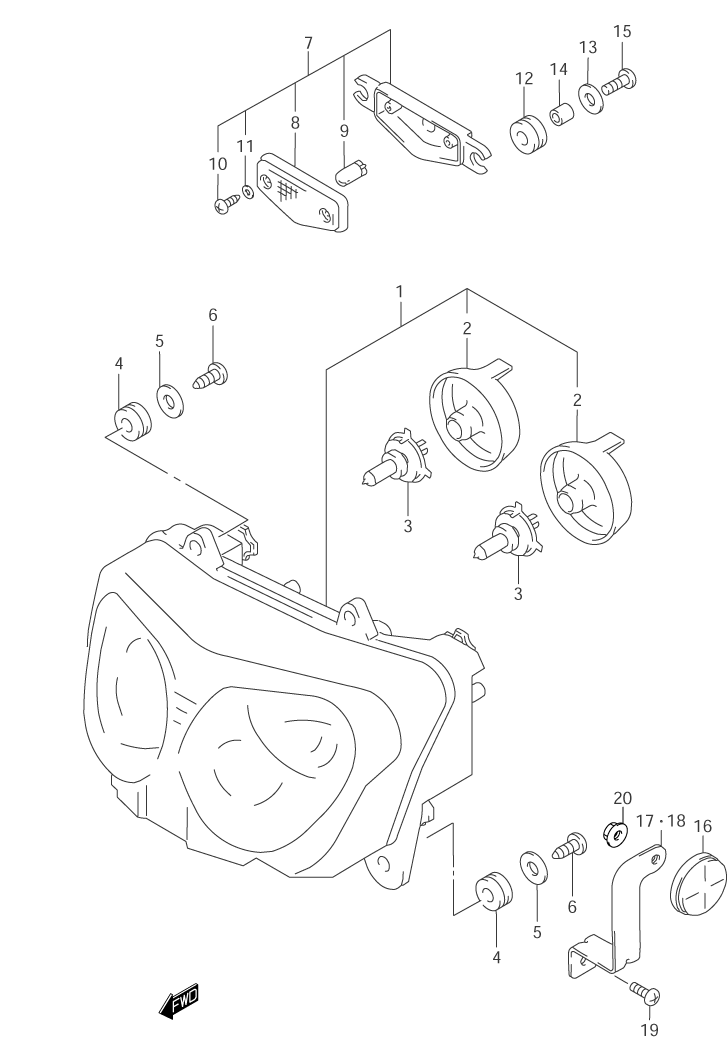

HEADLAMP для Suzuki GSX600F K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-2
    35100-08F01-999 HEADLAMP ASSY.
    HEADLAMP ASSY.
  • 2
    35125-74F00 ...COVER, SOCKET
    ...COVER, SOCKET
  • 3
    09471-12185 BULB (12V,60/55W)
    BULB (12V,60/55W)
  • 4
    35137-33E00 CUSHION, HEADLAMP
    CUSHION, HEADLAMP
  • 5
    09160-05045 WASHER (5.5X18X1)
    WASHER (5.5X18X1)
  • 6
    03512-05163 SCREW
    SCREW
  • 7
    36110-08F00 LAMP ASSY., POSITION (FRONT)
    LAMP ASSY., POSITION (FRONT)
  • 8
    36112-08F00 ...LENS
    ...LENS
  • 9
    09471-12081 ...BULB (12V,5W)
    ...BULB (12V,5W)
  • 10
    03211-04123 ...SCREW
    ...SCREW
  • 11-1
    36117-08F00 ...WASHER
    ...WASHER
  • 12
    09320-08001 CUSHION, POSITION (FRONT)
    CUSHION, POSITION (FRONT)
  • 13
    09160-05045 WASHER, POSITION (FRONT) (5.5X18X1.0)
    WASHER, POSITION (FRONT) (5.5X18X1.0)
  • 14
    09180-05048 SPACER (FRONT)
    SPACER (FRONT)
  • 15
    02142-05203 SCREW
    SCREW
  • 16
    35950-14A00 REFLEX REFLECTOR ASSY.
    REFLEX REFLECTOR ASSY.
  • 17-1
    35956-08F00 BRACKET (FRONT) (RIGHT) (UP TO FRAME NO. JS1GN79A X2100855)
    BRACKET (FRONT) (RIGHT) (UP TO FRAME NO. JS1GN79A X2100855)
  • 17-2
    35956-08F01 BRACKET (FRONT) (RIGHT) (FRAME NO. JS1GN79A X2100856 AND UP)
    BRACKET (FRONT) (RIGHT) (FRAME NO. JS1GN79A X2100856 AND UP)
  • 18-1
    35957-08F00 BRACKET (FRONT) (LEFT) (UP TO FRAME NO. JS1GN79A X2100855)
    BRACKET (FRONT) (LEFT) (UP TO FRAME NO. JS1GN79A X2100855)
  • 18-2
    35957-08F01 BRACKET (FRONT) (LEFT) (FRAME NO. JS1GN79A X2100856 AND UP)
    BRACKET (FRONT) (LEFT) (FRAME NO. JS1GN79A X2100856 AND UP)
  • 19
    02142-05103 SCREW
    SCREW
  • 20
    08316-10053 NUT (FRAME NO. JS1GN79A X2100856 AND UP)
    NUT (FRAME NO. JS1GN79A X2100856 AND UP)
