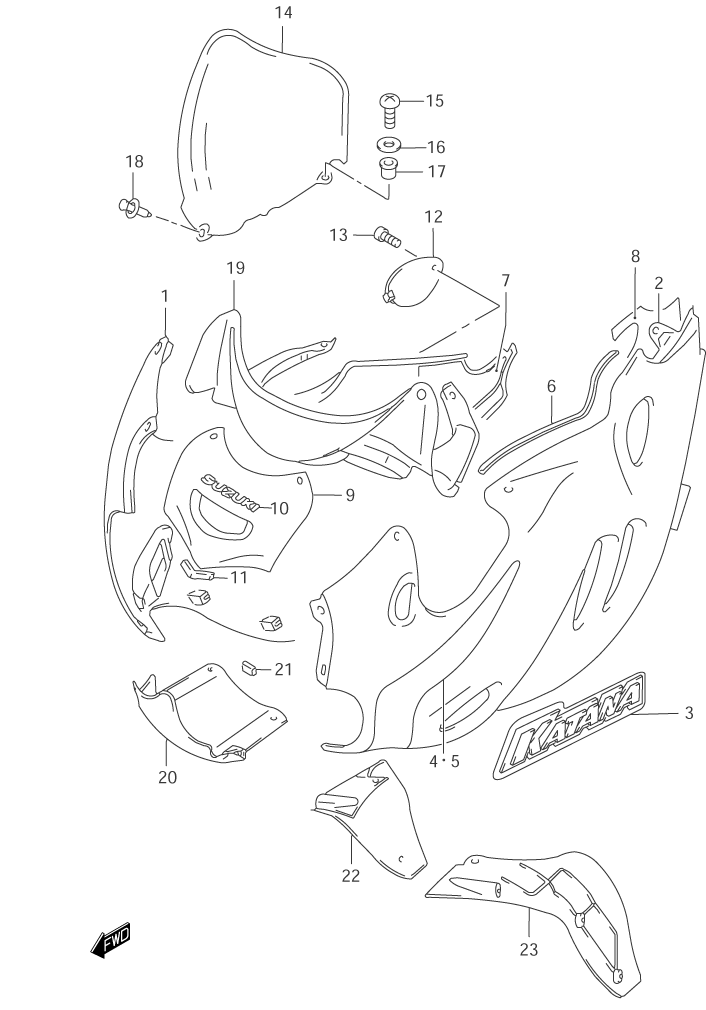

COWLING BODY для Suzuki GSX600F K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94403-08FC0-Y9H COWL ASSY., SIDE (RIGHT) (Y9H - YELLOW)
    COWL ASSY., SIDE (RIGHT) (Y9H - YELLOW)
  • 1-2
    94403-08FC0-YC2 COWL ASSY., SIDE (RIGHT) (YC2 - BLUE)
    COWL ASSY., SIDE (RIGHT) (YC2 - BLUE)
  • 2-1
    94404-08FC0-Y9H COWL ASSY., SIDE (LEFT) (Y9H - YELLOW) (EXCEPT CALIF.)
    COWL ASSY., SIDE (LEFT) (Y9H - YELLOW) (EXCEPT CALIF.)
  • 2-2
    94404-08FC0-YC2 COWL ASSY., SIDE (LEFT) (YC2 - BLUE) (EXCEPT CALIF.)
    COWL ASSY., SIDE (LEFT) (YC2 - BLUE) (EXCEPT CALIF.)
  • 2-3
    94404-08FD0-Y9H COWL ASSY., SIDE (LEFT) (Y9H - YELLOW) (CALIFORNIA ONLY)
    COWL ASSY., SIDE (LEFT) (Y9H - YELLOW) (CALIFORNIA ONLY)
  • 2-4
    94404-08FD0-YC2 COWL ASSY., SIDE (LEFT) (YC2 - BLUE) (CALIFORNIA ONLY)
    COWL ASSY., SIDE (LEFT) (YC2 - BLUE) (CALIFORNIA ONLY)
  • 3-1
    68681-08F50-EE5 ...EMBLEM, KATANA (EE5 - SILVER/BLACK/RED/YELLOW) (FOR Y9H - YELLOW)
    ...EMBLEM, KATANA (EE5 - SILVER/BLACK/RED/YELLOW) (FOR Y9H - YELLOW)
  • 3-2
    68681-08F50-EE6 ...EMBLEM, KATANA (EE6 - SILVER/BLACKYELLOW/BLUE) (FOR YC2 - BLUE)
    ...EMBLEM, KATANA (EE6 - SILVER/BLACKYELLOW/BLUE) (FOR YC2 - BLUE)
  • 4-1
    68685-08F01-BU4 ...TAPE, SIDE (RIGHT(BU4 - GRAY/YELLOW/BLACK) (FOR Y9H - YELLOW)
    ...TAPE, SIDE (RIGHT(BU4 - GRAY/YELLOW/BLACK) (FOR Y9H - YELLOW)
  • 4-2
    68685-08F01-EE3 ...TAPE, SIDE (RIGHT) (EE3 - BLACK/YELLOW/BLUE) (FOR YC2 - BLUE)
    ...TAPE, SIDE (RIGHT) (EE3 - BLACK/YELLOW/BLUE) (FOR YC2 - BLUE)
  • 5-1
    68695-08F01-BU4 ...TAPE, SIDE (LEFT(BU4 - GRAY/YELLOW/BLACK) (FOR Y9H - YELLOW)
    ...TAPE, SIDE (LEFT(BU4 - GRAY/YELLOW/BLACK) (FOR Y9H - YELLOW)
  • 5-2
    68695-08F01-EE3 ...TAPE, SIDE (LEFT) (EE3 - BLACK/YELLOW/BLUE) (FOR YC2 - BLUE)
    ...TAPE, SIDE (LEFT) (EE3 - BLACK/YELLOW/BLUE) (FOR YC2 - BLUE)
  • 6
    94631-44110 ...MOLDING
    ...MOLDING
  • 7
    94439-08F00 ...SHIELD, HEAT (RIGHT)
    ...SHIELD, HEAT (RIGHT)
  • 8
    94449-08F00 ...SHIELD, HEAT (LEFT)
    ...SHIELD, HEAT (LEFT)
  • 9-1
    94410-08F00-Y9H PANEL (CENTER) (UPPER) (Y9H - YELLOW)
    PANEL (CENTER) (UPPER) (Y9H - YELLOW)
  • 9-2
    94410-08F00-YC2 PANEL (CENTER) (UPPER) (YC2 - BLUE)
    PANEL (CENTER) (UPPER) (YC2 - BLUE)
  • 10-1
    68185-05C10-Y7L ...EMBLEM, SUZUKI (Y7L - BLACK) (FOR Y9H - YELLOW)
    ...EMBLEM, SUZUKI (Y7L - BLACK) (FOR Y9H - YELLOW)
  • 10-2
    68185-05C10-YD8 ...EMBLEM, SUZUKI (YD8 - SILVER) (FOR YC2 - BLUE)
    ...EMBLEM, SUZUKI (YD8 - SILVER) (FOR YC2 - BLUE)
  • 11
    94413-08F00 ...CUSHION
    ...CUSHION
  • 12-1
    94435-08F00-Y9H LID, OIL (Y9H - YELLOW)
    LID, OIL (Y9H - YELLOW)
  • 12-2
    94435-08F00-YC2 LID, OIL (YC2 - BLUE)
    LID, OIL (YC2 - BLUE)
  • 13
    09139-06030 SCREW
    SCREW
  • 14
    94611-08F00 WIND SCREEN
    WIND SCREEN
  • 15
    09139-05025 SCREW
    SCREW
  • 16
    08322-01053 WASHER
    WASHER
  • 17
    09159-05019 NUT
    NUT
  • 18
    09409-08308-5ES CLIP (5ES - BLACK)
    CLIP (5ES - BLACK)
  • 19
    94421-08F00 PANEL, METER
    PANEL, METER
