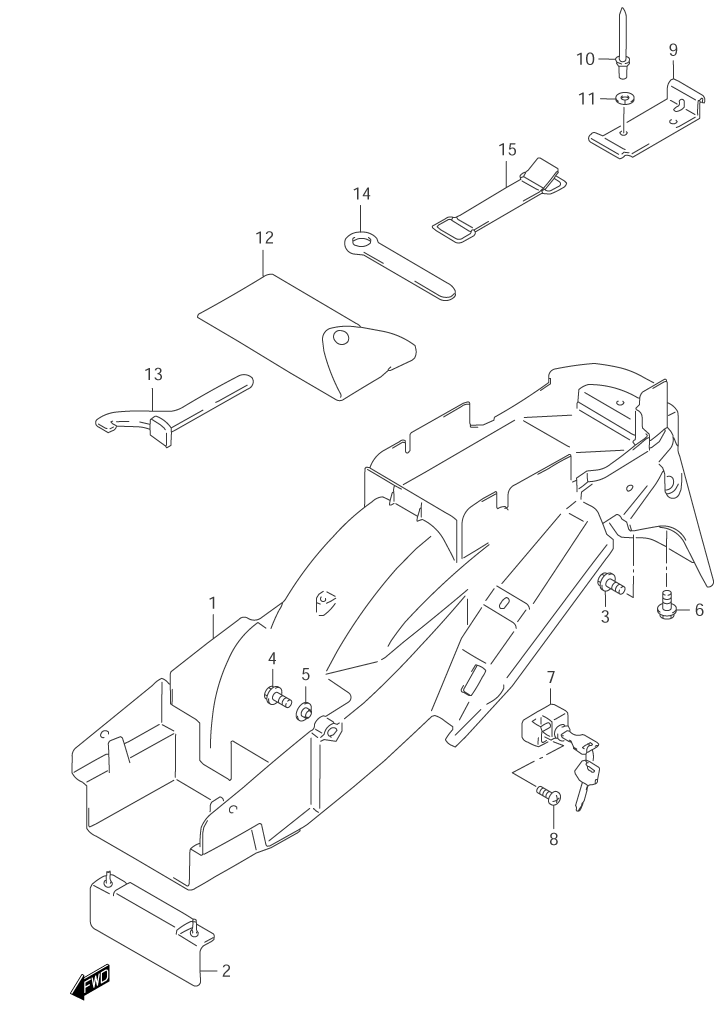

FENDER - REAR W/TOOLS для Suzuki GSX600F K1 - 2001 года выпуска`
-
№АртикулНазвание
-
163111-08F30 FENDER (REAR)FENDER (REAR)
-
263411-08F00 MUDGUARD, FENDER (REAR)MUDGUARD, FENDER (REAR)
-
3-209113-06001 BOLTBOLT
-
401550-06163 BOLT (FRONT) (LEFT)BOLT (FRONT) (LEFT)
-
509169-06071 WASHERWASHER
-
6-209116-06165 BOLT (CENTER)BOLT (CENTER)
-
795700-44820 LOCK SET, HELMETLOCK SET, HELMET
-
809139-06089 SCREWSCREW
-
963466-02F00 HOLDER, TOOLHOLDER, TOOL
-
1009229-04020 RIVETRIVET
-
1108322-01043 WASHERWASHER
-
1209800-21036 TOOL ASSY.TOOL ASSY.
-
1309822-00005 CLAMP, WRENCHCLAMP, WRENCH
-
1409816-00102 HEXAGON SPANNER, 3HEXAGON SPANNER, 3
-
15-247435-02F01 BAND, TOOLBAND, TOOL
