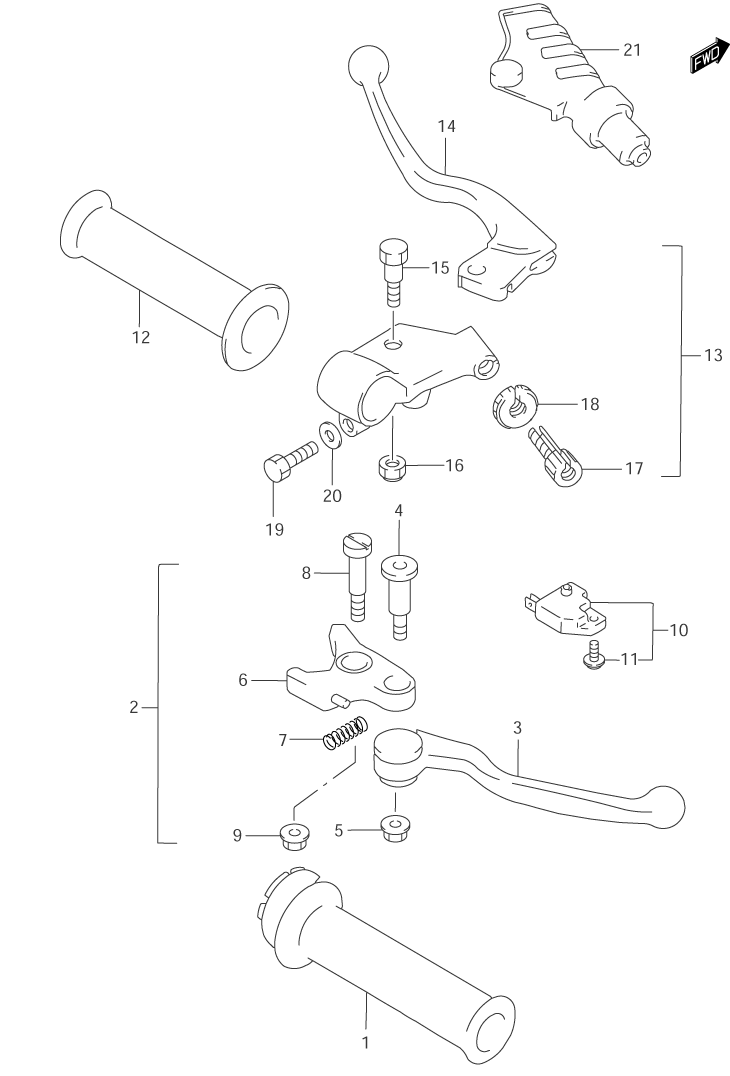

HANDLEBAR - LEVERS W/ GRIPS для Suzuki GSX600F K1 - 2001 года выпуска`
-
№АртикулНазвание
-
157110-46E01 GRIP, THROTTLEGRIP, THROTTLE
-
257300-40C10 LEVER ASSY., BRAKELEVER ASSY., BRAKE
-
357420-32C00 ...LEVER...LEVER
-
457437-32C01 ...BOLT, LEVER...BOLT, LEVER
-
508319-31063 ...NUT...NUT
-
6-257430-40C10 ...KNOCKER...KNOCKER
-
757438-32C00 ......SPRING......SPRING
-
857431-17C00 ...BOLT, KNOCKER...BOLT, KNOCKER
-
908316-10063 ...NUT...NUT
-
1057460-17C00 SWITCH ASSY., STOPSWITCH ASSY., STOP
-
1157465-17C00 ...SCREW...SCREW
-
1257211-22D01 GRIP (LEFT)GRIP (LEFT)
-
1357500-10D80 LEVER ASSY., CLUTCHLEVER ASSY., CLUTCH
-
1457620-27A31 ...LEVER...LEVER
-
1557531-14A00 ...BOLT, LEVER...BOLT, LEVER
-
1608319-21063 ...NUT...NUT
-
1757441-11010 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
1857442-11010 ...NUT...NUT
-
1901500-06203 ...BOLT...BOLT
-
2008322-01063 ...WASHER...WASHER
-
2157661-45C00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
