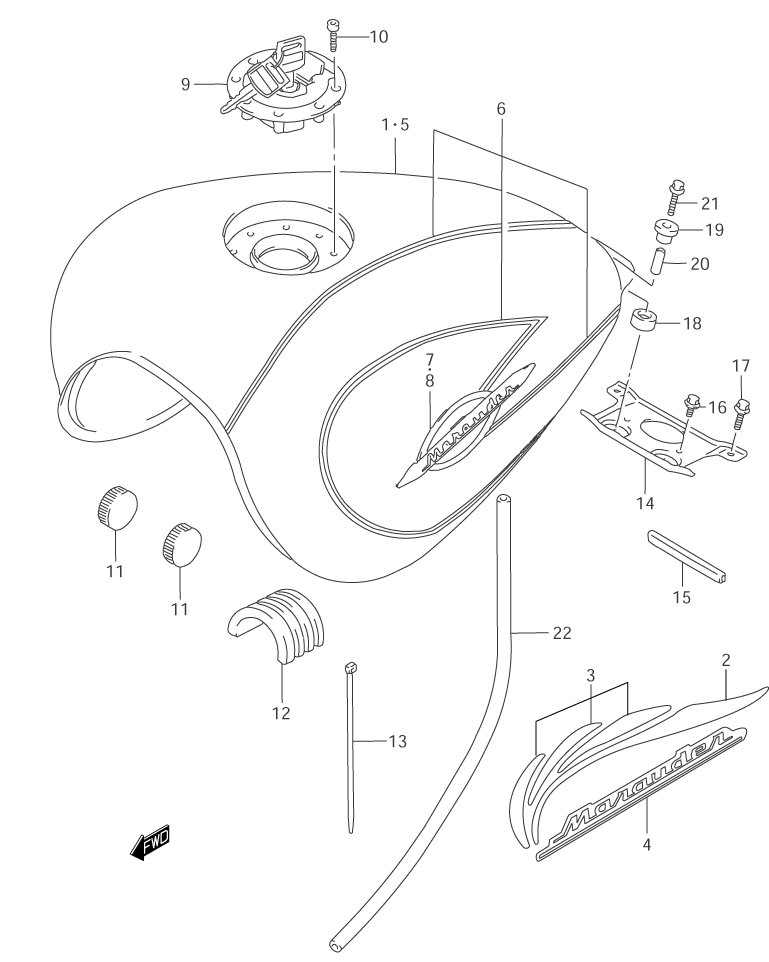

FUEL TANK (UP TO FRAME NO.103782) для Suzuki VZ800 Y - 2000 года выпуска`
-
№АртикулНазвание
-
1-149200-48ED0-33J TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF.)TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF.)
-
1-249200-48EE0-33J TANK ASSY., FUEL (33J - BLACK) (CALIFORNIA ONLY)TANK ASSY., FUEL (33J - BLACK) (CALIFORNIA ONLY)
-
268110-48E50-0MT ...TAPE SET, FUEL TANK (0MT - SILVER)...TAPE SET, FUEL TANK (0MT - SILVER)
-
368120-48E00 ...EMBLEM SET...EMBLEM SET
-
468121-48E30-J3J ...EMBLEM (J3J - SILVER/RED/BLACK)...EMBLEM (J3J - SILVER/RED/BLACK)
-
5-149200-48EB0-BP8 TANK ASSY., FUEL (EXCEPT CALIF.) (BP8 - BLUE/BLACK)TANK ASSY., FUEL (EXCEPT CALIF.) (BP8 - BLUE/BLACK)
-
5-249200-48EB0-M9U TANK ASSY., FUEL (CANADA) (M9U - RED/BLACK)TANK ASSY., FUEL (CANADA) (M9U - RED/BLACK)
-
5-349200-48EC0-BP8 TANK ASSY., FUEL (CALIFORNIA ONLY) (BP8 - BLUE/BLACK)TANK ASSY., FUEL (CALIFORNIA ONLY) (BP8 - BLUE/BLACK)
-
6-168110-48E40-BT9 ...TAPE SET, FUEL TANK (BT9 - GOLD/SILVER/BLACK/BLUE...TAPE SET, FUEL TANK (BT9 - GOLD/SILVER/BLACK/BLUE
-
6-268110-48E40-BT8 ...TAPE SET, FUEL TANK (CANADA) (BT8 - GRAY/COPPER GOLD/BLACK/RED)...TAPE SET, FUEL TANK (CANADA) (BT8 - GRAY/COPPER GOLD/BLACK/RED)
-
768111-48E20 ...EMBLEM, FUEL TANK (RIGHT)...EMBLEM, FUEL TANK (RIGHT)
-
868121-48E20 ...EMBLEM, FUEL TANK (LEFT)...EMBLEM, FUEL TANK (LEFT)
-
9-144200-33850 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
9-244200-33860 CAP SET, FUEL TANK (CALIFORNIA ONLY)CAP SET, FUEL TANK (CALIFORNIA ONLY)
-
1009106-05017 BOLT (L:20)BOLT (L:20)
-
1109329-10007 CUSHIONCUSHION
-
1244541-13E00 CUSHION, FUEL TANK (UPPER)CUSHION, FUEL TANK (UPPER)
-
1309407-25402 CLAMP (L:248)CLAMP (L:248)
-
1444550-48E01 BRACKET, FUEL TANK (REAR)BRACKET, FUEL TANK (REAR)
-
1547512-47D00 PROTECTORPROTECTOR
-
1601550-06123 BOLT (FRONT)BOLT (FRONT)
-
1701550-06163 BOLT (REAR)BOLT (REAR)
-
1844542-48E00 CUSHION, FUEL TANK (REAR/LOWER)CUSHION, FUEL TANK (REAR/LOWER)
-
1909320-10022 CUSHION (UPPER)CUSHION (UPPER)
-
2009180-06067 SPACER (6.5X10.5X22.5)SPACER (6.5X10.5X22.5)
-
2101550-06353 BOLTBOLT
-
2244423-48E01 HOSE, DRAINHOSE, DRAIN
