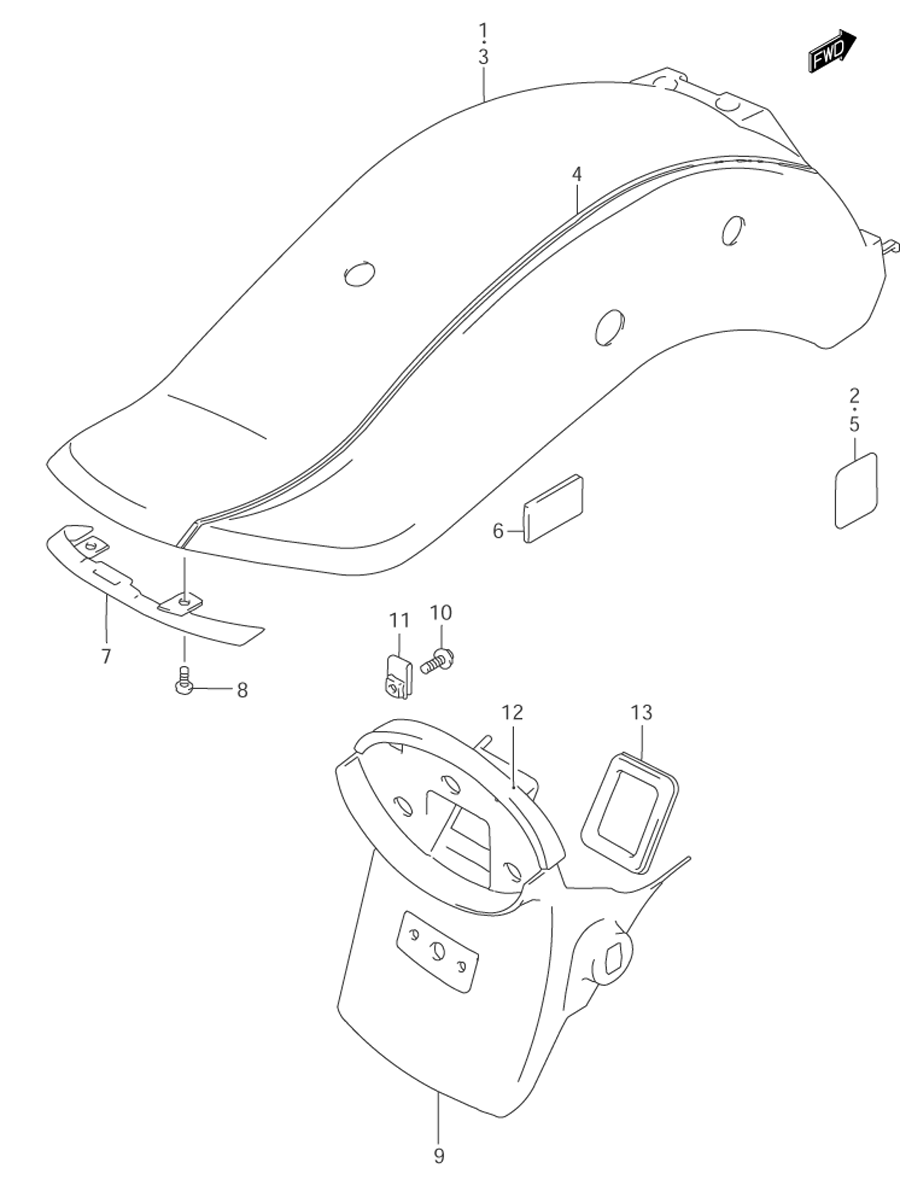

FENDER - REAR для Suzuki VZ800 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    63110-48E50-33J FENDER (REAR) (33J - BLACK)
    FENDER (REAR) (33J - BLACK)
  • 2
    61544-94500 ...PAD, FENDER (REAR)
    ...PAD, FENDER (REAR)
  • 3-1
    63110-48E80-BP8 FENDER (REAR) (BP8 - BLUE/BLACK)
    FENDER (REAR) (BP8 - BLUE/BLACK)
  • 3-2
    63110-48E80-M9U FENDER (REAR) (CANADA) (M9U - RED/BLACK)
    FENDER (REAR) (CANADA) (M9U - RED/BLACK)
  • 4-1
    68170-48E30-BU3 ...TAPE SET, FENDER (REAR) (BU3 - GOLD/BLUE/BLACK)
    ...TAPE SET, FENDER (REAR) (BU3 - GOLD/BLUE/BLACK)
  • 4-2
    68170-48E30-BU2 ...TAPE SET, FENDER (REAR) (CANADA) (BU2 - GRAY/RED/BLACK)
    ...TAPE SET, FENDER (REAR) (CANADA) (BU2 - GRAY/RED/BLACK)
  • 5
    61544-94500 ...PAD, FENDER (REAR)
    ...PAD, FENDER (REAR)
  • 6
    09320-13015 CUSHION
    CUSHION
  • 7
    63112-48E00 COVER, FENDER (REAR)
    COVER, FENDER (REAR)
  • 8
    03541-05123 SCREW
    SCREW
  • 9
    63311-48E00 EXTENSION, FENDER (REAR)
    EXTENSION, FENDER (REAR)
  • 10
    02162-06163 SCREW
    SCREW
  • 11
    47153-19C01 NUT, FENDER EXTENTION (REAR)
    NUT, FENDER EXTENTION (REAR)
  • 12
    63312-48E00 CUSHION, FENDER EXTENSION (REAR)
    CUSHION, FENDER EXTENSION (REAR)
  • 13
    63191-48E00 CAP, FENDER EXTENSION (REAR)
    CAP, FENDER EXTENSION (REAR)
