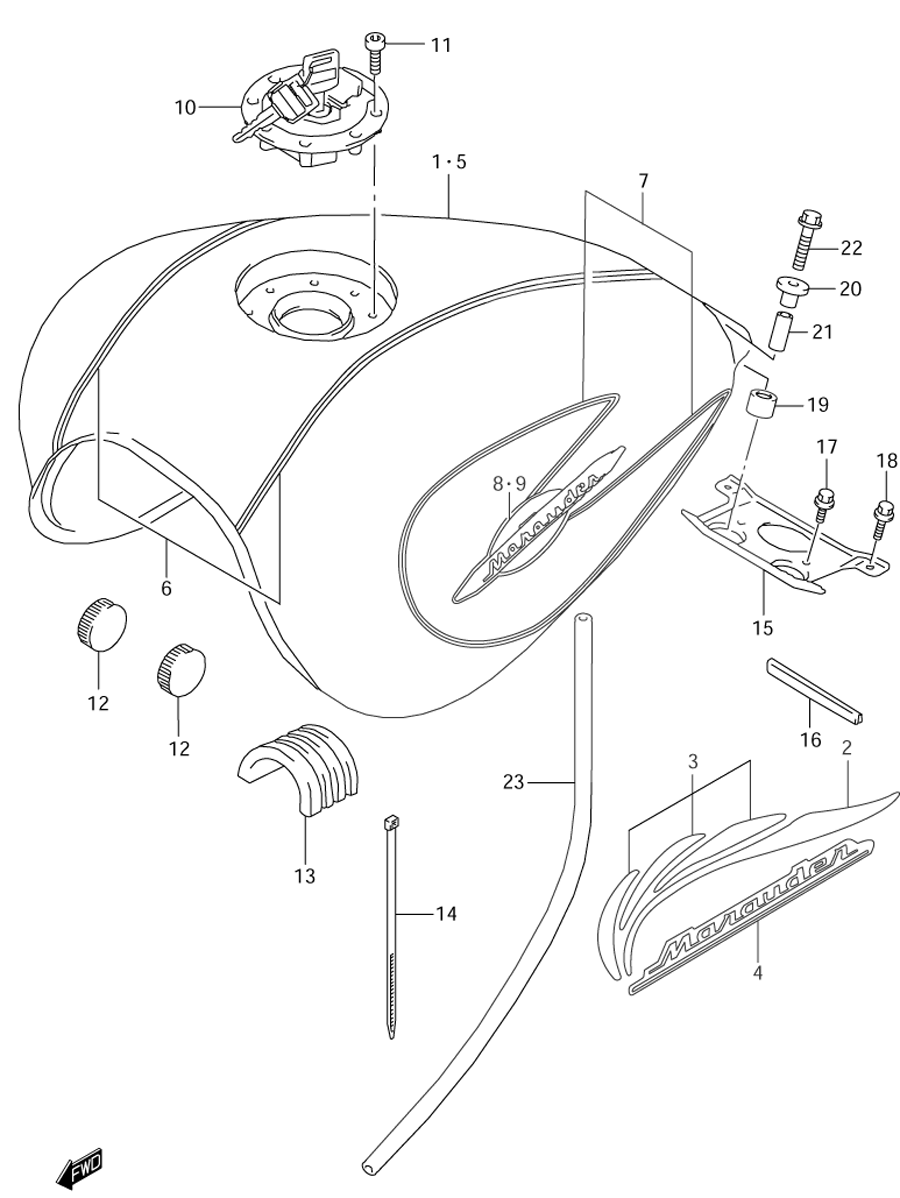

FUEL TANK (FRAME NO.103783 AND ABOVE) для Suzuki VZ800 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-1
    49200-48ED0-33J TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF)
    TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF)
  • 1-2
    49200-48EE0-33J TANK ASSY., FUEL (33J - BLACK) (CALIFORNIA ONLY)
    TANK ASSY., FUEL (33J - BLACK) (CALIFORNIA ONLY)
  • 2
    68110-48E50-0MT ...TAPE SET, FUEL TANK ((0MT - SILVER)
    ...TAPE SET, FUEL TANK ((0MT - SILVER)
  • 3
    68120-48E00 ...EMBLEM SET
    ...EMBLEM SET
  • 4
    68121-48E30-J3J ...EMBLEM (J3J - SILVER/RED/BLACK)
    ...EMBLEM (J3J - SILVER/RED/BLACK)
  • 5-1
    49200-48EG0-BP8 TANK ASSY., FUEL (EXCEPT CALIF.) (BP8 - BLUE/BLACK)
    TANK ASSY., FUEL (EXCEPT CALIF.) (BP8 - BLUE/BLACK)
  • 5-2
    49200-48EG0-M9U TANK ASSY., FUEL (CANADA) (M9U - RED/BLACK)
    TANK ASSY., FUEL (CANADA) (M9U - RED/BLACK)
  • 5-3
    49200-48EH0-BP8 TANK ASSH, FUEL (CALIFORNIA ONLY) (BP8 - BLUE/BLACK)
    TANK ASSH, FUEL (CALIFORNIA ONLY) (BP8 - BLUE/BLACK)
  • 6-1
    68110-48E60-BU3 ...TAPE SET (UPPER) (BU3 - GOLD/BLUE/BLACK)
    ...TAPE SET (UPPER) (BU3 - GOLD/BLUE/BLACK)
  • 6-2
    68110-48E60-BU2 ...TAPE SET (UPPER) (CANADA) (BU2 - GRAY/RED/BLACK)
    ...TAPE SET (UPPER) (CANADA) (BU2 - GRAY/RED/BLACK)
  • 7-1
    68110-48E70-BT9 ...TAPE SET, SIDE (BT9 - GOLD/SILVER/BLACK/BLUE
    ...TAPE SET, SIDE (BT9 - GOLD/SILVER/BLACK/BLUE
  • 7-2
    68110-48E70-BT8 ...TAPE SET, SIDE (CANADA) (BT8 - GRAY/COPPER GOLD/BLACK/RED
    ...TAPE SET, SIDE (CANADA) (BT8 - GRAY/COPPER GOLD/BLACK/RED
  • 8
    68111-48E20 ...EMBLEM, FUEL TANK (RIGHT)
    ...EMBLEM, FUEL TANK (RIGHT)
  • 9
    68121-48E20 ...EMBLEM, FUEL TANK (LEFT)
    ...EMBLEM, FUEL TANK (LEFT)
  • 10-1
    44200-33850 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 10-2
    44200-33860 CAP SET, FUEL TANK (CALIFORNIA ONLY)
    CAP SET, FUEL TANK (CALIFORNIA ONLY)
  • 11
    09106-05017 BOLT (L:20)
    BOLT (L:20)
  • 12
    09329-10007 CUSHION
    CUSHION
  • 13
    44541-13E00 CUSHION, FUEL TANK (UPPER)
    CUSHION, FUEL TANK (UPPER)
  • 14
    09407-25402 CLAMP (L:248)
    CLAMP (L:248)
  • 15
    44550-48E01 BRACKET, FUEL TANK (REAR)
    BRACKET, FUEL TANK (REAR)
  • 16
    47512-47D00 PROTECTOR
    PROTECTOR
  • 17
    01550-06123 BOLT (FRONT)
    BOLT (FRONT)
  • 18
    01550-06163 BOLT (REAR)
    BOLT (REAR)
  • 19
    44542-48E00 CUSHION, FUEL TANK (REAR/LOWER)
    CUSHION, FUEL TANK (REAR/LOWER)
  • 20
    09320-10022 CUSHION (UPPER)
    CUSHION (UPPER)
  • 21
    09180-06067 SPACER (6.5X10.5X22.5)
    SPACER (6.5X10.5X22.5)
  • 22
    01550-06353 BOLT
    BOLT
  • 23
    44423-48E01 HOSE, DRAIN
    HOSE, DRAIN
