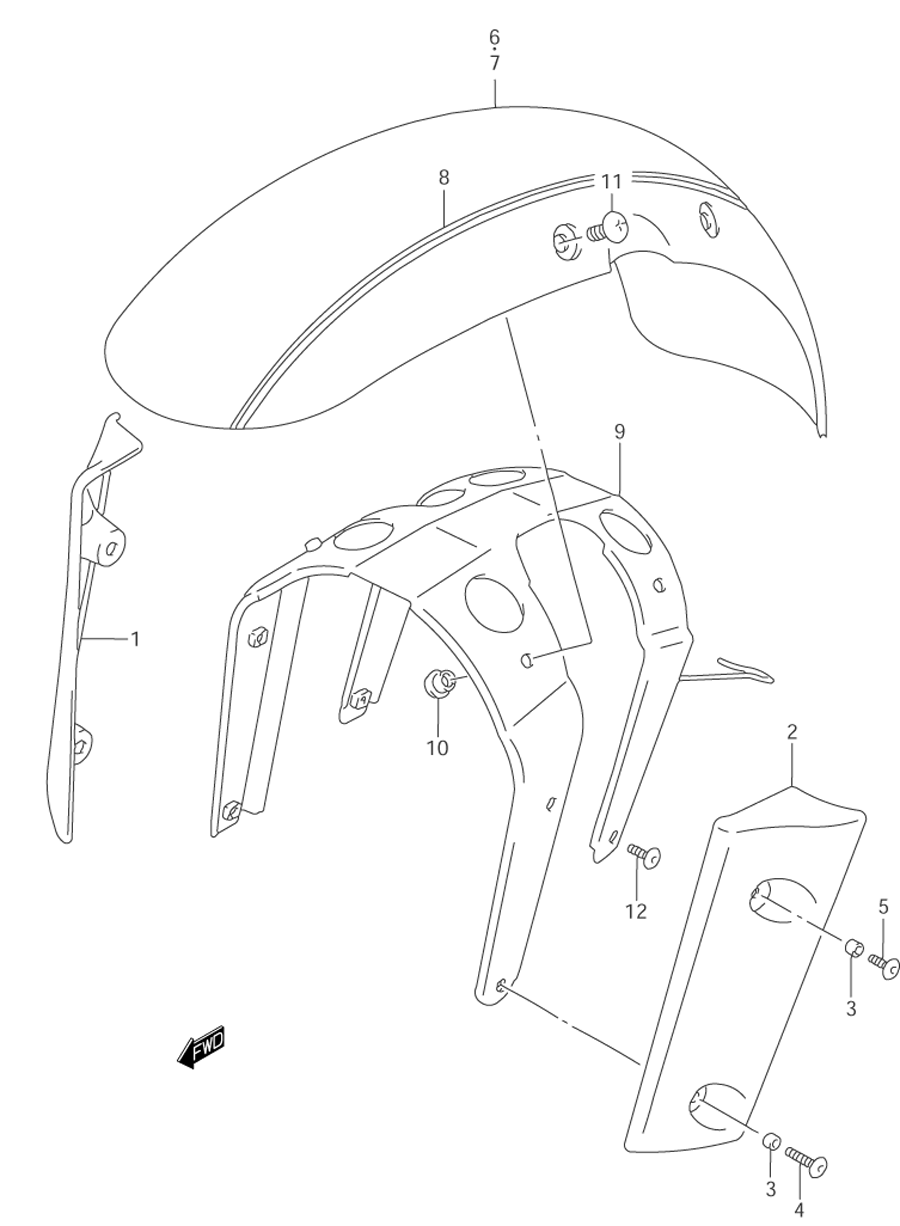

FENDER - FRONT для Suzuki VZ800 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    51881-48E00 COVER, FORK SIDE (FRONT/RIGHT)
    COVER, FORK SIDE (FRONT/RIGHT)
  • 2
    51882-48E00 COVER, FORK SIDE (FRONT/LEFT)
    COVER, FORK SIDE (FRONT/LEFT)
  • 3
    09180-06245 SPACER (6.1X8X3.5)
    SPACER (6.1X8X3.5)
  • 4
    09139-06028 SCREW (LOWER) (6X20)
    SCREW (LOWER) (6X20)
  • 5
    09139-06027 SCREW (UPPER) (6X12)
    SCREW (UPPER) (6X12)
  • 6
    53111-48E00-33J FENDER (FRONT) (33J - BLACK)
    FENDER (FRONT) (33J - BLACK)
  • 7-1
    53110-48E80-BP8 FENDER (FRONT) (BP8 - BLUE/BLACK)
    FENDER (FRONT) (BP8 - BLUE/BLACK)
  • 7-2
    53110-48E80-M9U FENDER (FRONT) (CANADA) (M9U - RED/BLACK)
    FENDER (FRONT) (CANADA) (M9U - RED/BLACK)
  • 8-1
    68150-48E30-BU3 ...TAPE SET, FENDER (FRONT) (BU3 - GOLD/BLUE/BLACK)
    ...TAPE SET, FENDER (FRONT) (BU3 - GOLD/BLUE/BLACK)
  • 8-2
    68150-48E30-BU2 ...TAPE SET, FENDER (FRONT) (CANADA) (BU2 - GRAY/RED/BLACK)
    ...TAPE SET, FENDER (FRONT) (CANADA) (BU2 - GRAY/RED/BLACK)
  • 9
    53120-48E00 BRACE, FENDER (FRONT)
    BRACE, FENDER (FRONT)
  • 10
    53122-33D00 ...NUT
    ...NUT
  • 11
    09139-06027 SCREW (6X12)
    SCREW (6X12)
  • 12
    09139-06030 SCREW (6X16)
    SCREW (6X16)
