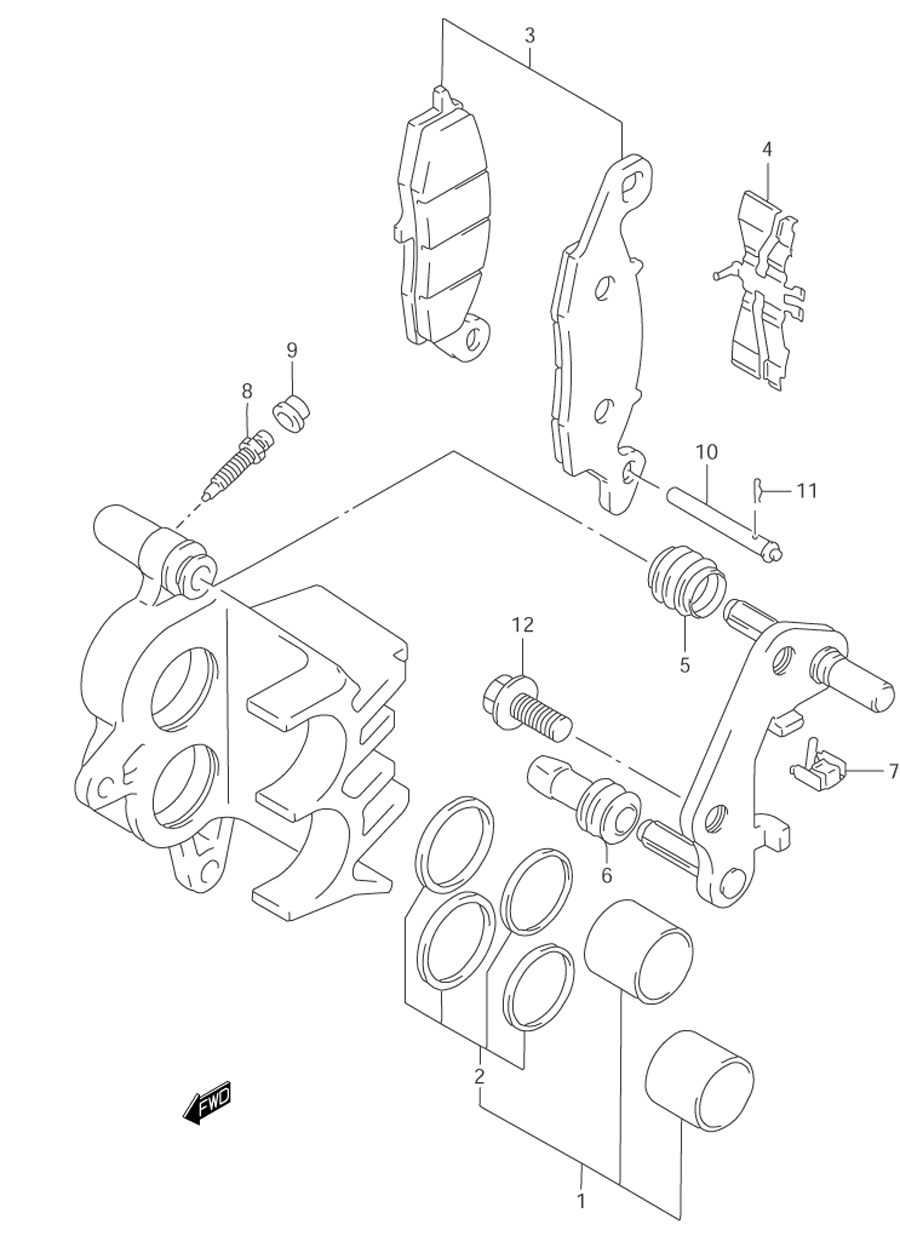

BRAKE - FRONT CALIPER для Suzuki VZ800 Y - 2000 года выпуска`
-
№АртикулНазвание
-
59100-33D21 CALIPER ASSY. (FRONT/RIGHT)CALIPER ASSY. (FRONT/RIGHT)
-
159301-20820 ...PISTON SET...PISTON SET
-
259300-35820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
359100-33870 ...PAD SET...PAD SET
-
459115-33D00 ...SPRING...SPRING
-
559112-44B00 ...BOOT...BOOT
-
659313-36500 ...INSULATOR...INSULATOR
-
759116-33D00 ...GUIDE...GUIDE
-
859121-18410 ...BLEEDER...BLEEDER
-
955156-66310 ...CAP...CAP
-
1059141-44B01 ...PIN...PIN
-
1169142-45000 ...CLIP...CLIP
-
1201550-10257 BOLTBOLT
