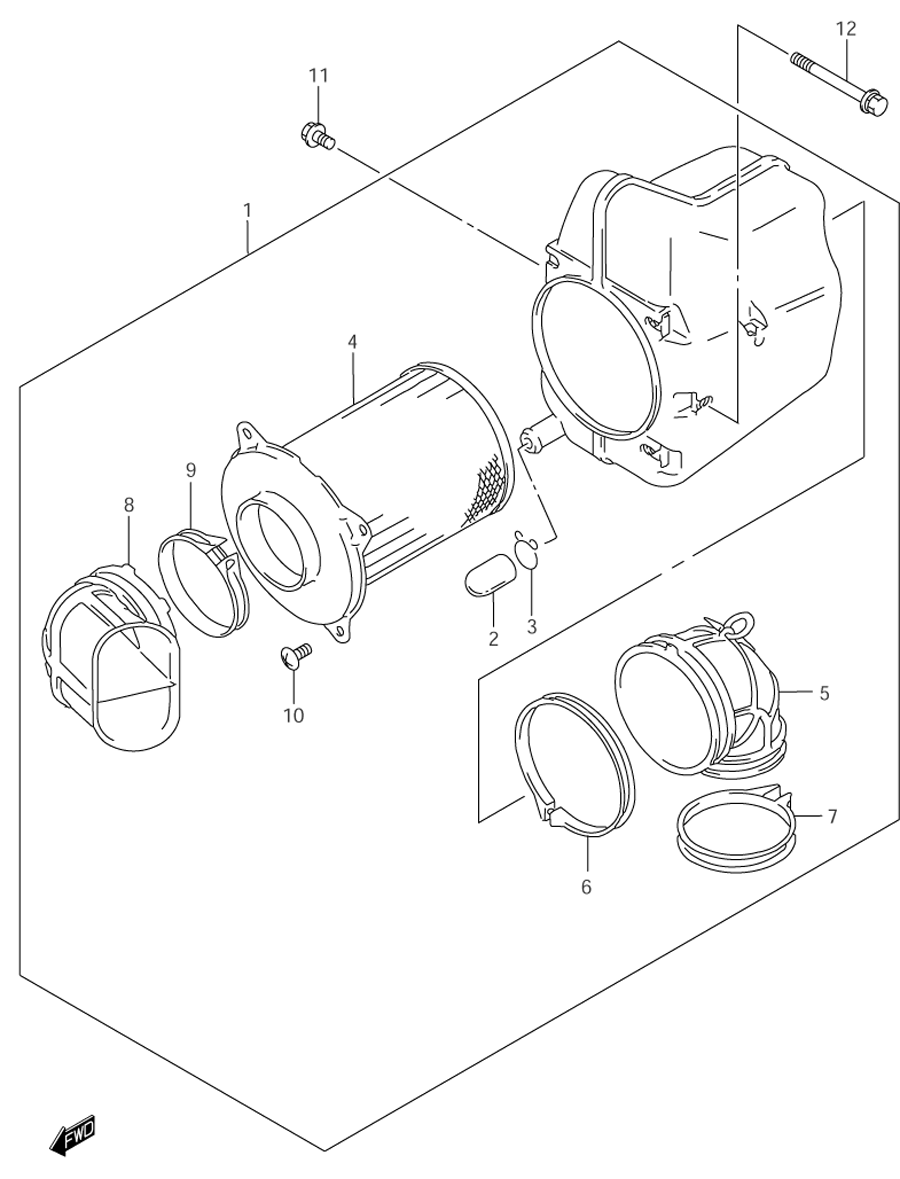

AIR CLEANER (FRONT) для Suzuki VZ800 Y - 2000 года выпуска`
-
№АртикулНазвание
-
113700-48E50 AIR CLEANER ASSY., FRONTAIR CLEANER ASSY., FRONT
-
213859-41B10 ...PLUG...PLUG
-
309401-14301 ...CLIP...CLIP
-
413780-48E00 ...FILTER ASSY....FILTER ASSY.
-
513881-38B00 ...TUBE, OUTLET...TUBE, OUTLET
-
609402-72207 ...CLAMP...CLAMP
-
709402-58208 ...CLAMP...CLAMP
-
813891-45C30 ...TUBE, INLET...TUBE, INLET
-
909402-56208 ...CLAMP...CLAMP
-
1002142-05107 ...SCREW...SCREW
-
11-202142-06123 BOLTBOLT
-
12-202142-06553 BOLTBOLT
