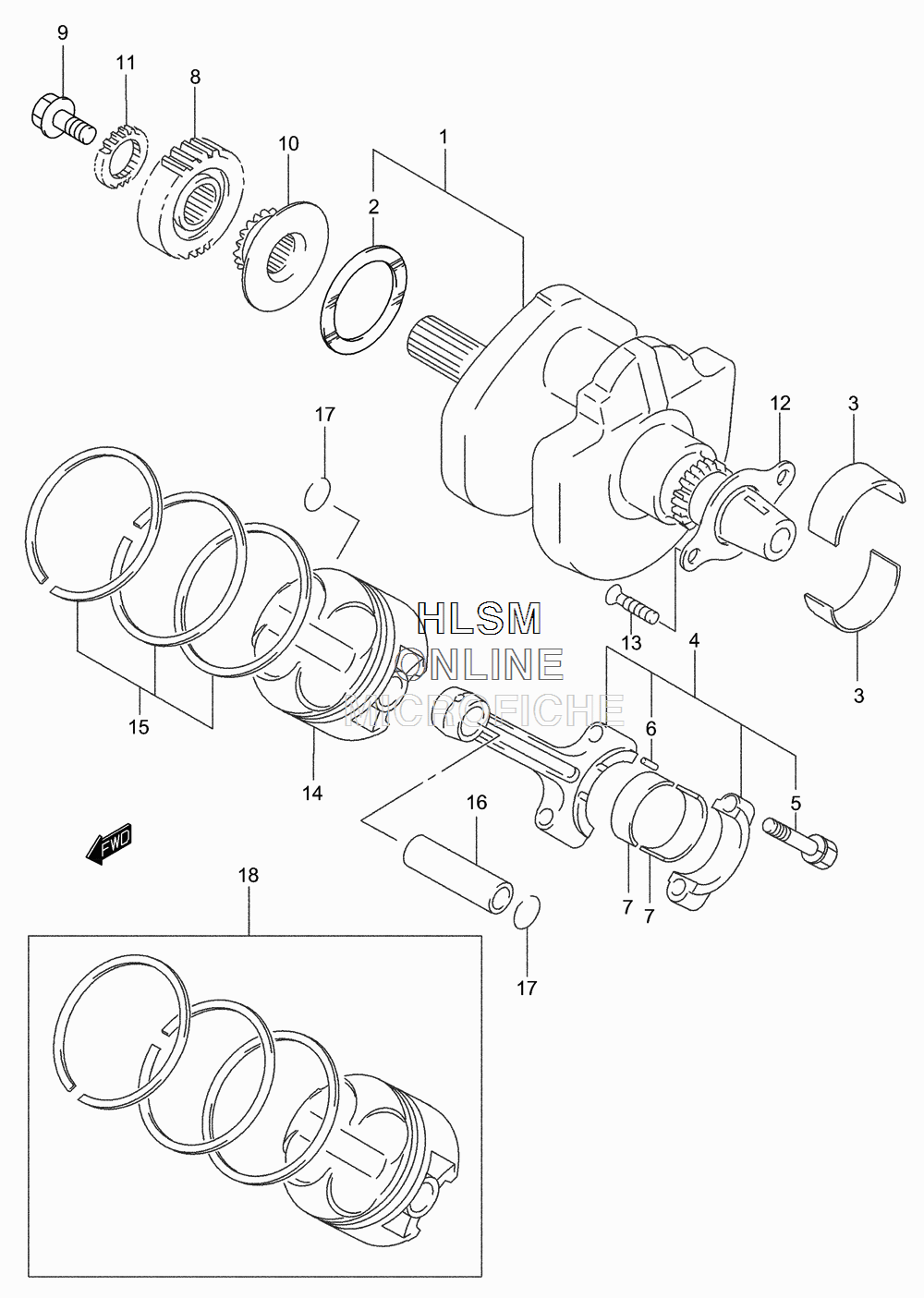

CRANKSHAFT W/ PISTON для Suzuki SV650 Y - 2000 года выпуска`
-
№АртикулНазвание
-
112000-20840 CRANKSHAFT SET (INC. 2)CRANKSHAFT SET (INC. 2)
-
212228-19F00-0A0 WASHER, THRUST (T:1.925)WASHER, THRUST (T:1.925)
-
212228-19F00-0B0 WASHER, THRUST (T:1.95)WASHER, THRUST (T:1.95)
-
212228-19F00-0C0 WASHER, THRUST (T:1.975)WASHER, THRUST (T:1.975)
-
212228-19F00-0D0 WASHER, THRUST (T:2.0)WASHER, THRUST (T:2.0)
-
212228-19F00-0E0 WASHER, THRUST (T:2.025)WASHER, THRUST (T:2.025)
-
212228-19F00-0F0 WASHER, THRUST (T:2.05)WASHER, THRUST (T:2.05)
-
212228-19F00-0G0 WASHER, THRUST (T:2.075)WASHER, THRUST (T:2.075)
-
212228-19F00-0H0 WASHER, THRUST (T:2.1)WASHER, THRUST (T:2.1)
-
212228-19F00-0I0 WASHER, THRUST (T:2.125)WASHER, THRUST (T:2.125)
-
212228-19F00-0J0 WASHER, THRUST (T:2.15)WASHER, THRUST (T:2.15)
-
312229-19F10-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
312229-19F10-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
312229-19F10-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
412160-20F00 CONNECTING ROD ASSY (INC. 5-6)CONNECTING ROD ASSY (INC. 5-6)
-
512163-17C50 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
612165-27A50 PIN, CONNECTING RODPIN, CONNECTING ROD
-
712164-46E01-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
712164-46E01-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
712164-46E01-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
712164-46E01-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
821111-20F00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
921112-19F00 BOLT, PRIMARY DRIVE GEARBOLT, PRIMARY DRIVE GEAR
-
1012731-19F00 SPROCKET, CAM CHAIN DRIVESPROCKET, CAM CHAIN DRIVE
-
1117451-19F00 GEAR, WATER PUMP DRIVEGEAR, WATER PUMP DRIVE
-
1212541-20F00 RETAINER, CRANKSHAFT BRG LEFT HANDRETAINER, CRANKSHAFT BRG LEFT HAND
-
1309126-06011 SCREW, 6X12SCREW, 6X12
-
1412111-20F00-0F0 PISTONPISTON
-
1512140-20F00 RING SET, PISTONRING SET, PISTON
-
1612151-05A00 PIN, PISTONPIN, PISTON
-
1709381-20004 CIRCLIPCIRCLIP
-
1812100-20F00-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
-
1812100-20F00-100 PISTON SET (OS:1.0) (OPT)PISTON SET (OS:1.0) (OPT)
