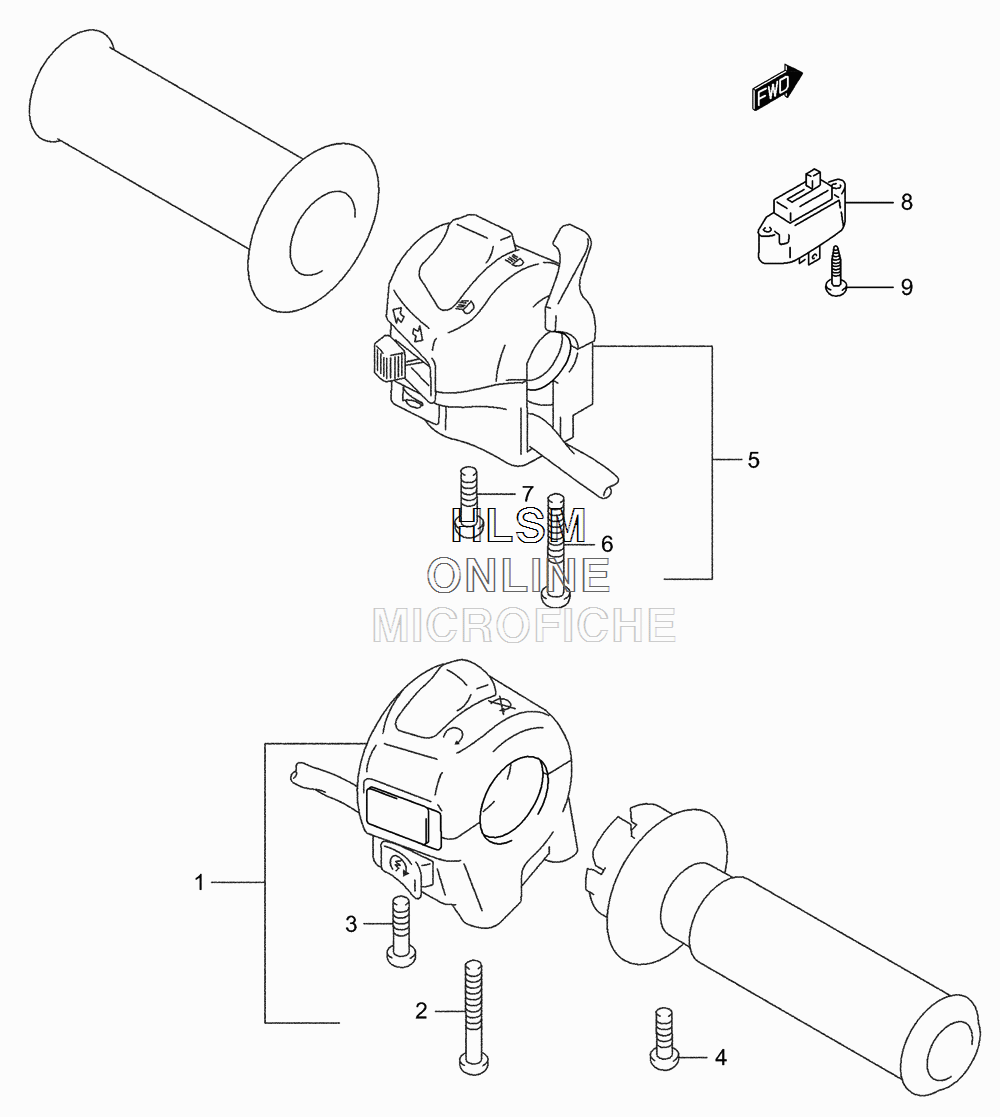

HANDLEBAR - LEVERS / SWITCHES для Suzuki SV650 Y - 2000 года выпуска`
-
№АртикулНазвание
-
137200-27E31 SWITCH ASSY, HANDLE RIGHT HAND (INC. 2-3)SWITCH ASSY, HANDLE RIGHT HAND (INC. 2-3)
-
202112-05505 SCREWSCREW
-
302112-05305 SCREWSCREW
-
402112-05103 SCREW, THROTTLE CABLESCREW, THROTTLE CABLE
-
537400-23E30 SWITCH ASSY, HANDLE LEFT HANDSWITCH ASSY, HANDLE LEFT HAND
-
602112-05455 SCREWSCREW
-
709125-05066 SCREW (5X25)SCREW (5X25)
-
837560-38A00 SWITCH ASSY, CLUTCHSWITCH ASSY, CLUTCH
-
937564-26E00 SCREWSCREW
