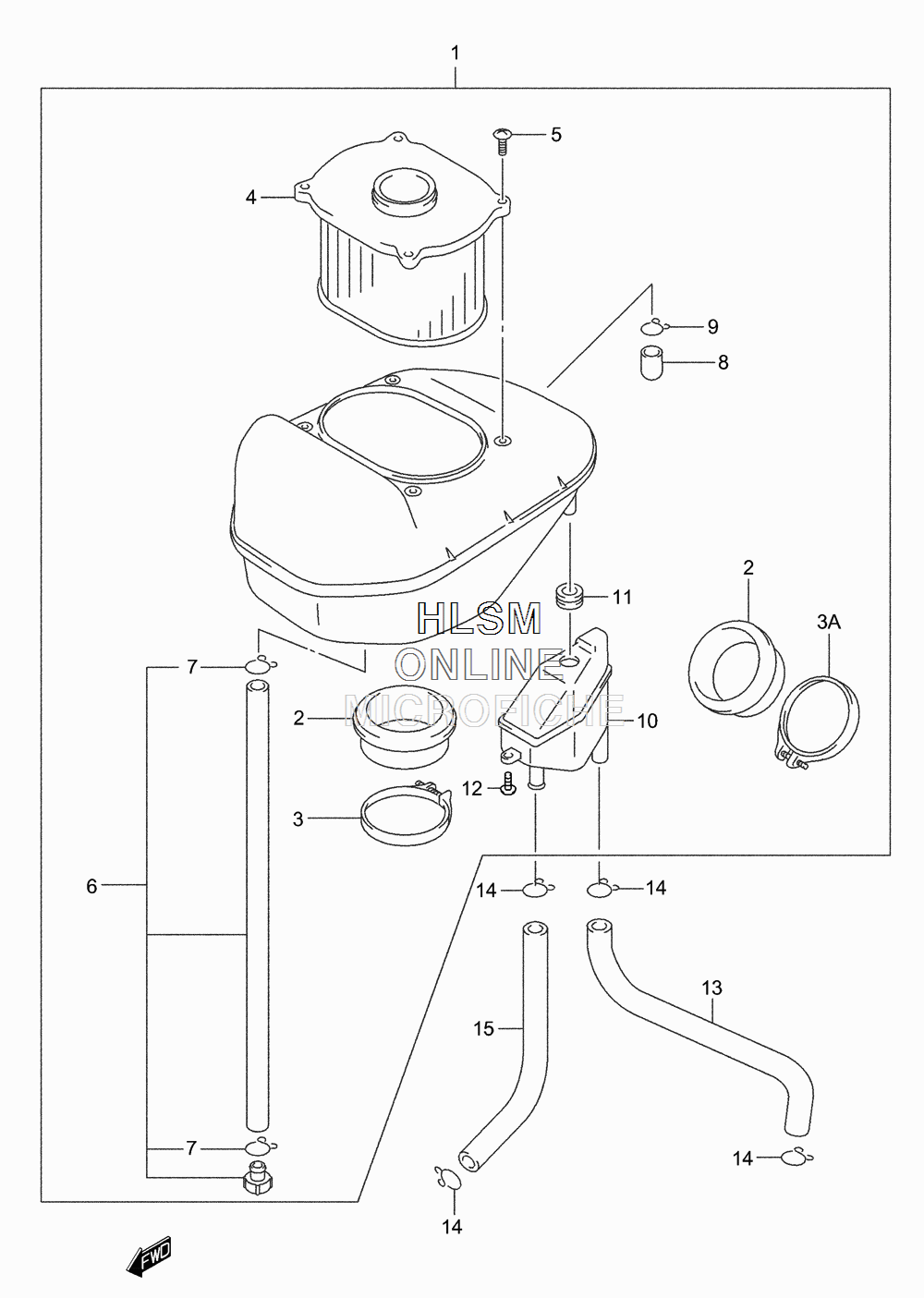

AIR CLEANER для Suzuki SV650 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    13700-20F00 CLEANER ASSY., AIR (UP TO ENGINE NO.141364) (ALL EXCEPT CALIF.)
    CLEANER ASSY., AIR (UP TO ENGINE NO.141364) (ALL EXCEPT CALIF.)
  • 1
    13700-20F10 CLEANER ASSY, AIR (UP TO ENGINE NO.141364) (CALIF. ONLY)
    CLEANER ASSY, AIR (UP TO ENGINE NO.141364) (CALIF. ONLY)
  • 1
    13700-20F01 CLEANER ASSY., AIR (ENGINE NO.141365 AND ABOVE) (ALL EXCEPT CALIF.)
    CLEANER ASSY., AIR (ENGINE NO.141365 AND ABOVE) (ALL EXCEPT CALIF.)
  • 1
    13700-20F11 CLEANER ASSY., AIR (ENGINE NO.141365 AND ABOVE) (INC. 2-12) (CALIF. ONLY)
    CLEANER ASSY., AIR (ENGINE NO.141365 AND ABOVE) (INC. 2-12) (CALIF. ONLY)
  • 2
    13881-20F00 TUBE, OUTLET
    TUBE, OUTLET
  • 3
    13170-20F10 CLAMP, CUTLET TUBE FRONT
    CLAMP, CUTLET TUBE FRONT
  • 3A
    13170-20F00 CLAMP, OUTLET TUBE REAR (UP TO ENGINE NO.141364)
    CLAMP, OUTLET TUBE REAR (UP TO ENGINE NO.141364)
  • 3A
    09402-72203 CLAMP, OUTLET TUBE REAR (ENGINE NO.141365 AND ABOVE)
    CLAMP, OUTLET TUBE REAR (ENGINE NO.141365 AND ABOVE)
  • 4
    13780-20F00 FILTER, AIR CLEANER
    FILTER, AIR CLEANER
  • 5
    02142-05203 SCREW
    SCREW
  • 6
    13870-19F00 TUBE, DRAIN (UP TO ENGINE NO.141364) (ALL EXCEPT CALIF.)
    TUBE, DRAIN (UP TO ENGINE NO.141364) (ALL EXCEPT CALIF.)
  • 6
    13870-20F10 TUBE, DRAIN (UP TO ENGINE NO.141364) (CALIF. ONLY)
    TUBE, DRAIN (UP TO ENGINE NO.141364) (CALIF. ONLY)
  • 6
    13870-20F11 TUBE, DRAIN (ENGINE NO.141365 AND ABOVE)
    TUBE, DRAIN (ENGINE NO.141365 AND ABOVE)
  • 7
    09401-14301 CLIP
    CLIP
  • 8
    13859-41B10 PLUG (ALL EXCEPT CALIF.)
    PLUG (ALL EXCEPT CALIF.)
  • 9
    09401-14301 CLIP (ALL EXCEPT CALIF.)
    CLIP (ALL EXCEPT CALIF.)
  • 10
    13840-20F00 TANK, OIL RETURN (UP TO ENGINE NO.141364) (CALIF. ONLY)
    TANK, OIL RETURN (UP TO ENGINE NO.141364) (CALIF. ONLY)
  • 10
    13840-20F01 TANK, OIL RETURN (ENGINE NO.141365 AND ABOVE)
    TANK, OIL RETURN (ENGINE NO.141365 AND ABOVE)
  • 11
    09308-13001 GROMMET
    GROMMET
  • 12
    03142-05163 SCREW
    SCREW
  • 13
    13851-20F00 TUBE, BREATHER CRANKCASE (UP TO ENGINE NO. 117740)
    TUBE, BREATHER CRANKCASE (UP TO ENGINE NO. 117740)
  • 13
    13851-20F10 TUBE, BREATHER CRANKCASE (ENGINE NO. 117741 AND ABOVE)
    TUBE, BREATHER CRANKCASE (ENGINE NO. 117741 AND ABOVE)
  • 14
    09401-15101 CLIP
    CLIP
  • 15
    09355-11165-600 TUBE, BREATHER CYLINDER (11X16X600)
    TUBE, BREATHER CYLINDER (11X16X600)
