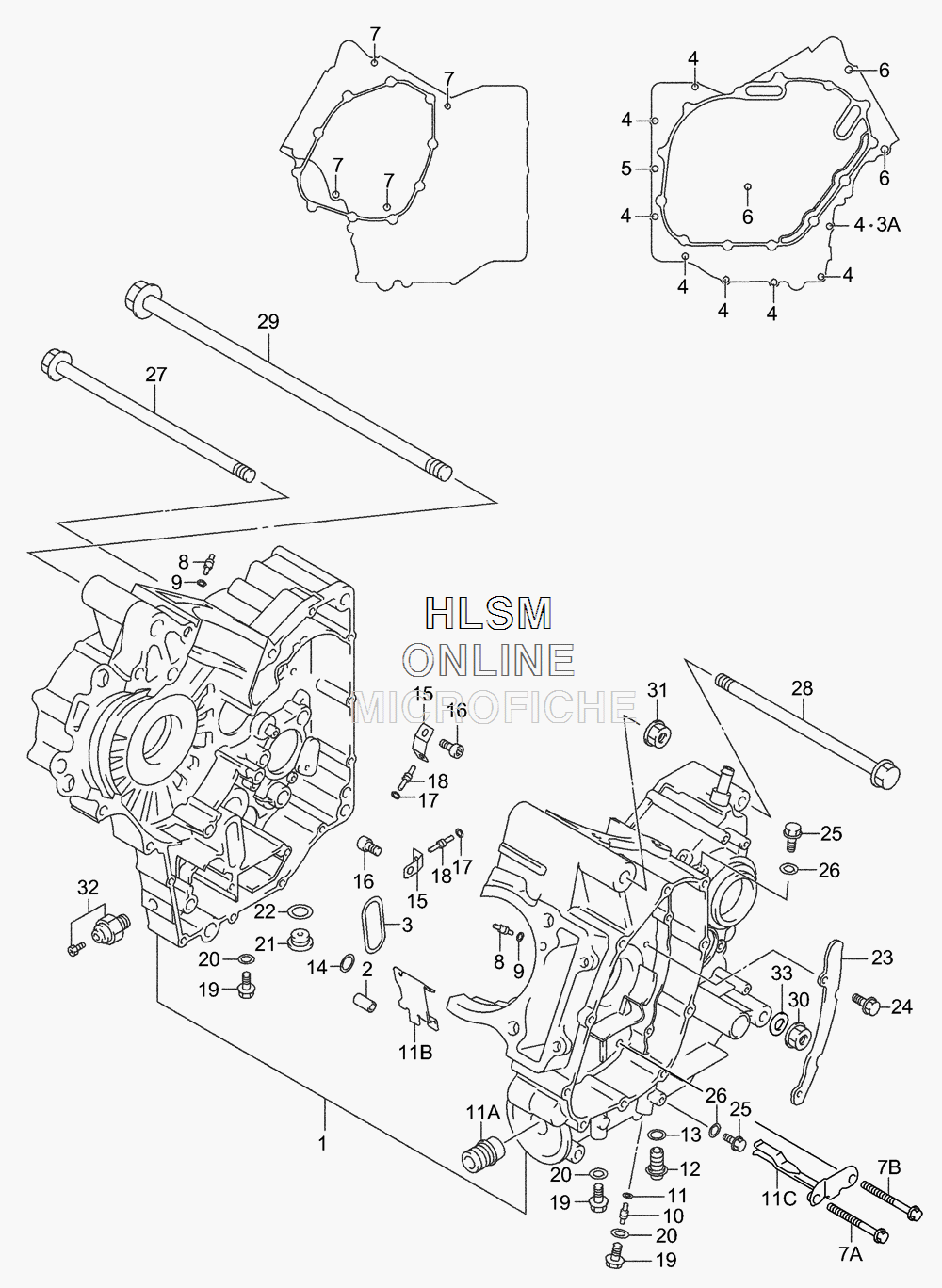

CRANKCASE для Suzuki SV650 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    11301-20830 CRANKCASE SET (UP TO ENGINE NO. 111682)
    CRANKCASE SET (UP TO ENGINE NO. 111682)
  • 1
    11301-20831 CRANKCASE SET (ENGINE NO. 111683 TO 119504)
    CRANKCASE SET (ENGINE NO. 111683 TO 119504)
  • 1
    11301-20835 CRANKCASE SET (ENGINE NO. 119505 AND UP)
    CRANKCASE SET (ENGINE NO. 119505 AND UP)
  • 1
    11301-20840 CRANKCASE SET (UP TO ENGINE NO. 119504) (INC. 2-11C)
    CRANKCASE SET (UP TO ENGINE NO. 119504) (INC. 2-11C)
  • 2
    09206-11017 PIN (11X20)
    PIN (11X20)
  • 3
    11315-19F00 O RING, CRANKCASE
    O RING, CRANKCASE
  • 3A
    09168-06023 GASKET (5.8X13X1.2) (ENGINE NO. 111683 AND UP)
    GASKET (5.8X13X1.2) (ENGINE NO. 111683 AND UP)
  • 4
    01547-06503 BOLT
    BOLT
  • 5
    01547-06507 BOLT 6 X 50
    BOLT 6 X 50
  • 6
    07120-08553 BOLT
    BOLT
  • 7
    07120-08803 BOLT (UP TO ENGINE NO. 119504)
    BOLT (UP TO ENGINE NO. 119504)
  • 7
    07120-08803 BOLT (ENGINE NO. 119505 AND UP)
    BOLT (ENGINE NO. 119505 AND UP)
  • 7A
    11322-20F00 BOLT (8X90) (ENGINE NO. 119505 AND UP)
    BOLT (8X90) (ENGINE NO. 119505 AND UP)
  • 7B
    09103-08066 BOLT (8X95) (ENGINE NO. 119505 AND UP)
    BOLT (8X95) (ENGINE NO. 119505 AND UP)
  • 8
    09493-28010 JET, OIL GALLERY CYLINDER
    JET, OIL GALLERY CYLINDER
  • 9
    09280-04004 O RING (D:1.2,ID:4.0)
    O RING (D:1.2,ID:4.0)
  • 10
    09493-28010 JET, OIL GALLERY MISSION
    JET, OIL GALLERY MISSION
  • 11
    09280-04004 O RING (D:1.2,ID:4.0)
    O RING (D:1.2,ID:4.0)
  • 11A
    16591-06B00 UNION, OIL FILTER STAND
    UNION, OIL FILTER STAND
  • 11B
    11391-20F10 PLATE, OIL (UP TO ENGINE NO. 119504)
    PLATE, OIL (UP TO ENGINE NO. 119504)
  • 11C
    11391-20F20 PLATE, OIL (ENGINE NO. 119505 AND UP)
    PLATE, OIL (ENGINE NO. 119505 AND UP)
  • 12
    09247-12106 PLUG (12X20)
    PLUG (12X20)
  • 13
    09168-12002 GASKET (12.1X16.2X3.7)
    GASKET (12.1X16.2X3.7)
  • 14
    09280-12009 O RING (D:1.9,ID:12.6)
    O RING (D:1.9,ID:12.6)
  • 15
    16438-19F00 PLATE, PISTON COOLING JET
    PLATE, PISTON COOLING JET
  • 16
    09106-06075 BOLT (6X12)
    BOLT (6X12)
  • 17
    09280-04004 O RING (D:1.2,ID:4.0)
    O RING (D:1.2,ID:4.0)
  • 18
    09493-26007 JET (130)
    JET (130)
  • 19
    01550-08123 BOLT
    BOLT
  • 20
    09168-08029 GASKET
    GASKET
  • 21
    09248-16012 PLUG, 16X8
    PLUG, 16X8
  • 22
    09168-16002 GASKET (16X22X2)
    GASKET (16X22X2)
  • 23
    11323-19F00 PLATE, OIL SEPARATOR
    PLATE, OIL SEPARATOR
  • 24
    01547-06123 BOLT 6X12 BLK
    BOLT 6X12 BLK
  • 25
    01550-06123 BOLT
    BOLT
  • 26
    09168-06023 GASKET (5.8X13X1.2)
    GASKET (5.8X13X1.2)
  • 27
    09103-10226 BOLT (10X260)
    BOLT (10X260)
  • 28
    09103-10041 BOLT (10X215)
    BOLT (10X215)
  • 29
    09103-12054 BOLT (12X310)
    BOLT (12X310)
  • 30
    08319-31107 NUT (UP TO ENGINE NO. 124508)
    NUT (UP TO ENGINE NO. 124508)
  • 30
    09159-10058 NUT (ENGINE NO. 124509 AND UP)
    NUT (ENGINE NO. 124509 AND UP)
  • 31
    08319-31128 NUT
    NUT
  • 32
    37820-33D00 SWITCH ASSY, OIL PRESSURE
    SWITCH ASSY, OIL PRESSURE
  • 33
    09160-10060 WASHER (10.5X22X2.3) (ENGINE NO. 124509 AND UP)
    WASHER (10.5X22X2.3) (ENGINE NO. 124509 AND UP)
