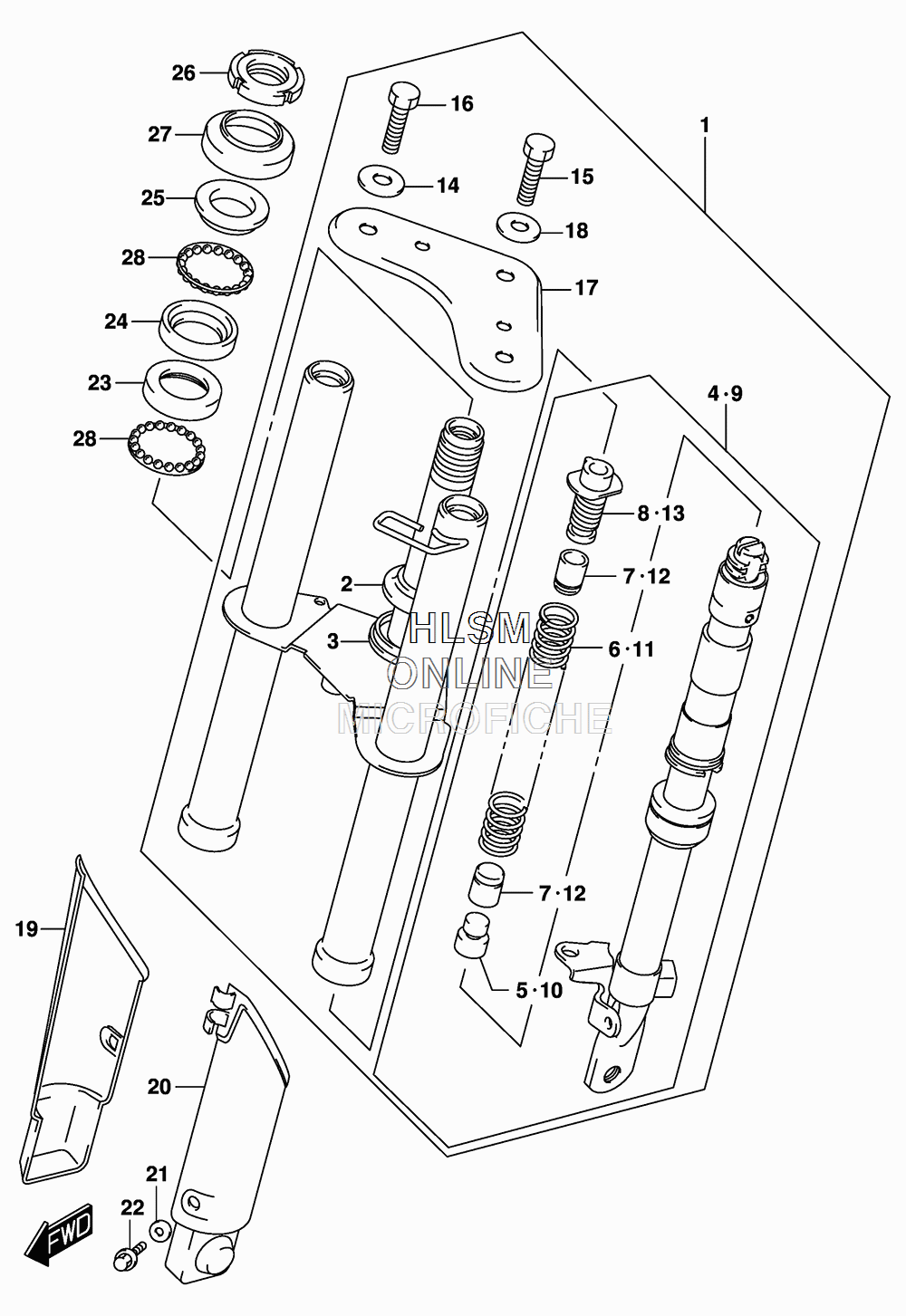

SUSPENSION - FRONT FORK для Suzuki DR-Z70 - 2016 года выпуска`

№

Артикул

Название
1

51100-14821 FORK SET, FRONT

FORK SET, FRONT

130 ₽
2

51622-14H00 ...RACE, STEERING OUTER

...RACE, STEERING OUTER

1 780 ₽
3

51644-14H00 ...SEAL, STEERING LOWER

...SEAL, STEERING LOWER

1 230 ₽
4

51110-14H00 ...TUBE ASSY, FRONT FORK LOWER RH

...TUBE ASSY, FRONT FORK LOWER RH

60 710 ₽
5

51116-14H00 ......STOPPER

......STOPPER

0 ₽
6

51171-14H00 ......SPRING

......SPRING

0 ₽
7

51292-14H00 ......STOPPER RUBBER

......STOPPER RUBBER

1 520 ₽
8

51422-14H00 ......SPRING, JOINT B

......SPRING, JOINT B

0 ₽
9

51120-14H00 ...TUBE ASSY, FRONT FORK LOWER LH

...TUBE ASSY, FRONT FORK LOWER LH

56 160 ₽
10

51116-14H00 ......STOPPER

......STOPPER

0 ₽
11

51171-14H00 ......SPRING

......SPRING

0 ₽
12

51292-14H00 ......STOPPER RUBBER

......STOPPER RUBBER

1 520 ₽
13

51422-14H00 ......SPRING, JOINT B

......SPRING, JOINT B

0 ₽
14

09160-10144 ...WASHER (10X30X2.5)

...WASHER (10X30X2.5)

730 ₽
15

01550-1035A ...BOLT (CENTER)

...BOLT (CENTER)

600 ₽
16

01550-1035A ...BOLT (SIDE)

...BOLT (SIDE)

600 ₽
17

51310-14H00 ...BRACKET, UPPER

...BRACKET, UPPER

9 290 ₽
18

09160-10128-XC0 ...WASHER (10.5X25X3.2)

...WASHER (10.5X25X3.2)

13 000 ₽
19

51501-14H00-019 PROTECTOR, FRONT FORK RH (BLACK)

PROTECTOR, FRONT FORK RH (BLACK)

88 400 ₽
20

51511-14H00-019 PROTECTOR, FRONT FORK LH (BLACK)

PROTECTOR, FRONT FORK LH (BLACK)

88 400 ₽
21

09169-06071 WASHER

WASHER

440 ₽
22

01547-0612A BOLT

BOLT

350 ₽
23

51611-14H00 RACE, STEERING INNER LOWER

RACE, STEERING INNER LOWER

1 890 ₽
24

51611-20002 RACE, STEERING INNER UPPER

RACE, STEERING INNER UPPER

1 780 ₽
25

51621-28000 RACE, STEERING OUTER

RACE, STEERING OUTER

1 780 ₽
26

51631-28000 NUT, STEERING STEM

NUT, STEERING STEM

2 580 ₽
27

51643-25001 SEAL, STEERING UPPER

SEAL, STEERING UPPER

790 ₽
28

09269-27001 BEARING (27X40.5X5)

BEARING (27X40.5X5)

2 110 ₽
