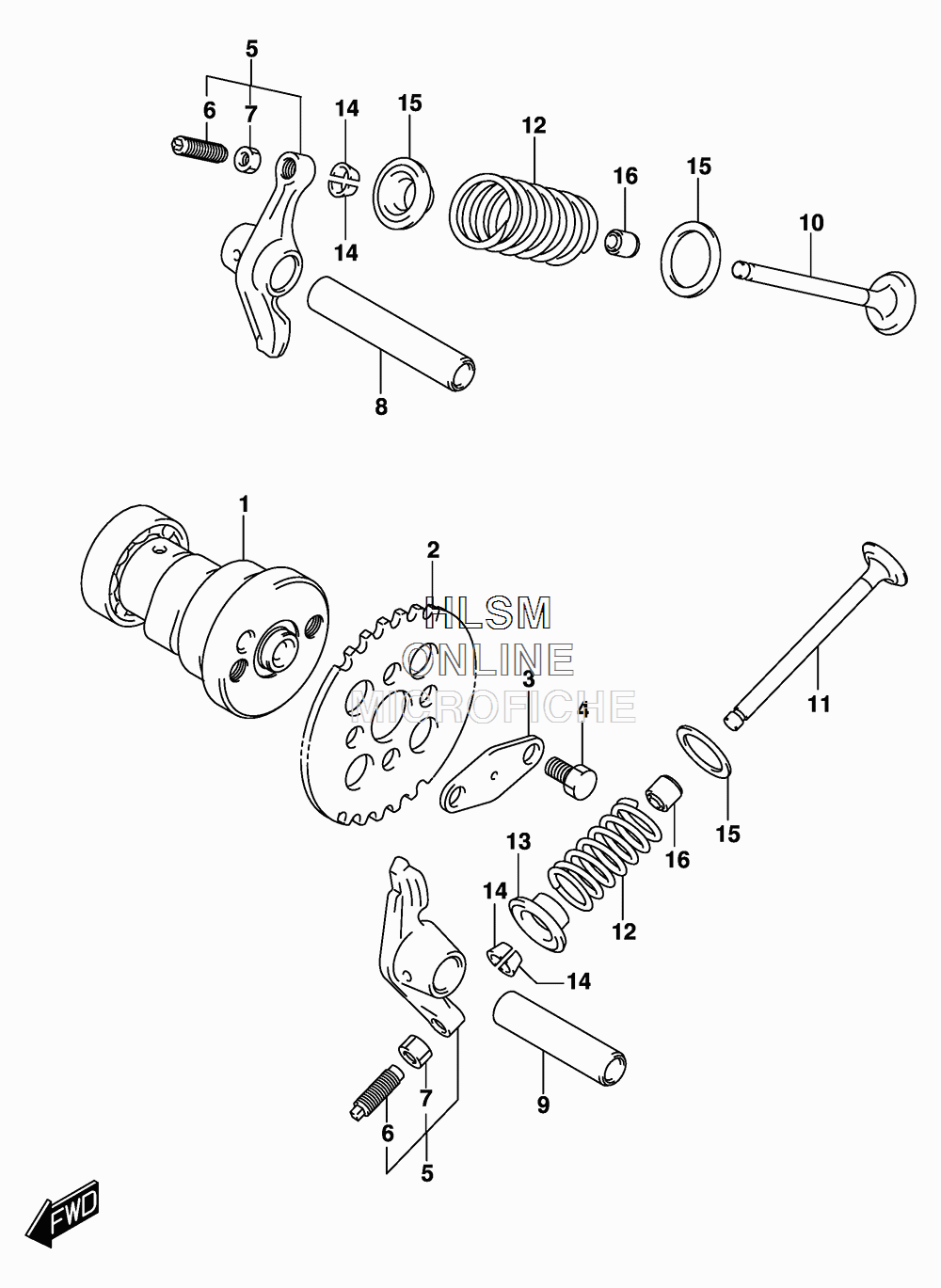

CAMSHAFT W/ VALVES для Suzuki DR-Z70 - 2016 года выпуска
-
№АртикулНазвание
-
112710-02A10 CAMSHAFT ASSYCAMSHAFT ASSY
-
212741-09405 SPROCKET, CAMSHAFT (NT:28)SPROCKET, CAMSHAFT (NT:28)
-
312714-09401 WASHER, SPROCKETWASHER, SPROCKET
-
409111-06032 BOLT (6X10.5)BOLT (6X10.5)
-
512840-30A11 ARM, VALVE LOCKERARM, VALVE LOCKER
-
612842-49201 ...SCREW...SCREW
-
712843-27A00 ...NUT...NUT
-
812861-09401 SHAFT, VALVE LOCKER ARM INSHAFT, VALVE LOCKER ARM IN
-
912871-09401 SHAFT, VALVE LOCKER ARM EXSHAFT, VALVE LOCKER ARM EX
-
1012911-09D00 VALVE, INTAKEVALVE, INTAKE
-
1112912-02A00 VALVE, EXHAUSTVALVE, EXHAUST
-
1212921-36G00 SPRING, VALVESPRING, VALVE
-
1312931-09420 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
1412932-27A00 COTTER, VALVECOTTER, VALVE
-
1512934-09400 SEAT, SPRINGSEAT, SPRING
-
1609289-05008 OIL SEAL (5X10.5X8.4)OIL SEAL (5X10.5X8.4)
