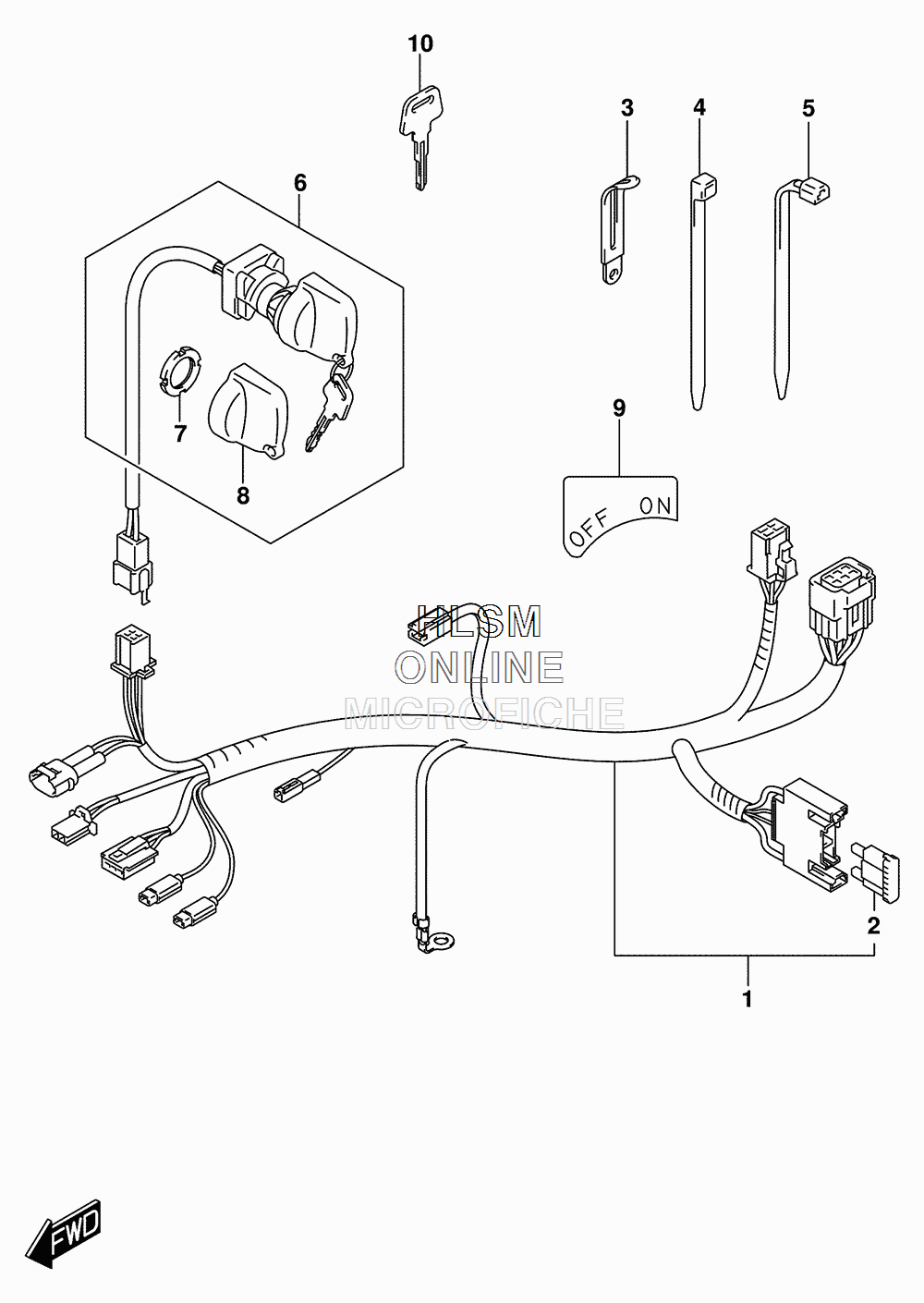

ELECTRICAL - WIRING HARNESS для Suzuki DR-Z70 - 2016 года выпуска`
-
№АртикулНазвание
-
136610-14H00 HARNESS, WIRINGHARNESS, WIRING
-
209481-10101 ...FUSE (10A)...FUSE (10A)
-
309404-06429 CLAMP (L:45)CLAMP (L:45)
-
409407-14407 CLAMP (L:145)CLAMP (L:145)
-
509407-25401 CLAMP (L:235)CLAMP (L:235)
-
637110-14H00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
737112-24500 ...NUT...NUT
-
837142-19B00 ...MASCOT...MASCOT
-
937139-09D30 PLATE, CONTROL IDENTIFICATIONPLATE, CONTROL IDENTIFICATION
-
1037146-09D00 KEY, BLANK (TYPE:C) (OPT)KEY, BLANK (TYPE:C) (OPT)
-
1037146-09D10 KEY, BLANK (TYPE:D) (OPT)KEY, BLANK (TYPE:D) (OPT)
-
1037146-09D20 KEY, BLANK (TYPE:E) (OPT)KEY, BLANK (TYPE:E) (OPT)
-
1037146-09D30 KEY, BLANK (TYPE:F) (OPT)KEY, BLANK (TYPE:F) (OPT)
