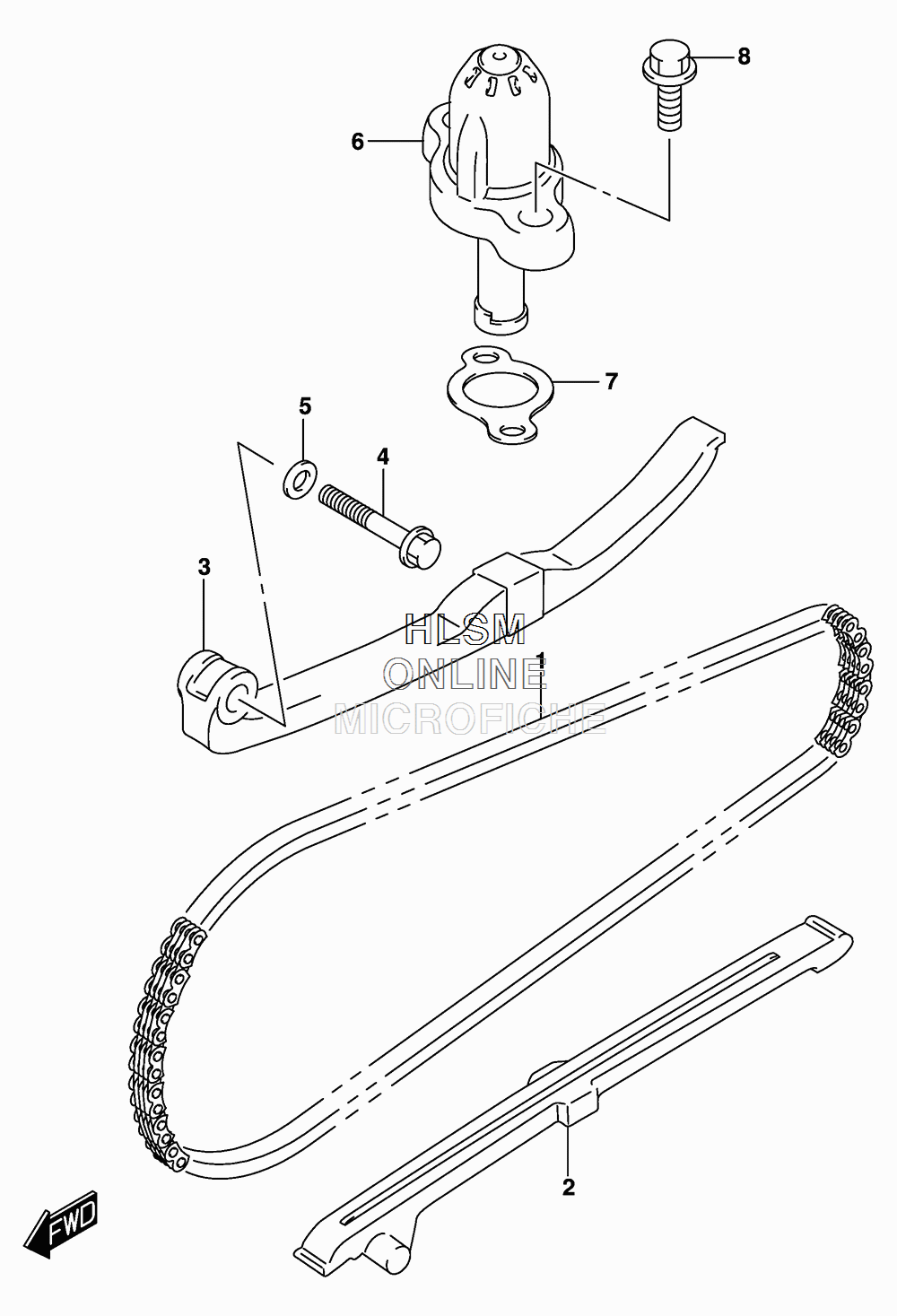

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DR-Z70 - 2016 года выпуска`
-
№АртикулНазвание
-
112760-02A00 CHAIN, CAMSHAFT DRIVE (D.I.D.25SH)CHAIN, CAMSHAFT DRIVE (D.I.D.25SH)
-
212771-02A20 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-09403 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
409103-06246 BOLT (6X30)BOLT (6X30)
-
509168-06004 GASKET (6.2X11X1.2)GASKET (6.2X11X1.2)
-
612830-32G02 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
712837-19B10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
801547-0620A BOLTBOLT
