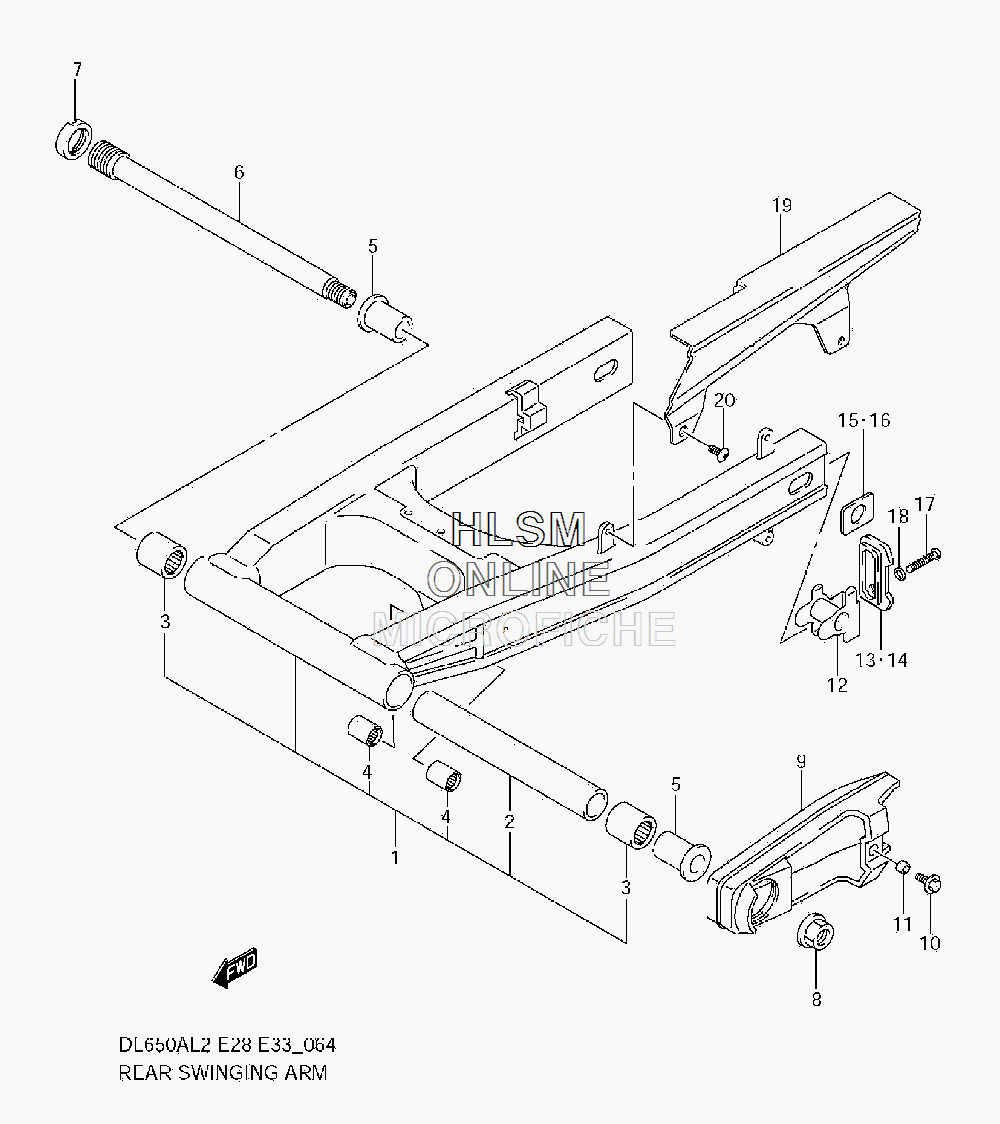

SUSPENSION - REAR SWING ARM для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска`
-
№АртикулНазвание
-
161000-27G30-YAP SWINGING ARM ASSY, REAR (INCL. 2-4) (BLACK)SWINGING ARM ASSY, REAR (INCL. 2-4) (BLACK)
-
209180-20118 SPACER (20.8X27.2X196.7)SPACER (20.8X27.2X196.7)
-
309263-25059 BEARING (25X33X35)BEARING (25X33X35)
-
409263-17037 BEARING (17X24X25)BEARING (17X24X25)
-
561251-31E00 SPACER, SWINGING ARMSPACER, SWINGING ARM
-
661211-06G00 SHAFT, RR SWINGING ARM PIVOTSHAFT, RR SWINGING ARM PIVOT
-
761214-19F10 NUT, PIVOT SHAFTNUT, PIVOT SHAFT
-
808319-3118A NUTNUT
-
961273-27G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1009116-06152 BOLT (6X20)BOLT (6X20)
-
1109180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1261410-03F00 ADJUSTER, CHAINADJUSTER, CHAIN
-
1361421-33D01 PLATE,CHAIN ADJUSTER GUIDE RIGHT HANDPLATE,CHAIN ADJUSTER GUIDE RIGHT HAND
-
1461422-33D01 PLATE,CHAIN ADJUSTER GUIDE LEFT HANDPLATE,CHAIN ADJUSTER GUIDE LEFT HAND
-
1564712-03F00 WASHER, CHAIN ADJUSTER RIGHT HANDWASHER, CHAIN ADJUSTER RIGHT HAND
-
1664713-03F00 WASHER, CHAIN ADJUSTER LEFT HANDWASHER, CHAIN ADJUSTER LEFT HAND
-
1709106-08119 BOLT (8X50)BOLT (8X50)
-
1809164-08015 WASHERWASHER
-
1961310-16G00 CASE, CHAINCASE, CHAIN
-
2009139-06083 SCREW (6X16)SCREW (6X16)
