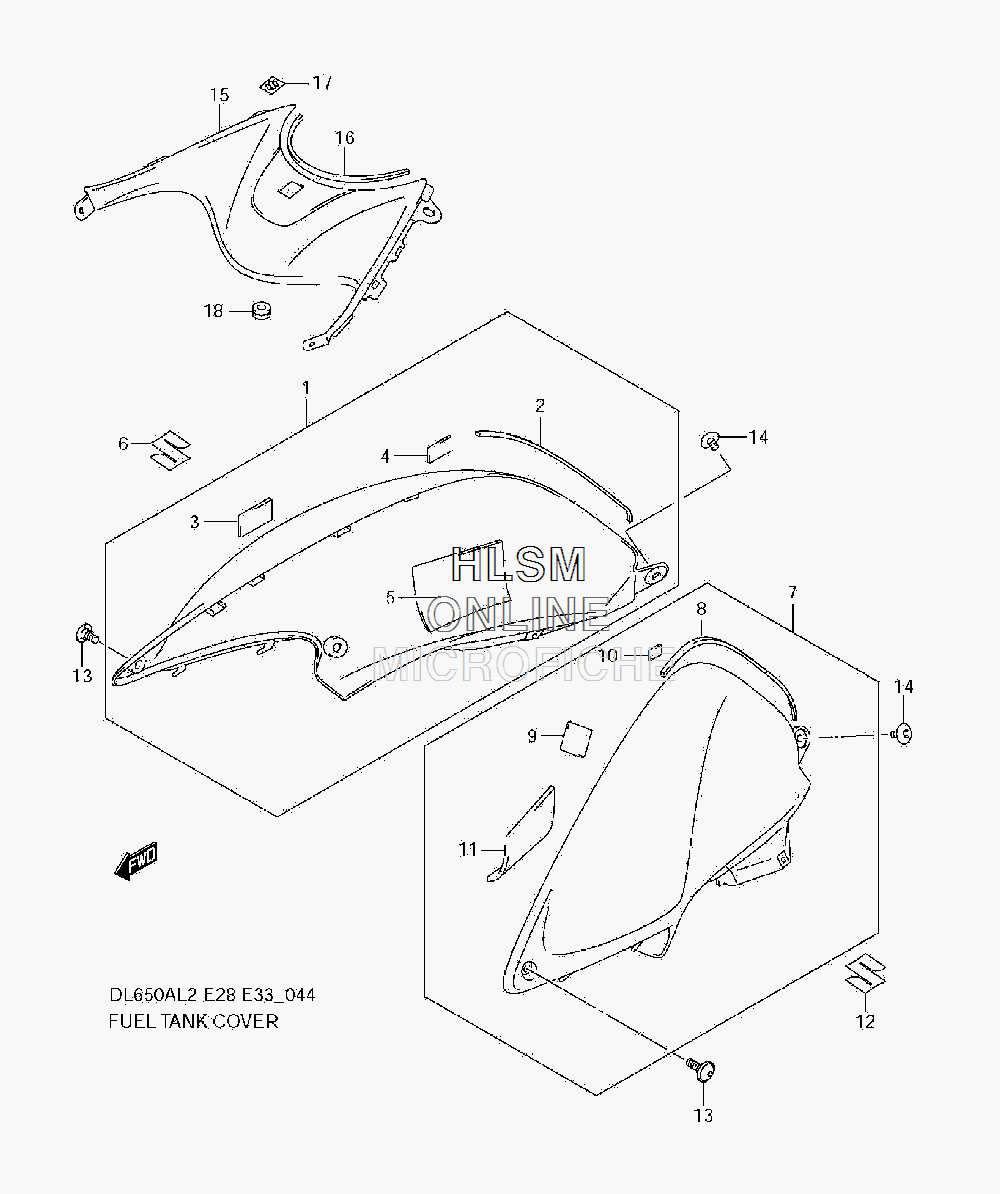

FUEL TANK COVER для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    44170-11J00-YPA COVER, SIDE RIGHT HAND (INCL. 2-5) (YPA - WHITE)
    COVER, SIDE RIGHT HAND (INCL. 2-5) (YPA - WHITE)
  • 1
    44170-11J00-YUK COVER, SIDE RIGHT HAND (INCL. 2-5) (YUK - ORANGE)
    COVER, SIDE RIGHT HAND (INCL. 2-5) (YUK - ORANGE)
  • 1
    44170-11J00-YVB COVER, SIDE RIGHT HAND (INCL. 2-5) (YVB - BLACK)
    COVER, SIDE RIGHT HAND (INCL. 2-5) (YVB - BLACK)
  • 2
    44277-37H00 CUSHION, SIDE COVER
    CUSHION, SIDE COVER
  • 3
    44572-13G00 FASTNER, FUEL TANK COVER
    FASTNER, FUEL TANK COVER
  • 4
    44572-44G00 FASTNER, FUEL TANK COVER
    FASTNER, FUEL TANK COVER
  • 5
    44278-11J00 CUSHION
    CUSHION
  • 6
    68111-18G20 EMBLEM, ''S''
    EMBLEM, ''S''
  • 7
    44180-11J00-YPA COVER, SIDE LEFT HAND (INCL. 8-11) (YPA - WHITE)
    COVER, SIDE LEFT HAND (INCL. 8-11) (YPA - WHITE)
  • 7
    44180-11J00-YUK COVER, SIDE LEFT HAND (INCL. 8-11) (YUK - ORANGE)
    COVER, SIDE LEFT HAND (INCL. 8-11) (YUK - ORANGE)
  • 7
    44180-11J00-YVB COVER, SIDE LEFT HAND (INCL. 8-11) (YVB - BLACK)
    COVER, SIDE LEFT HAND (INCL. 8-11) (YVB - BLACK)
  • 8
    44277-37H00 CUSHION, SIDE COVER
    CUSHION, SIDE COVER
  • 9
    44572-13G00 FASTNER, FUEL TANK COVER
    FASTNER, FUEL TANK COVER
  • 10
    44572-44G00 FASTNER, FUEL TANK COVER
    FASTNER, FUEL TANK COVER
  • 11
    44278-11J00 CUSHION
    CUSHION
  • 12
    68111-18G20 EMBLEM, ''S''
    EMBLEM, ''S''
  • 13
    09139-05064 SCREW (5X13)
    SCREW (5X13)
  • 14
    09139-06178 BOLT (6X8)
    BOLT (6X8)
  • 15
    44191-11J00 COVER, FUEL TANK FRONT
    COVER, FUEL TANK FRONT
  • 16
    44192-11J00 CUSHION,FUEL TANK FRONT COVER
    CUSHION,FUEL TANK FRONT COVER
  • 17
    68281-35F00 EMBLEM, ''S''
    EMBLEM, ''S''
  • 18
    09320-06504 CUSHION
    CUSHION
