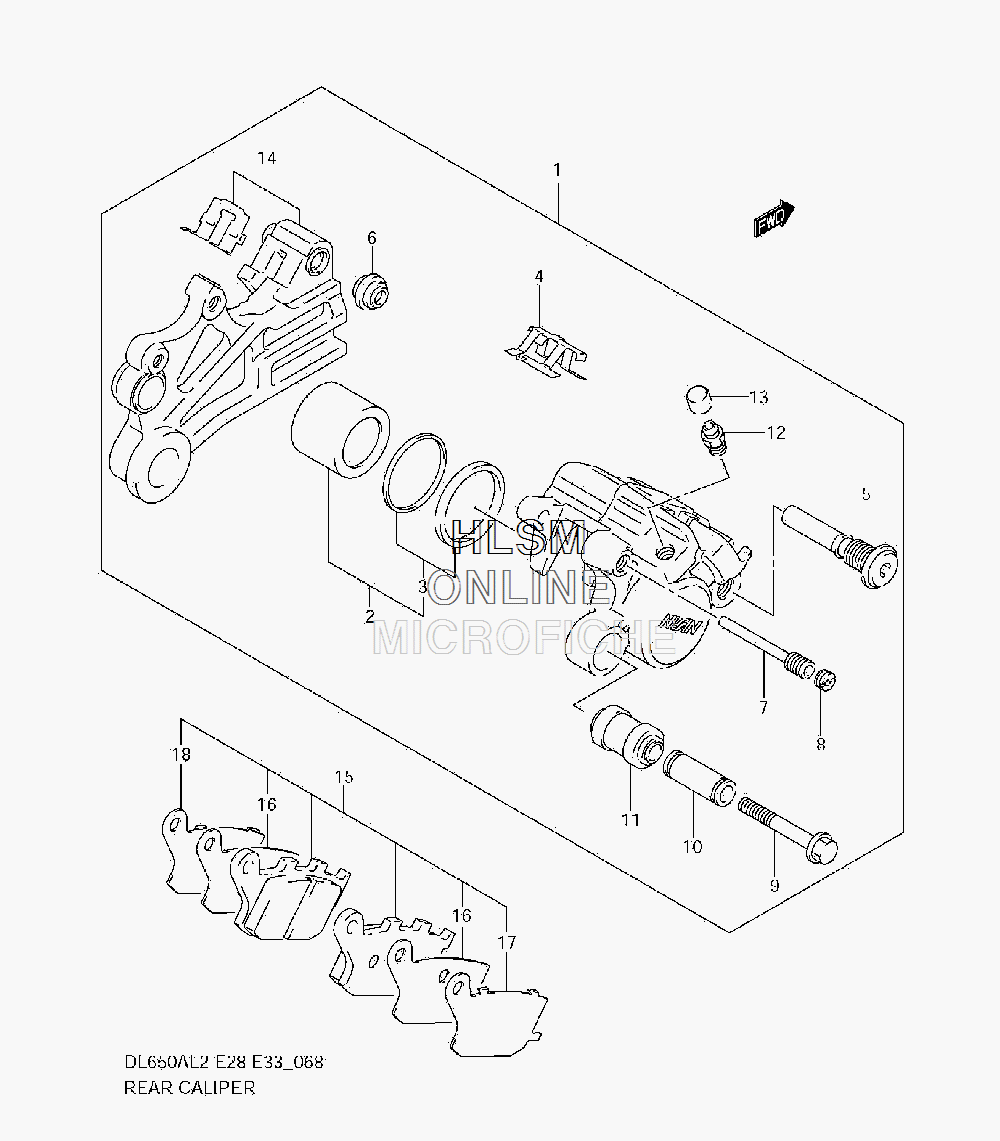

BRAKE - REAR CALIPER для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска`
-
№АртикулНазвание
-
169100-27G10-999 CALIPER ASSY, REAR (INCL. 2-14)CALIPER ASSY, REAR (INCL. 2-14)
-
269100-04810 PISTON SET (INCL. 3)PISTON SET (INCL. 3)
-
369100-04820 SEAL SET, PISTONSEAL SET, PISTON
-
469115-06G00 SPRING, PADSPRING, PAD
-
559305-36E00 PIN, BOLTPIN, BOLT
-
659303-14500 BOOTBOOT
-
769141-40F00 PIN, HANGERPIN, HANGER
-
859146-21E10 PLUGPLUG
-
969182-04F00 BOLTBOLT
-
1069185-04F00 SLEEVESLEEVE
-
1169186-04F00 BOOTBOOT
-
1259121-01A00 BLEEDERBLEEDER
-
1359122-46H00 CAPCAP
-
1469150-27G00 BRACKETBRACKET
-
1569100-06830 PAD AND RETAINER SET (INCL. 16, 17)PAD AND RETAINER SET (INCL. 16, 17)
-
1669132-06G00 INSULATORINSULATOR
-
1769133-06G00 RETAINERRETAINER
-
1869134-06G00 RETAINERRETAINER
