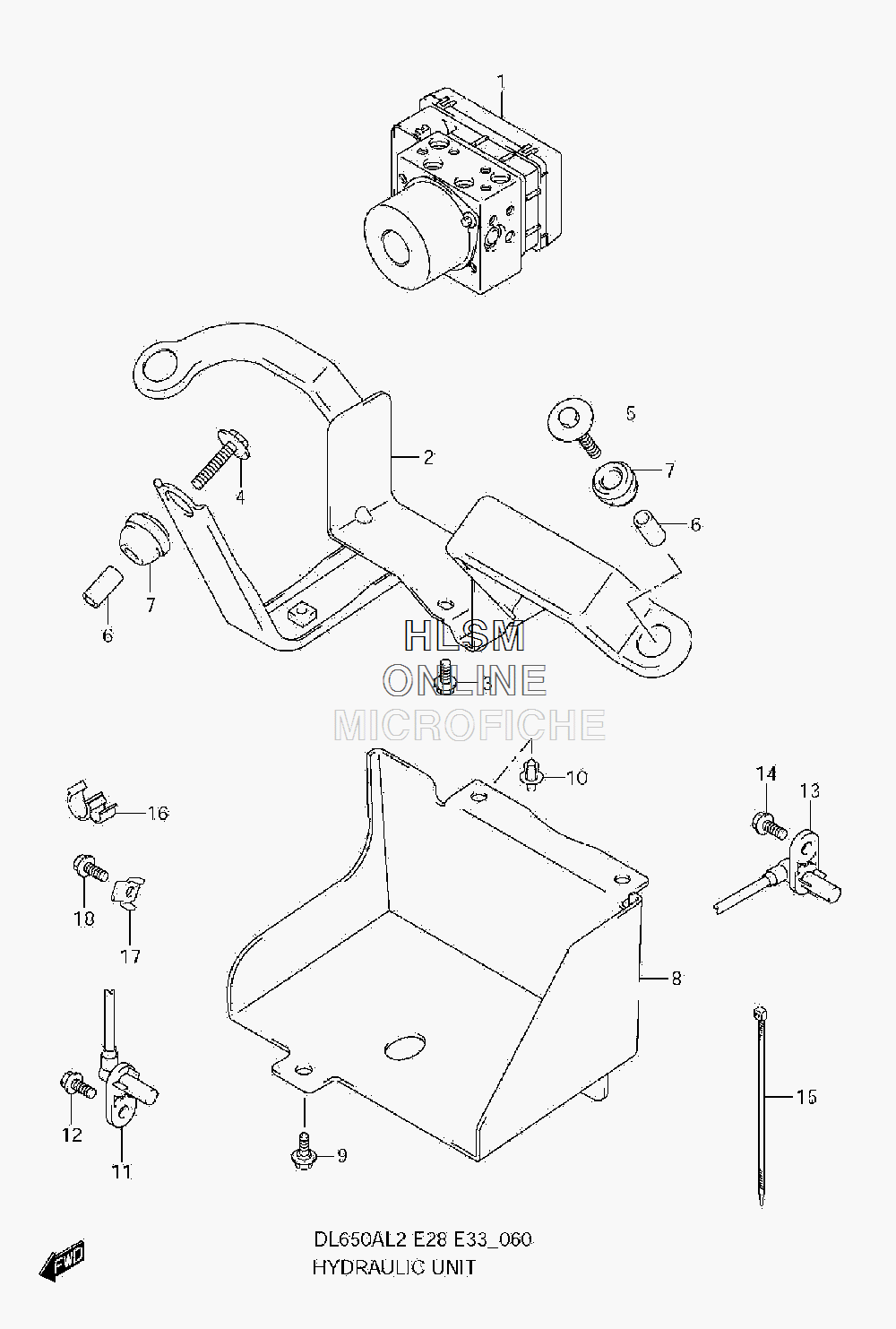

HYDRAULIC UNIT для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска
-
№АртикулНазвание
-
155610-11J00 UNIT ASSY, HYDRAULIC ABSUNIT ASSY, HYDRAULIC ABS
-
255660-11J00 HOLDER, HYDRAULIC UNIT ABSHOLDER, HYDRAULIC UNIT ABS
-
301550-0612A BOLTBOLT
-
409116-06171 BOLT (6X30)BOLT (6X30)
-
509116-06176 BOLT (6X37)BOLT (6X37)
-
609180-06296 SPACER (6.5X10X20)SPACER (6.5X10X20)
-
709320-10061 CUSHIONCUSHION
-
855667-27G10 COVER, HYDRAULIC UNITCOVER, HYDRAULIC UNIT
-
909111-06066 BOLT (6X16)BOLT (6X16)
-
1009409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
1155710-11J00 SENSOR, FRONT WHEEL ABSSENSOR, FRONT WHEEL ABS
-
1201550-0816A BOLTBOLT
-
1365710-11J00 SENSOR, REAR WHEEL ABSSENSOR, REAR WHEEL ABS
-
1401550-0816A BOLTBOLT
-
1509407-14407 CLAMP (L:145)CLAMP (L:145)
-
1609408-00266 CLAMPCLAMP
-
1734938-14F00 GUIDE, SENSOR LEADGUIDE, SENSOR LEAD
-
1801547-0612A BOLTBOLT
