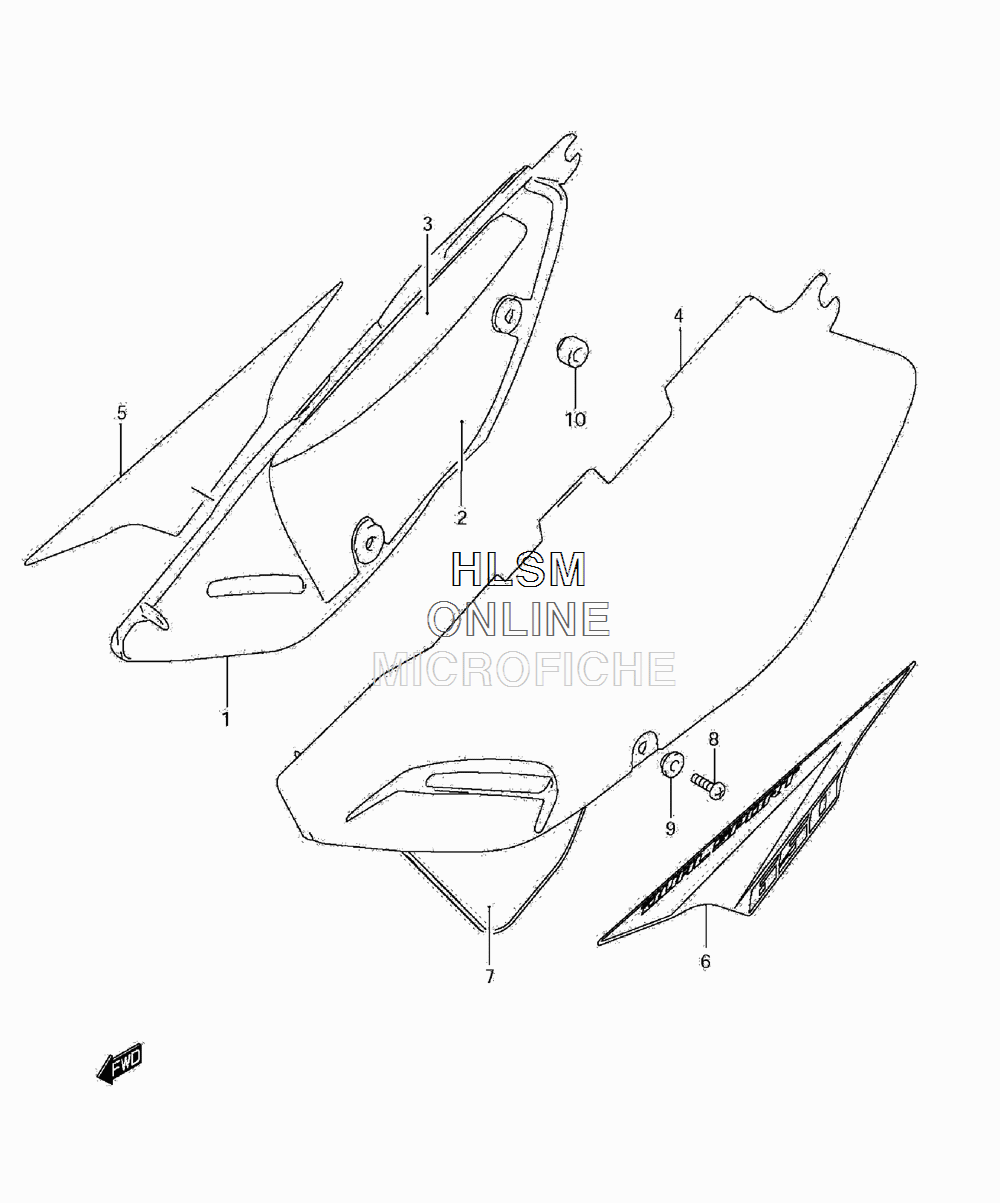

SIDE COVER для Suzuki DR-650SEL1 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-32E10-30H COVER, FRAME RIGHT HAND (WHITE) (30H)
    COVER, FRAME RIGHT HAND (WHITE) (30H)
  • 1
    47111-32E10-019 COVER, FRAME RIGHT HAND (BLACK) (019)
    COVER, FRAME RIGHT HAND (BLACK) (019)
  • 2
    47166-32E00 SHIELD, COVER LOWER RIGHT HAND
    SHIELD, COVER LOWER RIGHT HAND
  • 3
    47167-32E00 SHIELD, COVER UPPER RIGHT HAND
    SHIELD, COVER UPPER RIGHT HAND
  • 4
    47211-32E10-30H COVER, FRAME LEFT HAND (WHITE) (30H)
    COVER, FRAME LEFT HAND (WHITE) (30H)
  • 4
    47211-32E10-019 COVER, FRAME LEFT HAND (BLACK) (019)
    COVER, FRAME LEFT HAND (BLACK) (019)
  • 5
    68135-32E50-HLV TAPE, RIGHT HAND (FOR 019)
    TAPE, RIGHT HAND (FOR 019)
  • 5
    68135-32E50-HLW TAPE, RIGHT HAND (FOR 30H)
    TAPE, RIGHT HAND (FOR 30H)
  • 6
    68145-32E50-HLV TAPE, LEFT HAND (FOR 019)
    TAPE, LEFT HAND (FOR 019)
  • 6
    68145-32E50-HLW TAPE, LEFT HAND (FOR 30H)
    TAPE, LEFT HAND (FOR 30H)
  • 7
    68146-32E00 TAPE, NO.2, LEFT HAND
    TAPE, NO.2, LEFT HAND
  • 8
    02142-0616A SCREW
    SCREW
  • 9
    09169-06031 WASHER
    WASHER
  • 10
    09321-10019 CUSHION, MUFFLER
    CUSHION, MUFFLER
