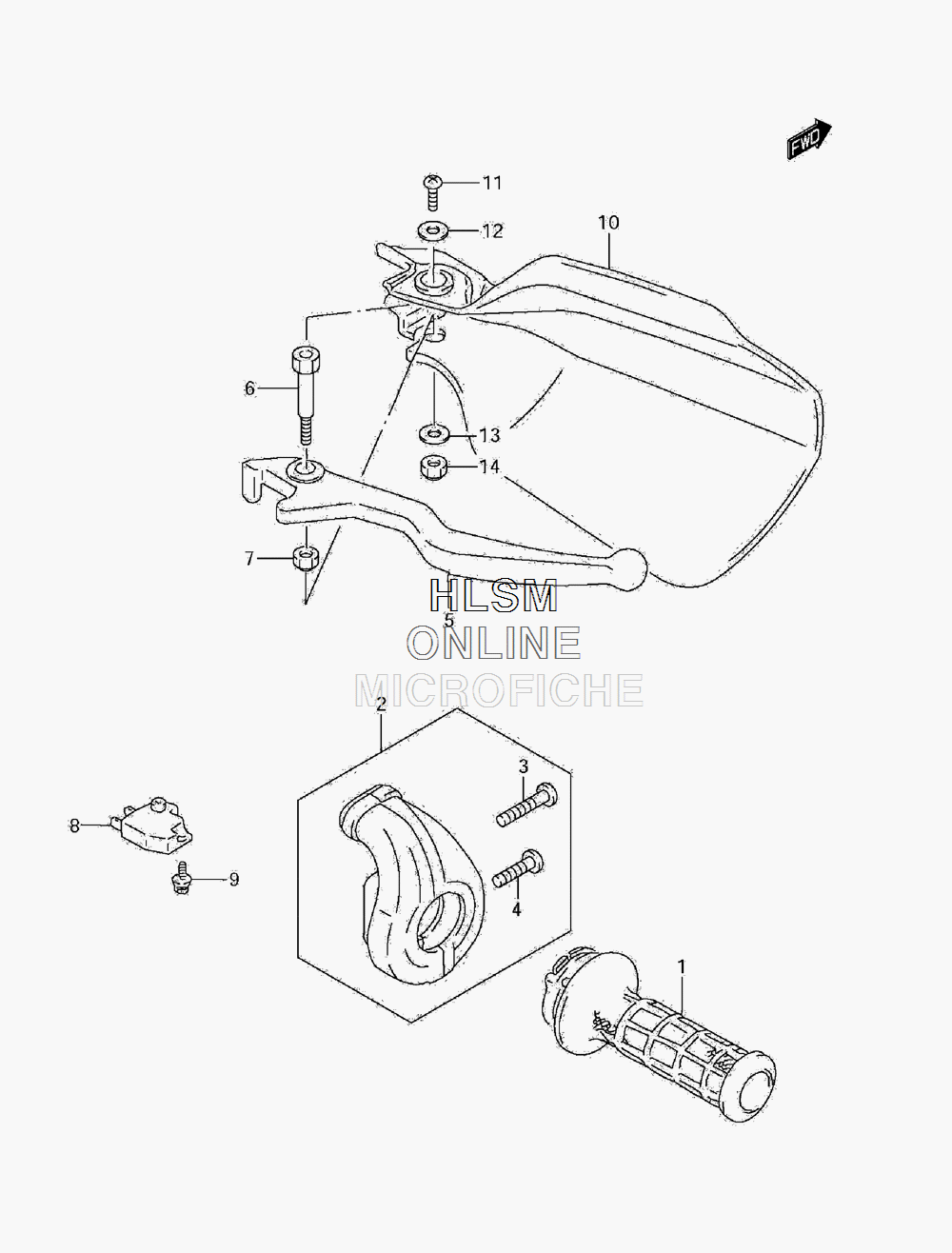

HANDLE LEVER - RIGHT для Suzuki DR-650SEL1 - 2011 года выпуска
-
№АртикулНазвание
-
157110-12D11 GRIP, THROTTLEGRIP, THROTTLE
-
257100-14D00 CASE ASSY, THROTTLE (INCL. 3-4)CASE ASSY, THROTTLE (INCL. 3-4)
-
309125-05066 SCREW (5X25)SCREW (5X25)
-
402112-0520B SCREWSCREW
-
557421-13001 LEVERLEVER
-
657431-05D00 BOLTBOLT
-
757433-09F00 NUTNUT
-
857460-17C11 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
957465-17C00 SCREWSCREW
-
1057341-05D10-019 COVER, KNUCKLE RIGHT HAND (BLACK) (019)COVER, KNUCKLE RIGHT HAND (BLACK) (019)
-
1057341-05D10-30H COVER, KNUCKLE RIGHT HAND (WHITE) (30H)COVER, KNUCKLE RIGHT HAND (WHITE) (30H)
-
1102142-0510B SCREWSCREW
-
1209160-05043 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
1309160-06130 WASHER (6.5X16X1.6)WASHER (6.5X16X1.6)
-
1408319-2106A NUTNUT
