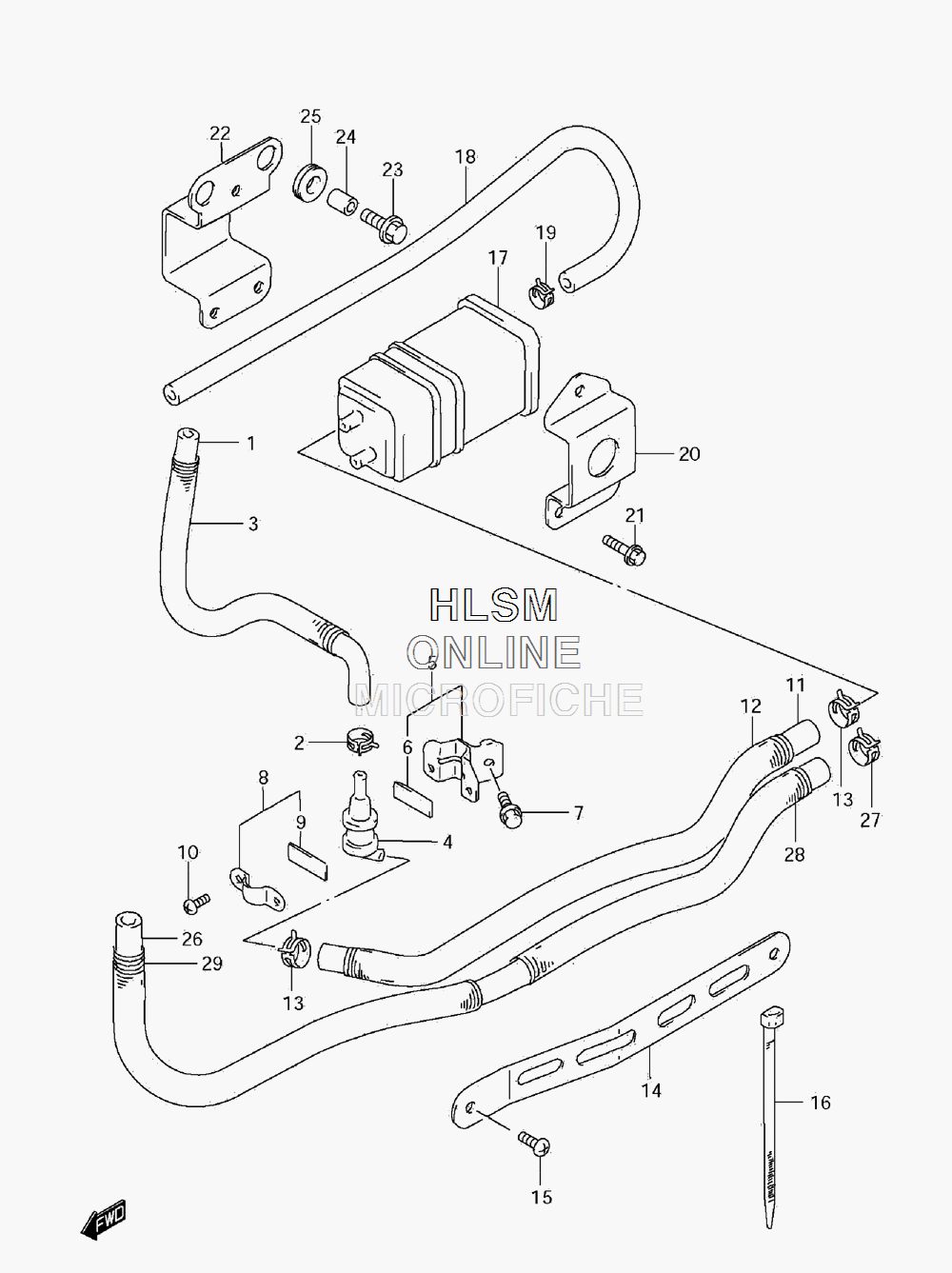

CANISTER для Suzuki DR-650SEL1 - 2011 года выпуска
-
№АртикулНазвание
-
144434-32EA0 HOSE, TANK AND VALVEHOSE, TANK AND VALVE
-
209401-11413 CLIPCLIP
-
309440-13012 SPRINGSPRING
-
444240-17C00 VALVE, BREATHERVALVE, BREATHER
-
544890-32E00 BRACKET, BREATHER VALVEBRACKET, BREATHER VALVE
-
644894-24A00 CUSHIONCUSHION
-
701550-0612B BOLTBOLT
-
844892-24A00 CLAMP, VALVE (INC 9)CLAMP, VALVE (INC 9)
-
944894-24A00 CUSHIONCUSHION
-
1002112-0408B SCREWSCREW
-
1144435-32EA0 HOSE, VALVE AND CANISTERHOSE, VALVE AND CANISTER
-
1209440-13043 SPRINGSPRING
-
1309401-11413 CLIPCLIP
-
1444945-32E00 PLATE, CANISTER HOSEPLATE, CANISTER HOSE
-
1502142-0612B SCREWSCREW
-
1609407-14403 CLAMP (L:125)CLAMP (L:125)
-
1717210-14A00 CANISTERCANISTER
-
1809355-70125-600 HOSE (7X12X600) L:600>320HOSE (7X12X600) L:600>320
-
1909401-11415 CLIPCLIP
-
2044921-32E00 PLATE, CANISTER OUTERPLATE, CANISTER OUTER
-
2101550-0612B BOLTBOLT
-
2244930-32E00 PLATE, CANISTER INNERPLATE, CANISTER INNER
-
2309116-06167 BOLT (6X20)BOLT (6X20)
-
2409180-06286 SPACER (6.5X10X9.4)SPACER (6.5X10X9.4)
-
2509320-10015 CUSHIONCUSHION
-
2644436-32EA0 HOSE, CANISTER AND CARBHOSE, CANISTER AND CARB
-
2709401-11413 CLIPCLIP
-
2809440-13043 SPRING, NO.1SPRING, NO.1
-
2909440-13053 SPRING, NO.2SPRING, NO.2
